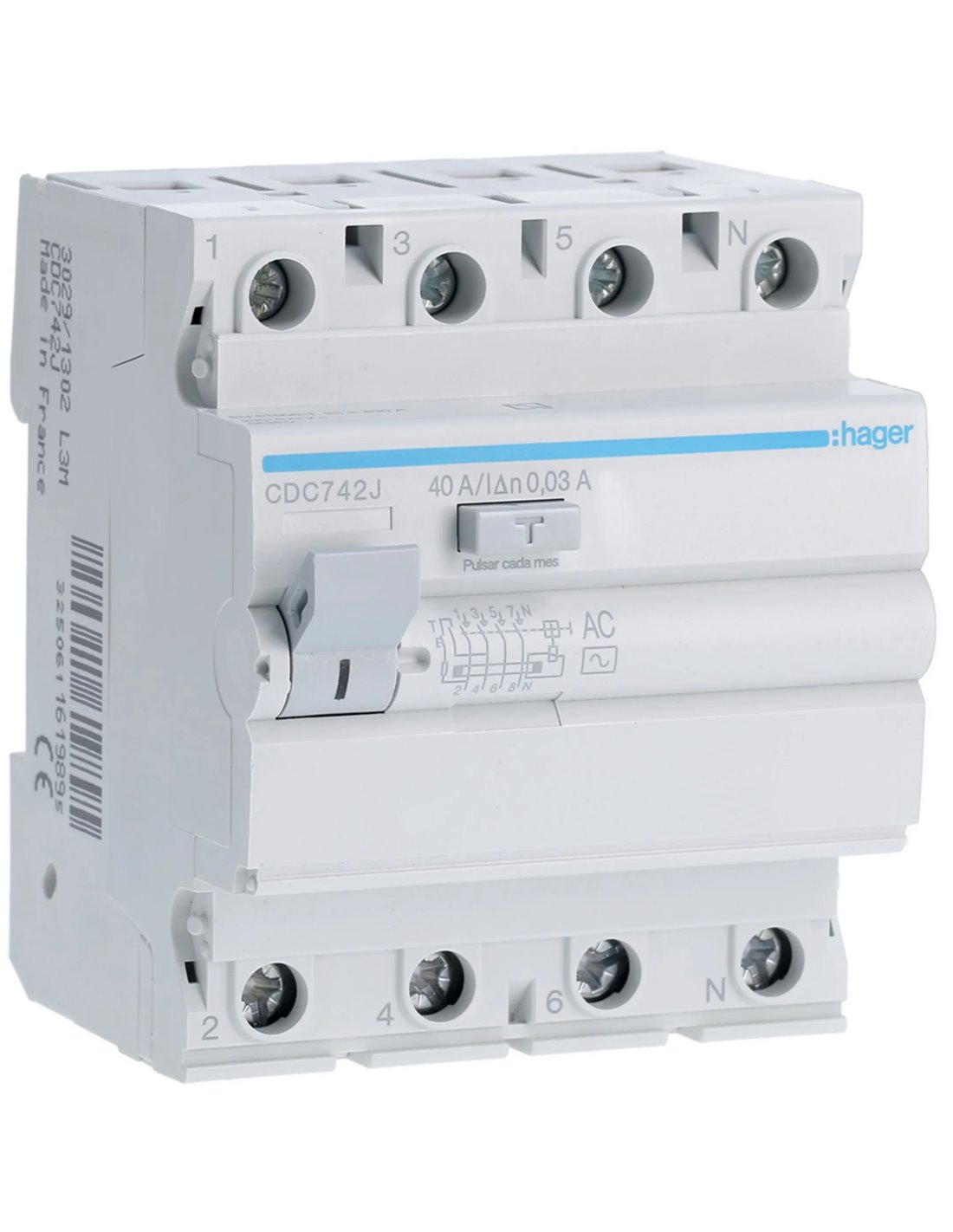

4-module differential switch (40A 30mA 230/400V) suitable for IP20 DIN rail 8,3x7x7cm

Name: 4-module differential switch (40A 30mA 230/400V) suitable for IP20 DIN rail 8,3x7x7cm
Brand: HAGER
SKU: HAGER CDC742J
Price: 871.12 EUR
Availability: InStock

Reference HAGER CDC742J

Available

€871.12

VAT included

4-module residual current circuit breaker, ideal for DIN rail electrical installations. With a nominal current of 40A and sensitivity of 30mA, this device guarantees adequate protection in 230/400V systems. Its compact and functional design adapts to various applications, ensuring quality and safety.

Making and breaking capacity ldm: 0.63 kA
Conditional rated short-circuit current: 6 kA according to EN61008-1
Rated insulation voltage (Ui): 500V
Voltage surge withstand (Uimp): 4000V
Operating temperature: -25 to 40°C
Dimensions: 8.3x7x7 cm
Protection degree: IP20
Connection section: 16mm² flexible, 25mm² rigid

In stock 22 Items

Email address

Description

The 4-module RCD is an essential device for electrical protection in building installations. With a rated current of 40A and an adjustable sensitivity of 30mA, this switch is suitable for voltages of 230/400V AC. Its compact design allows easy installation on DIN rails, and its IP20 protection degree ensures safe operation in indoor environments.

Dimensions: 8.3 x 7 x 7 cm
Making and breaking capacity ldm: 0.63 kA
Conditional rated short-circuit current Inc according to EN61008-1: 6 kA
Rated insulation voltage (Ui): 500V
Rated voltage peak withstand (Uimp): 4000V
Connection section on flexible cable: 16mm²
Connection section on rigid cable: 25mm²
Operating temperature: -25 to 40°C
AC differential
Colour: Grey/Blue

Product Details

Frequency: 50
High: 8,3cm
Rated current (A): 40
Width: 7cm
Colour: Blue
Grey
Sensitivity: 30 mA
Measures: 8,3x7x7cm
Weight (kg): 0,25
Power (W): 6,5
Depth: 7cm
Protection: IP20
Reference: HAGER CDC742J
Nominal voltage (V): 230V
380V
440
500V
4000
Current type: AC
