TRIP UNIT NSX630 AC 4P4D 630A 2.3
TRIP UNIT NSX630 AC 4P4D 630A 2.3

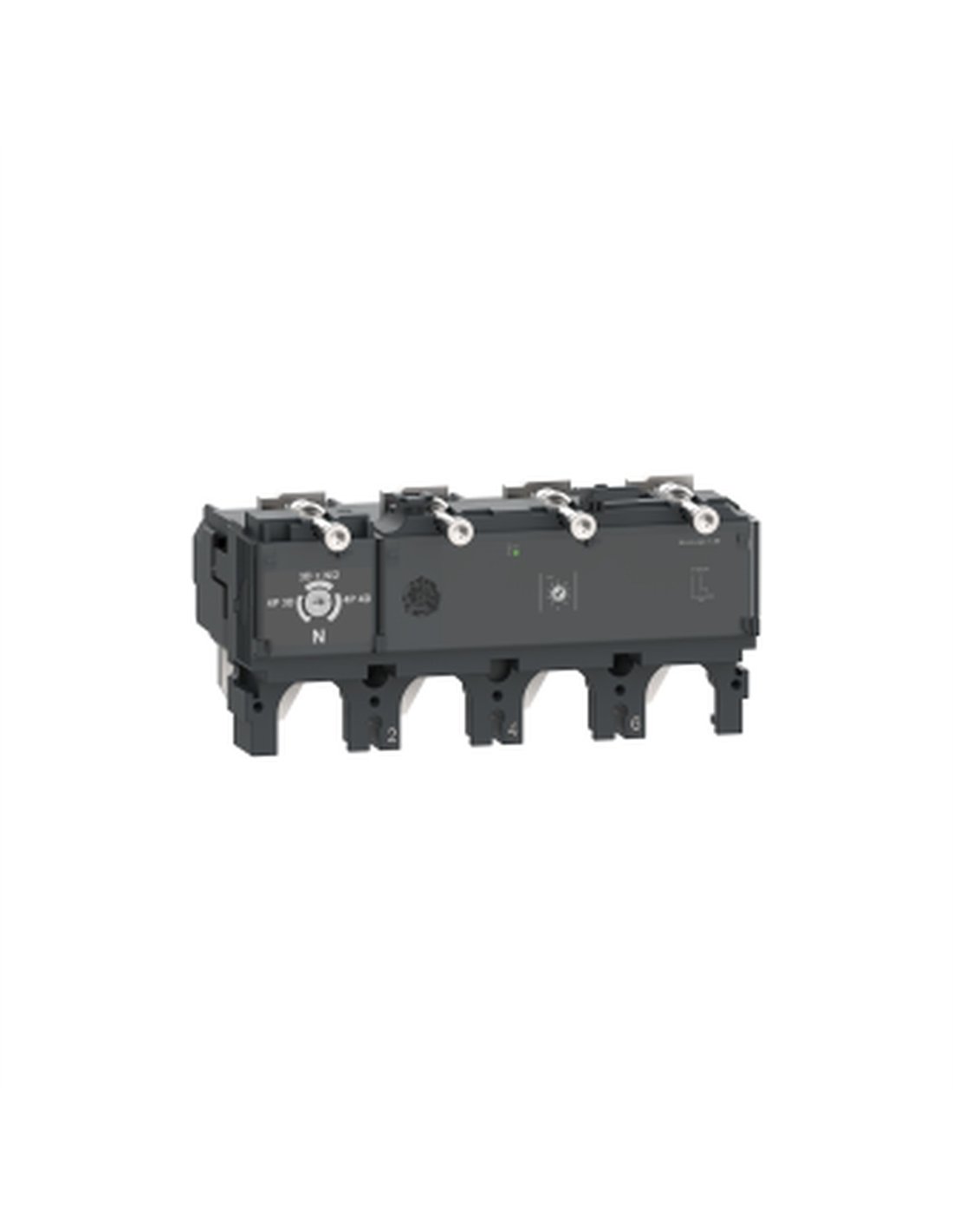

Compact trip unit NSX630 630A 4P4D, adjustable from 250...630 A, IP40, electronic technology

IMPO C6342D630
Available
€658.34
VAT included
The ComPacT NSX630 AC 4P4D 630A 2.3 trip unit provides advanced electronic protection for industrial applications. Its design allows for precise protection settings and operates over a wide temperature range, ensuring reliability and safety under diverse operating conditions.
100 Items

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

Description

The TRIP UNIT NSX630 AC 4P4D 630A 2.3 is a state-of-the-art control device designed for industrial applications that require efficient management of electrical current. This device is part of the ComPacT NSX range, offering advanced solutions for the protection and control of electrical circuits.

  • Range: ComPacT next generation
  • Product type: Trip unit
  • Control unit: Micrologic 2.3
  • Tripping technology: Electronic
  • Compatibility: Compact NS NSX630
  • Rated current: 630 A at 40 °C
  • Rated voltage: 690 V AC, 50/60 Hz
  • Number of poles: 4P (3R + N/2, 4R, 3R)
  • Protection functions: LSoI, overload, short circuits
  • Long-term detection adjustment range: 250...630 A
  • Thermal memory: 20 minutes before and after
  • Protection rating: IP40 according to IEC 60529
  • Operating temperature: -25…70 °C

Product Details

EAN 3606482003279
Reference IMPO C6342D630
