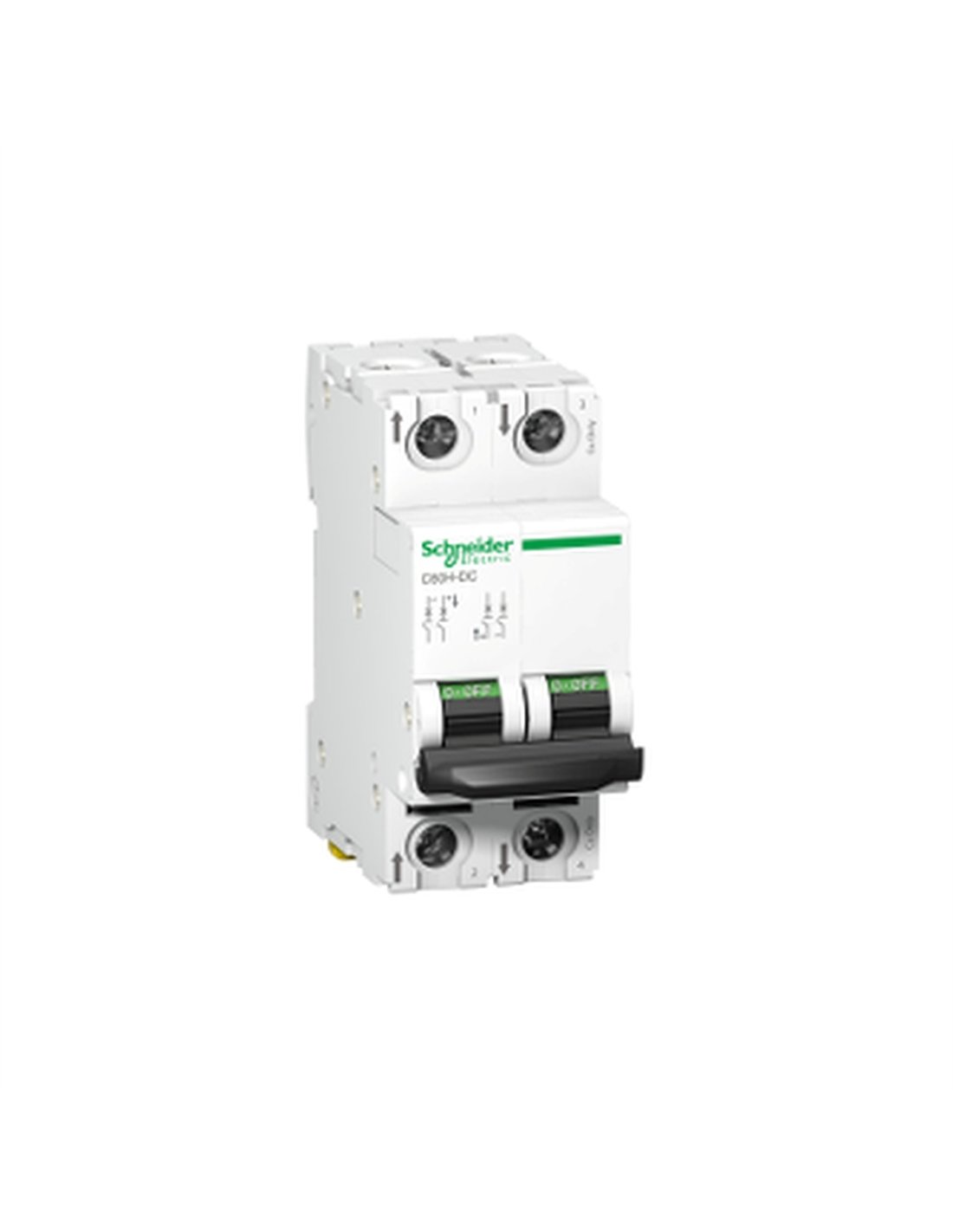

ACTI C60 automatic circuit breaker 9, 63A, 500Vdc, 2 poles, thermal-magnetic.

The C60H-DC 2P 63A C 500Vdc miniature circuit breaker from the Acti 9 range is a reliable and efficient solution for the protection of direct current circuits. Designed for applications with currents above 0.1 A, this device features two protected poles and a rated current of 63 A at 25 °C, ensuring optimal performance under various operating conditions. The C60H-DC utilizes thermal-magnetic trip technology, enabling it to offer a breaking capacity of up to 20 kA at 220 V and 250 V, and 6 kA at 500 V, complying with HB1 and EN> 50 A standards. Its robust design includes a contact position indicator and a locking system in the off position, ensuring safe and easy operation. This circuit breaker is suitable for a wide range of applications, including small commercial and residential environments, and can be permanently mounted on a symmetrical 35 mm DIN rail. With a mechanical durability of 20,000 cycles and an electrical durability of up to 6,000 cycles at 500 V, the C60H-DC is a durable and efficient option.

• Rated current: 63 A at 25 °C
• Number of poles: 2P
• Rated operating voltage: 500 V DC
• Breaking capacity: 20 kA at 220 V and 250 V
• Mechanical durability: 20,000 cycles
• Electrical durability: 6,000 cycles at 500 V
• Mounting: 35 mm symmetrical DIN rail
• Operating temperature: -25 to 70 °C
• Contamination degree: 3
• Padlock ready: Yes
