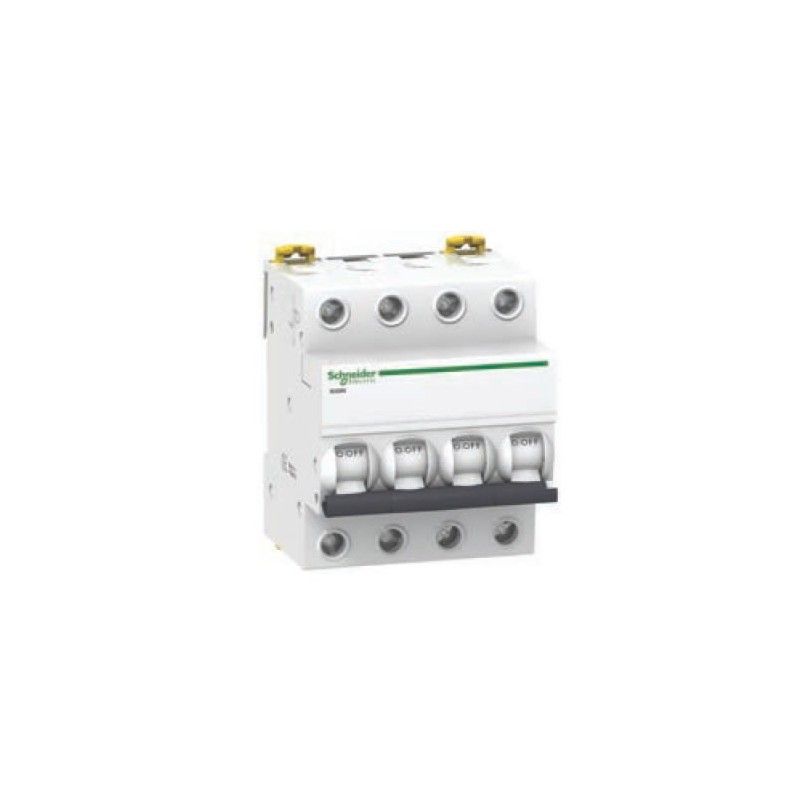

Interruptor automático 4P 20A TERCIARIO Schneider A9F79420

Circuit breaker 4P 20A TERTIARY Schneider A9F79420

Interruptor automático 4P 20A TERCIARIO Schneider A9F79420

Circuit breaker 4P 20A TERTIARY Schneider A9F79420

Circuit breaker 4P 20A TERTIARY Schneider A9F79420

Available In stock 84 Items

Reference SCHNEIDER A9F79420

€75.73

VAT included

Email address

Envío gratis Península desde 50€
Devoluciones
Pago seguro
Garantía

Breaker 20A 4P

tertiary range

Description

Interruptor automático 4P 20A TERCIARIO Schneider A9F79420

Poder de corte 6000A Curva C
Tensión de empleo 230/400 V CA
Corte plenamente aparente: banda verde en la maneta
Tensión aislamiento 500V CA
Grado polución 3
Tensión impulsional 6Kv
Ancho por polo: 2 pasos de 9 mm

Product Details

Eléctrico

Nominal voltage (V)	230V
Rated current (A)	20

Otras

Curve	C
EAN	3606480093425
Manufacturer	Schneider
Range	Terciario
No. of poles	4P
Reference	SCHNEIDER A9F79420

Información legal

Fabricante	Schneider Electric España, S.A.
Dirección	Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona, ES
Email	[email protected]
Teléfono	+34 930289900
Referencia	SCHNEIDER A9F79420
EAN	3606480093425

In stock 84 Items

Downloads

Product sheet Store PDF Download

Reviews (0)

No reviews
