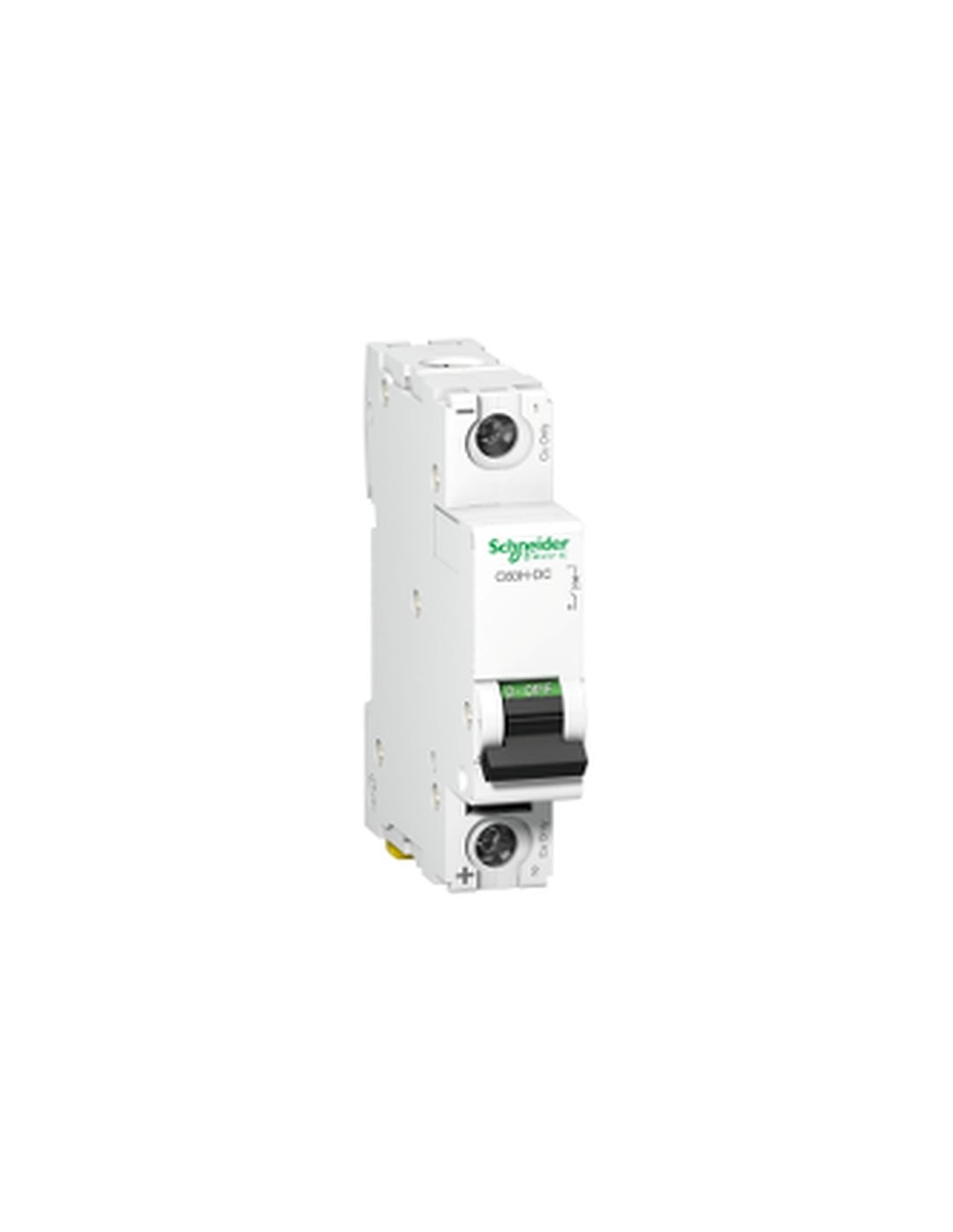

ACTI 9 2 A 250 Vdc 1P 10 kA miniature circuit breaker

The C60H-DC miniature circuit breaker from the Acti 9 range is a reliable and efficient solution for DC circuit protection. Designed for applications with currents above 0.1 A, this device features a single pole and a rated current of 2 A at 25 °C, making it an ideal choice for residential and small commercial environments.

The C60H-DC utilizes thermal-magnetic trip technology, ensuring a fast response to overloads and short circuits. Its breaking capacity is remarkable, reaching up to 20 kA Icu at 110 V and 10 kA Icu at 220 V, ensuring robust protection under various operating conditions.

Technical characteristics include:

• Main frequency: 50/60 Hz
• Nominal operating voltage: 250 V DC
• Breaking capacity in service: up to 15 kA at 110 V
• Nominal insulation voltage: 500 V DC
• Mechanical durability: 20,000 cycles
• Electrical durability: 6,000 cycles at 250 V
• Operating ambient temperature: -25…70 °C
• Padlockable in position O
• Pollution degree: 3
• Maximum operating altitude: 2000 m

The C60H-DC is compatible with accessories from the C60 range, allowing for easy integration into existing systems.
