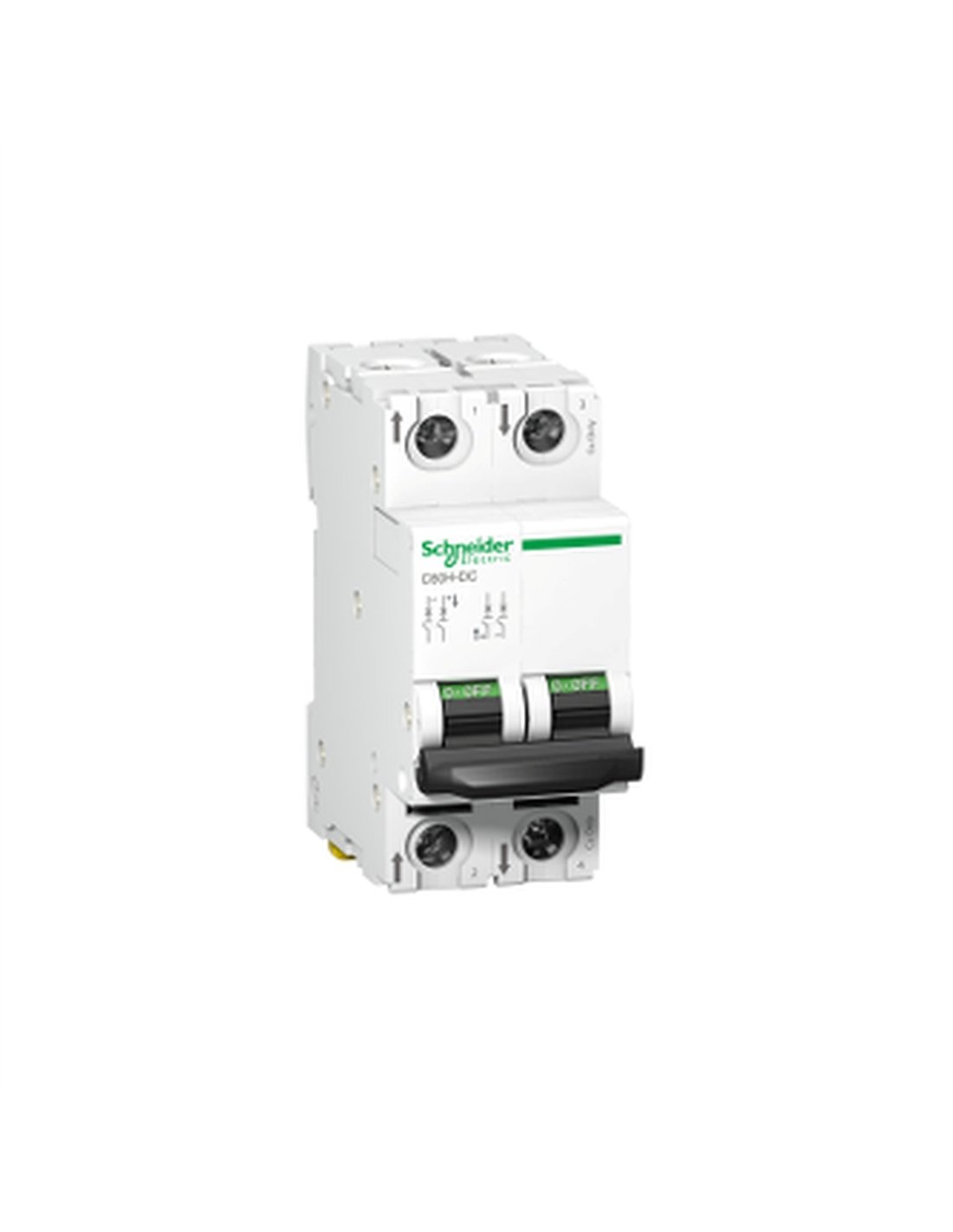

SCHNEIDER C60 3A 500Vdc 2-pole thermal-magnetic circuit breaker

The C60H-DC 2P 3A C 500Vdc miniature circuit breaker, part of the Acti 9 range, is a reliable solution for protecting DC circuits. Designed for applications with currents above 0.1 A, this device features two protected poles and a rated current of 3 A at 25 °C. Its thermal-magnetic trip technology ensures a fast response to overloads and short circuits, while its C-curve rating allows for adequate protection under various operating conditions.

With a breaking capacity of up to 20 kA at 220 V and 250 V, and 6 kA at 500 V, the C60H-DC ensures a high level of safety and reliability.

• Number of poles: 2P
• Rated current: 3 A at 25 °C
• Rated operating voltage: 500 V DC
• Breaking capacity: 10 kA Icu at 440 V
• Electrical durability: 6000 cycles at 500 V
• Operating temperature: -25…70 °C
• Polluting class: 3
• Padlockable in position O
• Compatibility: C60 accessories
• Weight: 0.256 kg
