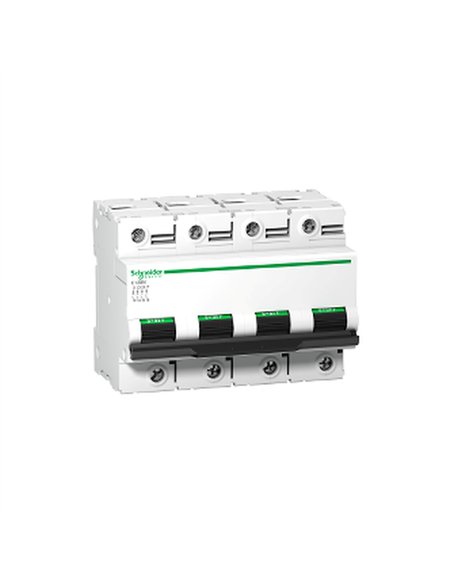

SCHNEIDER ACTI 9 100A 4P 10000A 415V Dardo Plus Miniature Circuit Breaker

The Dardo Plus C120N miniature circuit breaker, part of the Acti 9 series, is an advanced solution for protecting electrical circuits in residential and small commercial applications. Designed to handle currents above 0.1 A, this device features four poles and a rated current of 100 A at 30 °C, making it a reliable choice for various electrical configurations.

The C120N utilizes thermal-magnetic tripping technology, ensuring a fast response to overloads and short circuits. Its breaking capacity reaches up to 10,000 A under 230–400 V AC conditions, complying with EN/IEC 60898-1 standards.

Technical features include:

• Maintenance frequency: 50/60 Hz
• Rated operating voltage: 380...415 V AC
• Electrical durability: 5000 cycles
• Protection rating: IP20
• Operating temperature: -25…70 °C
• Height: 81 mm
• Weight: 0.82 kg
• Mounting: 35 mm symmetrical DIN rail
• Connections: Type terminals tunnel
• Limitation class: 3 according to Icu

The C120N is a robust and efficient option to ensure electrical safety in your environment.
