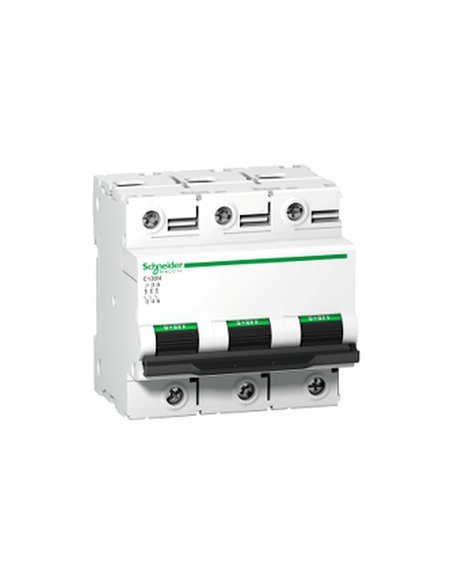

C120N 3P 100A D 10000A 415V MINIATURE CI
C120N 3P 100A D 10000A 415V MINIATURE CI

SCHNEIDER ACTI 9 100A 3P 10000A 415V Dardo Plus Miniature Circuit Breaker

IMPO A9N18388
Available
€188.00
VAT included
The Dardo Plus Acti 9 C120N miniature circuit breaker. With 3 poles and a rated current of 100 A, it offers thermal-magnetic protection and a breaking capacity of up to 10,000 A. Ideal for residential and small commercial applications.
10 Items

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

Description

The C120N 3P 100A D 10000A 415V MINIATURE CI is a miniature circuit breaker from the Dardo Plus range, designed for applications requiring a current above 0.1 A. This device belongs to the renowned Acti 9 range and offers an efficient and safe solution for the protection of electrical circuits in residential and small commercial environments.

With a 3P pole configuration and a rated current of 100 A at 30 °C, the C120N is ideal for alternating current (AC) networks. Its thermal-magnetic trip unit technology and D-curve code ensure a fast response to overloads and short circuits.

The 10,000 A Icn breaking capacity at 230–400 V AC 50/60 Hz, in accordance with EN/IEC 60898-1, ensures robust protection under various operating conditions. This circuit breaker features a compact design, with dimensions of 81 mm in height, 81 mm in width, and 73 mm in depth, and a weight of 0.615 kg. Installation is simple thanks to the symmetrical 35 mm DIN rail mounting bracket and its lever-operated control. It also includes a contact position indicator and local markings for ease of use.

  • Rated current: 100 A at 30 °C
  • Breaking capacity: 10,000 A Icn
  • Main frequency: 50/60 Hz
  • Rated insulation voltage: 500 V AC
  • Electrical durability: 5,000 cycles
  • Protection rating: IP20
  • Operating temperature: -25…70 °C
  • Maximum operating altitude: 2000 m
  • Connections: Tunnel-type terminals
  • Limitation class: 3

Product Details

Rated current (A)
100 A
Curve
D
EAN
3606480379598
Manufacturer
SCHNEIDER
No. of poles
3P
Reference
SCHNEIDER A9N18388
GPSR Safety warning
No
GPSR Manufacturer information
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer
[email protected]
