AUTOMATICO 2P 10A D 10KA

AUTOMATICO 2P 10A D 10KA

AUTOMATICO 2P 10A D 10KA

AUTOMATICO 2P 10A D 10KA

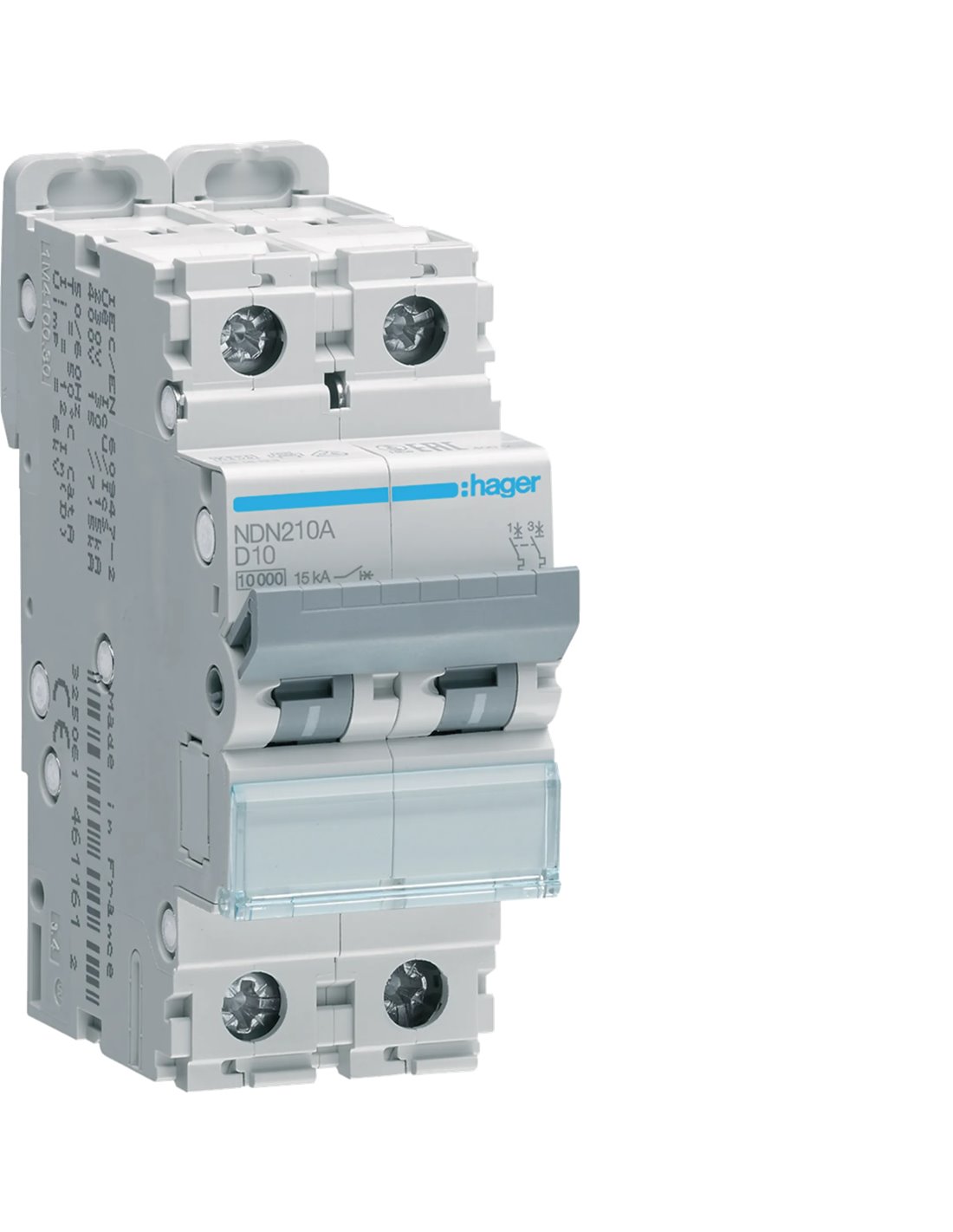

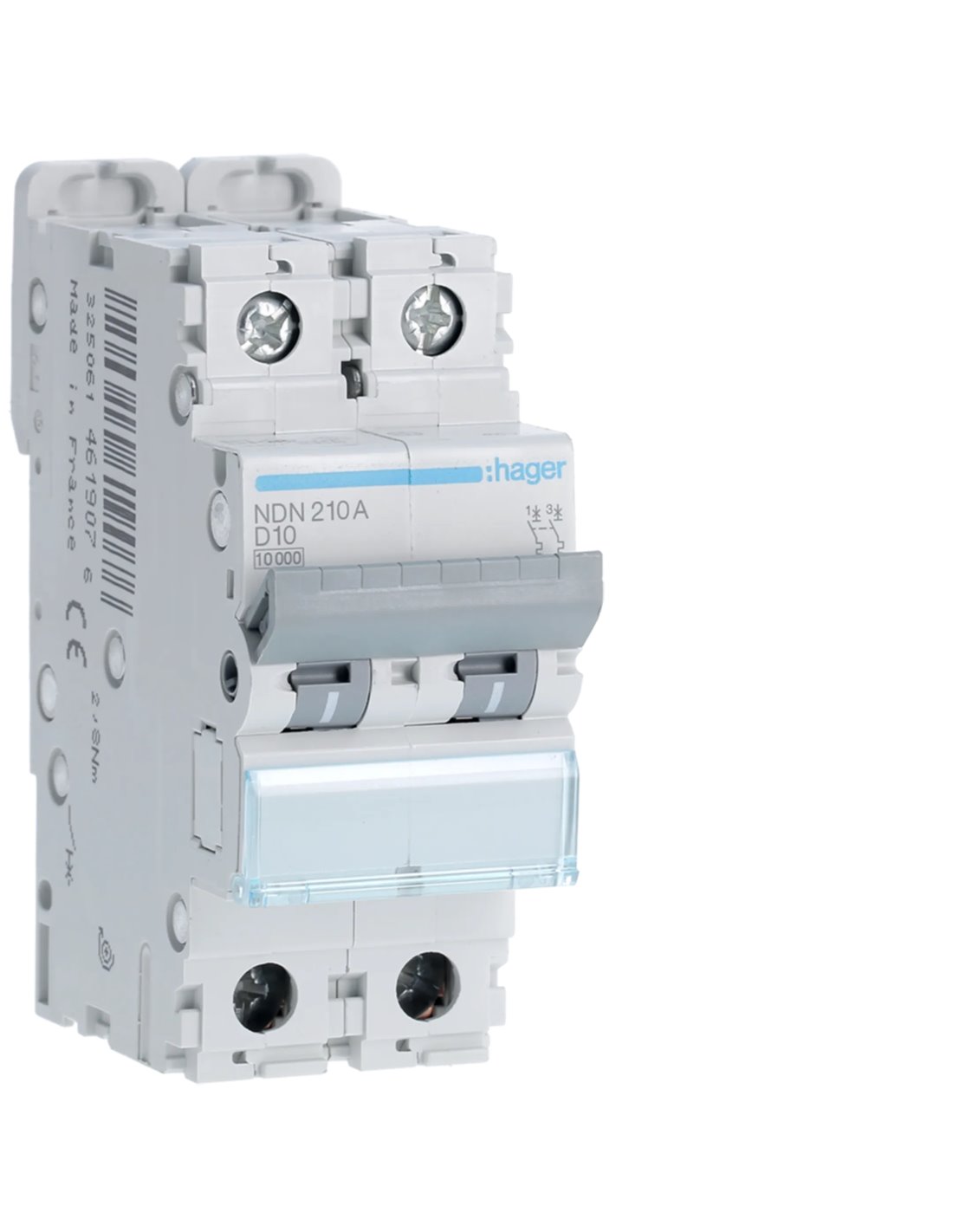

“N” series thermal-magnetic automatic switch with 2 modules (4.13W 10A 10/15kA) IP20 8,3x3,5x7cm

Reference HAGER NDN210A

Available

€130.55

VAT included

The N series thermal-magnetic circuit breaker is a reliable and efficient device, designed to protect electrical circuits. With an innovative and functional design, this switch is ideal for various applications.

Model: 2P thermal-magnetic circuit breaker
Rated current: 10A
Voltage: 415V AC 50/60Hz
Breaking capacity: 10kA
Dimensions: 83x35mm
Protection degree: IP20
Operating temperature: -25 to 60°C
Tightening torque: 2.8 Nm
Color: Grey/Blue

In stock 13 Items

Email address

Description

The “N” series thermal-magnetic circuit breaker is a device designed to offer protection and functionality in electrical installations. With an innovative and timeless design, this switch is ideal for applications requiring a high level of safety and efficiency. Its robust construction and technical features make it a reliable option for controlling electrical circuits.

Model: 2P thermal-magnetic automatic switch
Nominal current: 10A
Voltage: 415V AC 50/60Hz
Cutting capacity: 10kA
Curve: D
Tightening torque: 2.8Nm
Dimensions: 83x35mm (8.3x3.5x7cm)
Protection degree: IP20
Operating temperature: -25 to 60°C
Color: Gray/Blue
Power: 4.13W
Series: N
Additional features: Variety of products with different technical specifications

Product Details

Frequency: 50
60
High: 8,3cm
Rated current (A): 10
Width: 3,5cm
Colour: Blue
Grey
Measures: 8,3x3,5x7cm
Weight (kg): 0,16
Power (W): 4,13
Depth: 7cm
Protection: IP20
Reference: HAGER NDN210A
Nominal voltage (V): 380V
500V
6000
GPSR Safety warning: No
GPSR Manufacturer information: HAGER / France / 132 Boulevard d'Europe, 67215 Obernai, France / [email protected] / +33 388495050
GPSR EU responsible person: HAGER / France / 132 Boulevard d'Europe, 67215 Obernai, France / [email protected] / +33 388495050
GPSR e-mail manufacturer: [email protected]

In stock 13 Items
