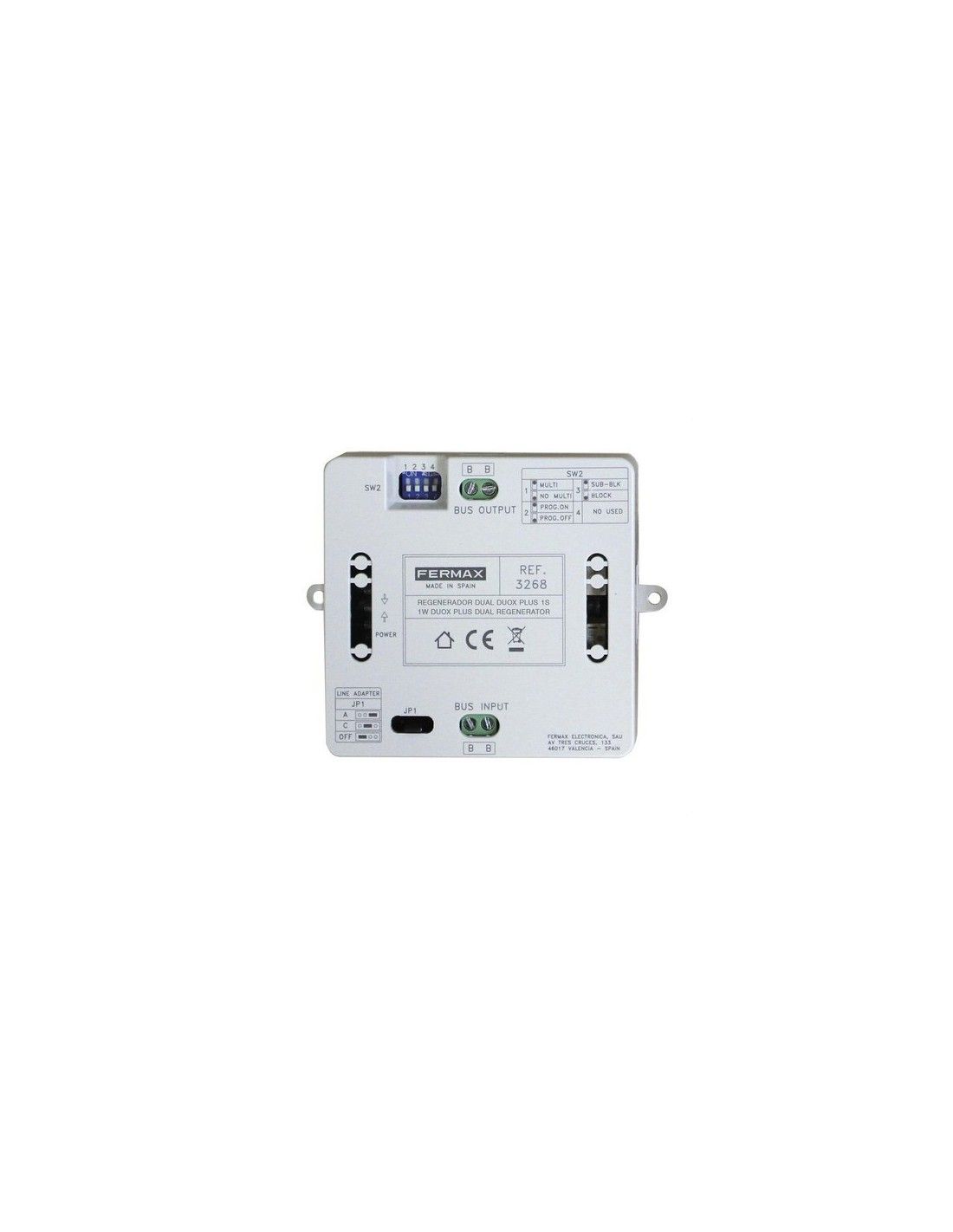

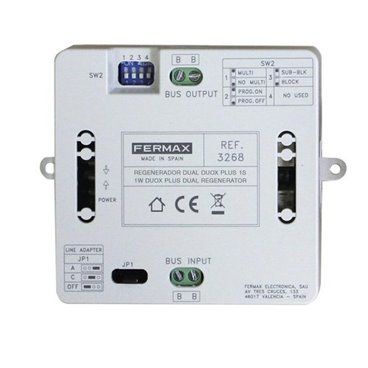

FERMAX 3268 | DUAL DUOX PLUS 1S regenerator screwed or DIN rail installation

DUAL DUOX PLUS 1S regenerator screwed or DIN rail installation. FUNCTIONS The DUAL DUOX PLUS 1S Regenerator can be used for the following purposes: Increase the capacity of the installation in distance and/or terminal load. The regenerator has to be connected at a point where the signal is acceptable (for example, where a monitor is working properly). 1. Plate distance extension. 2. Monitor extension. 3. Signal regeneration. Isolation of sections (trunks,?). The two sections between which it is installed are isolated against short circuits, load and signal reflections. When powered by one port, the regenerator allows a maximum current of 1.6 A to pass to the other port. Also, in multi-channel regenerator mode, simultaneous conversations can be established in different blocks. TECHNICAL CHARACTERISTICS The assembly can be done both by screw fixing and by installation on a DIN rail. Dimensions: 86 (H) x 89 (V) x 26 (D) mm. Connection - The regenerator can be powered by any of its two ports, but not by both simultaneously. If this is done, the regenerator will isolate the current between the INPUT terminal and the OUTPUT terminal, shutting down for protection. DUOX system: It is the first completely digital system in non-polarized two-wire technology. It is the most technologically advanced system in the world, which allows quick installation with just two wires. The most simplified and advanced installation system on the market. Maximizes the capabilities of intercom systems thanks to digital audio and video transmission. Duox offers the maximum simplicity of installation that enables the transmission of all signals: power, audio, video and data with the maximum capacities. Allows you to manage - From 1 to 999999 dwellings: Calls from Pushbutton Panel: 99. Calls from Keypad Panel: - Sub-Block: 99. Block: 9999. General Entry: 999999.
