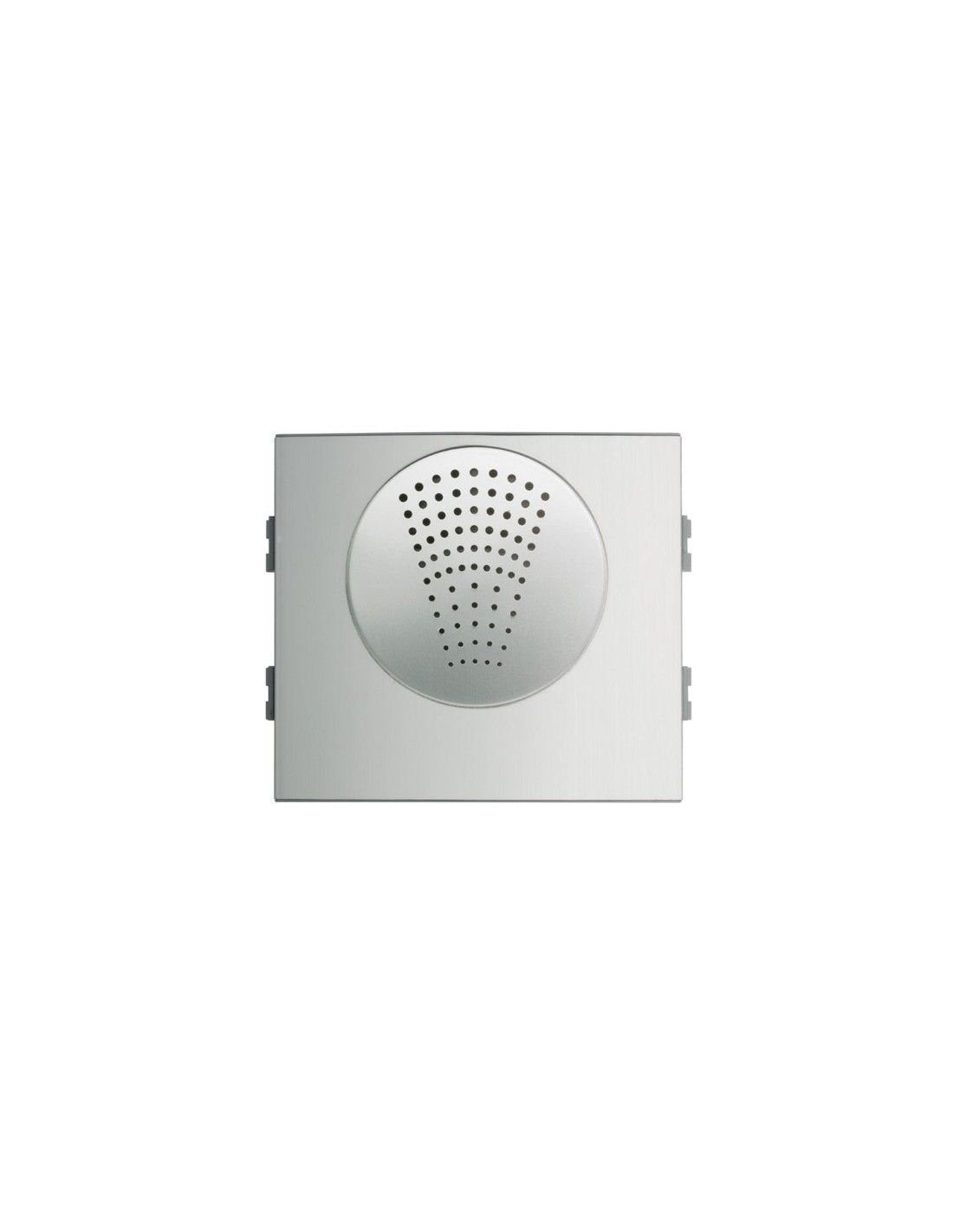

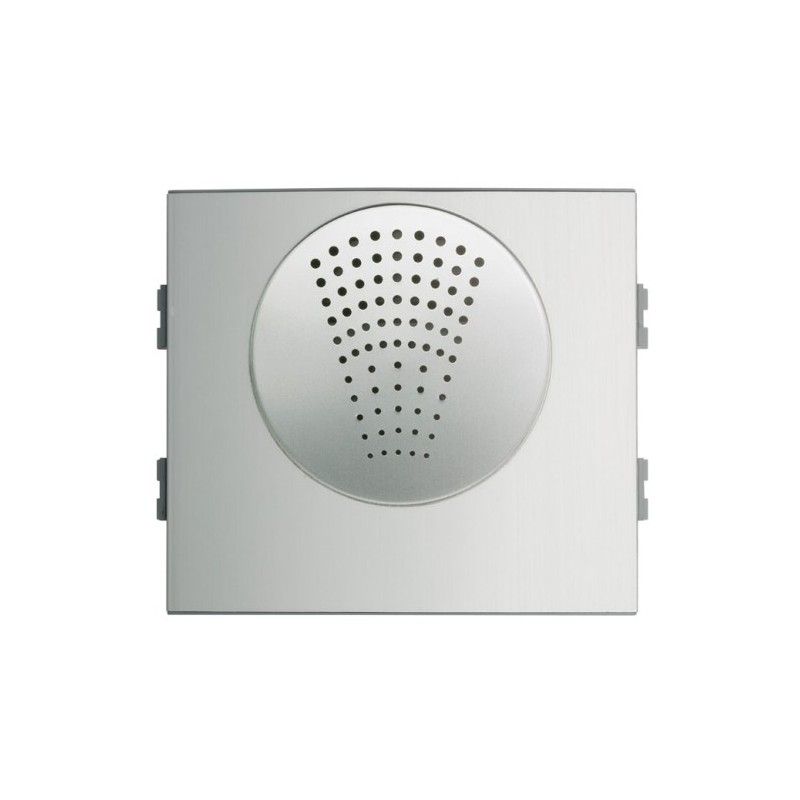

FERMAX 7400 conventional audio module

DESCRIPTION

Amplifier module to be incorporated into SKYLINE door entry panels.
It is the module (speaker unit) that incorporates the electronic circuits Necessary for the operation of the audio system, door opening, etc. .. in the intercom facilities. It has volume adjustments, both in the street-house and house-street direction, so that the installer can adjust the optimal level.

The New SKYLINE electronic and video door entry panel is a robust and elegant panel, It stands out for its durability and beauty, resistance and reliability.

SKYLINE is the new line of entrance panels for electronic and video entry phones with a continuous profile and modular composition from Fermax. The line consists of 8 frames of different sizes where the different modules are easily fitted: push buttons, card holder, camera, amplifier, access control, etc. Frames allow a specified number of modules to be attached. There are two sizes of modules: V and W. The W modules are twice the size of the V modules.
Module Measurements.
- V Module: 105.2x47.5 mm (width-height).
- Module W: 105.2x95 mm (width-height).

It is possible to combine two or more plates, as long as they are from the same series, to have a greater capacity for pushbuttons and accessories.

Conventional System: uses wires common to the entire installation plus 1 call wire (or callback) per home.

Recommended in small/medium size buildings (up to 50 neighbors approx.), with several entrances and central concierge. For urbanizations with general entrance and interior blocks.

Wiring:
- Doorphone: 4 common wires + N (1 call wire per home).
- Video doorphone: 7 common wires + 1 video coaxial + N (1 call wire per home).
Maximum distance in the installation depending on the section of the cable used (consult technical manuals)

Module to be located in the frame of the New SKYLINE plate.
