Bobina MX cableada 208-277V CA/CC NSXm &
Bobina MX cableada 208-277V CA/CC NSXm &

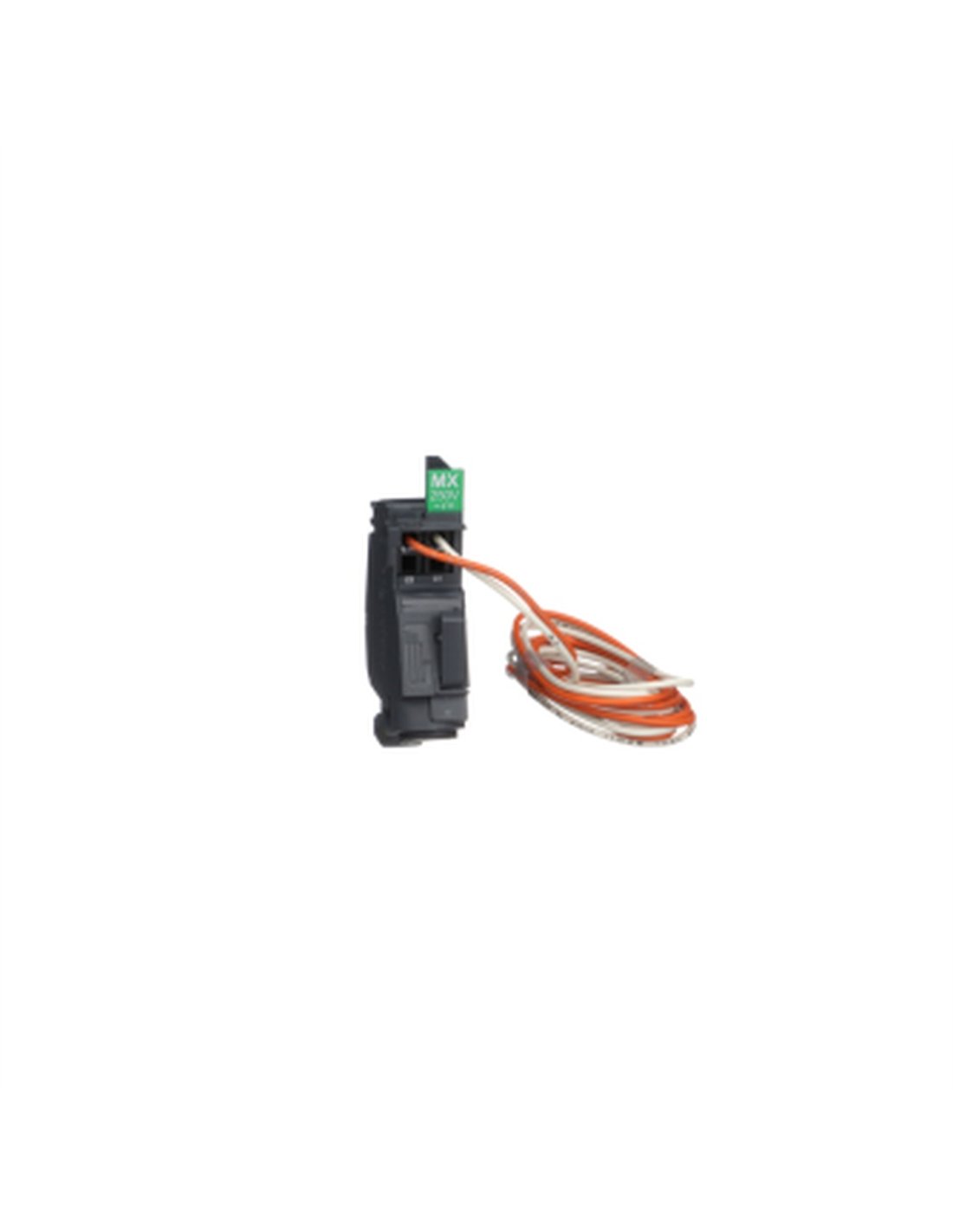

SCHNEIDER MX 220-277V AC/DC trigger coil, response time <50 ms, 1 m length

IMPO LV426864
Available
€107.24
VAT included
MX wired coil 208-277V AC/DC from the ComPact range, designed for control in Compact NSX DC and PowerPact B devices. Opening coil type with fast response and pre-wired auxiliary connection. Cable length: 1 m.
3 Items

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

Description

The NSXm 208-277V AC/DC Wired MX Coil is an essential component of the ComPact range, designed for control applications in electrical systems. This device, part of the Compact NS KIT range, is characterized by its high reliability and efficiency in circuit tripping. The MX Coil is compatible with the ComPact NSX DC, Compact NSXm, and PowerPact B series, making it a versatile option for various configurations.

This specific model is an opening coil, which operates under standard control.

Its control circuit voltage range covers 220 to 240 V AC at 50 Hz, 208 to 240 V AC at 60 Hz, 277 V AC at 60 Hz, and 250 V DC, ensuring its adaptability to different electrical environments. Among its technical characteristics, the following stand out: Trigger voltage threshold: 0.7 A opening; Response time: <50 ms; Control signal type: Pulse and sustained; Minimum pulse duration:>= 20 ms; Auxiliary connection terminal: Pre-wired 0…0.8 mm² (AWG 18) with copper strands; Length of bare wire for connection Terminals: 8 mm
  • Cable length: 1 m

    The MX Coil is a reliable solution for the efficient control of electrical systems, guaranteeing optimal performance in various industrial applications.

    • Product Details

    EAN
    3606485413204
    Manufacturer
    SCHNEIDER
    Reference
    SCHNEIDER LV426864
    GPSR Safety warning
    No
    GPSR Manufacturer information
    Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
    GPSR EU responsible person
    Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
    GPSR e-mail manufacturer
    [email protected]
