Mando el?. T250 24-30V CCmatico NSX250
Mando el?. T250 24-30V CCmatico NSX250

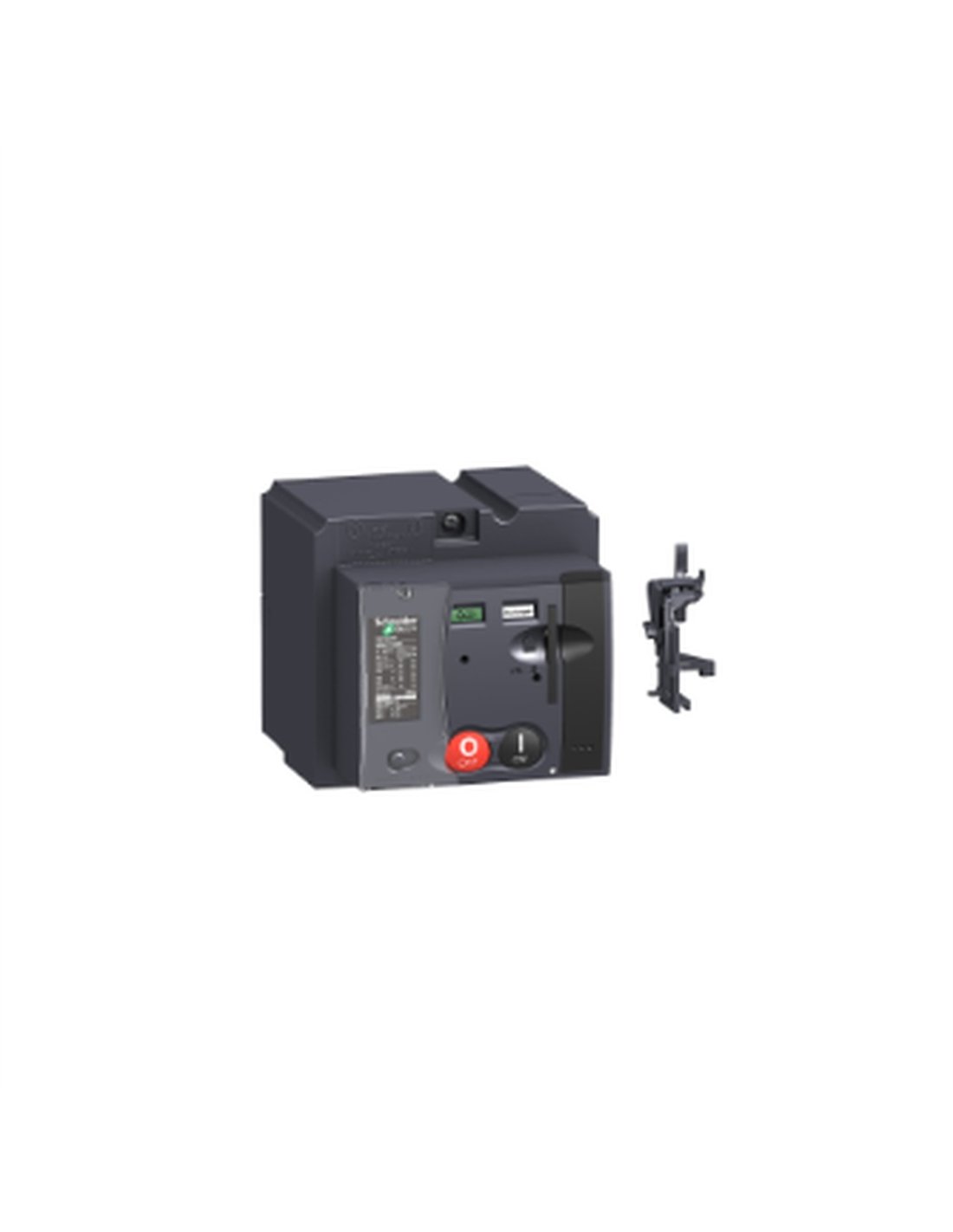

MT250 electric control, 24-30V DC, rated current 250A, fixed mounting

IMPO LV431543
Available
€992.74
VAT included
The MT250 electric controller is a control device designed for 24 to 30 V DC systems, ideal for industrial applications. Its integration with the ComPact range ensures efficient performance and optimized response times, offering precise control in demanding environments and guaranteeing reliability in critical operations.
4 Items

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

Description

The MT250 electric controller is an essential component within the ComPact range, designed to offer precise and efficient control in 24 to 30 V DC electrical systems. This device integrates seamlessly with various product ranges, ensuring optimal performance in industrial and commercial applications.

  • Product range: ComPact NSX400...630, ComPact NSX100...250 DC next generation
  • Product type: Electric control
  • Application: Automatic spring charging
  • Compatibility: ComPact NSX400, ComPact NSX250 next generation, Compact NSX Micrologic 7 NSX250 DC, among others
  • Control type: Standard
  • Control circuit voltage: 24...30 V DC
  • Rated current: 250 A
  • Mounting type: Fixed
  • Control signal type: Maintained and pulsed
  • Response time: <700 ms in open area lighting, <80 ms in closed-loop mode
  • Maximum operating frequency: 4 per minute
  • Maximum power consumption: 500 VA for closing and opening
  • Locking options: 1 to 3 padlocks from Ø 5 to Ø 8, padlock in OFF position

Product Details

EAN 3606480020100
Reference IMPO LV431543
4 Items

Reviews (0)

No reviews

GPSR

Fabricante Schneider Electric España, S.A.
Dirección postal Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona
Contacto electrónico [email protected]
Teléfono +34 930289900
Referencia IMPO LV431543
EAN 3606480020100
