TRANSF SEG 40VA 12-24V CA
TRANSF SEG 40VA 12-24V CA

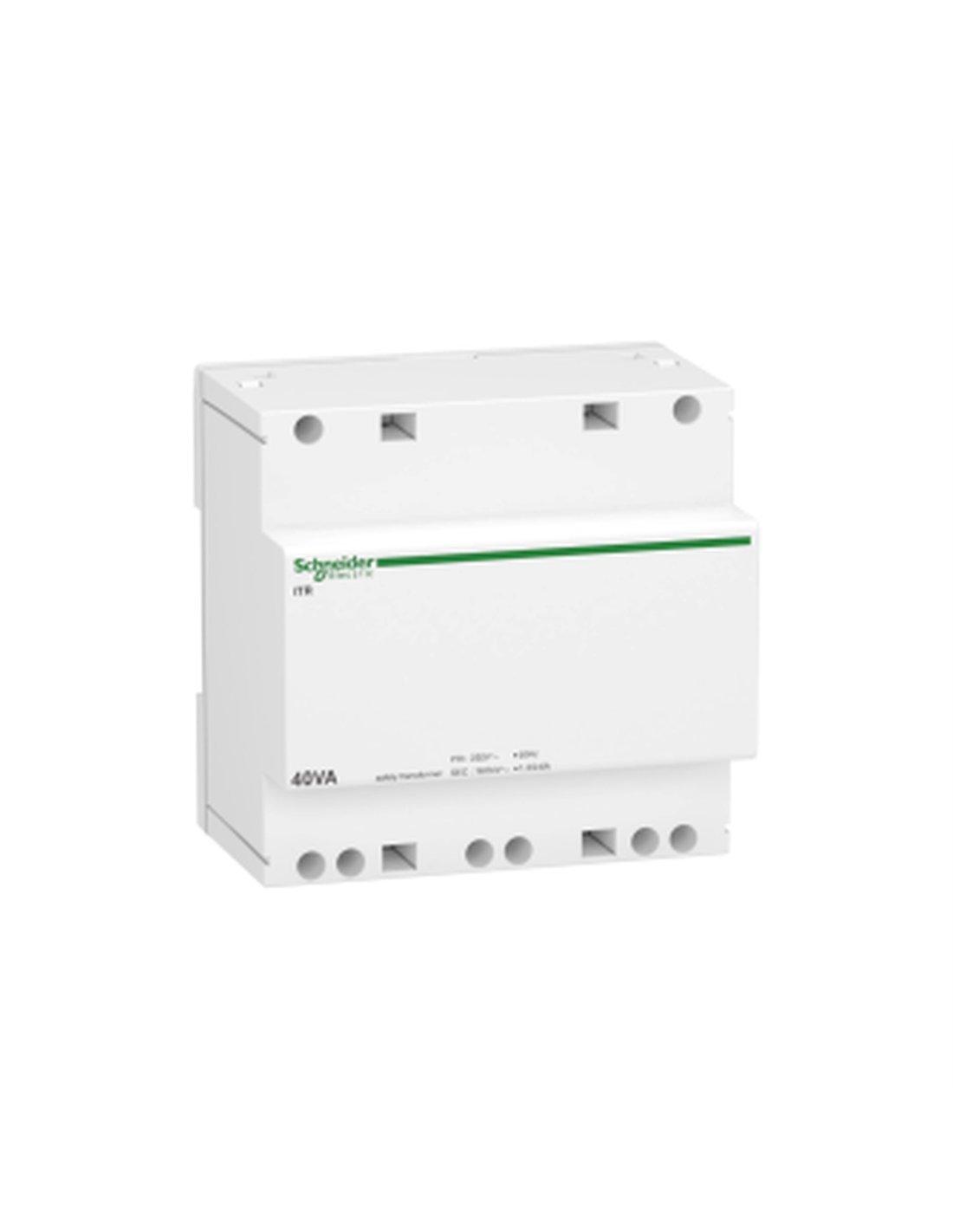

ACTI 9 safety transformer 40VA 12/24V AC, DIN rail mounting, IP class II

IMPO A9A15220
Available
€128.77
VAT included
Acti 9 iVLT safety transformer, with a nominal power of 40 VA and 12/24 V output. Fixed mounting on a 35 mm DIN rail. Short-circuit protection and suitable for small businesses and residential environments. Complies with EN 60742 and EN 61558 standards.
10 Items

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

Description

The TRANSF SEG 40VA 12-24V AC safety transformer, part of the Acti 9 range, is a reliable and efficient solution for residential and small commercial applications. Designed to provide a 12/24V output voltage with an accuracy of +/-5% under load, this transformer guarantees optimal performance under various operating conditions. Its robust construction and safety features make it an ideal choice for those seeking quality and durability.

This model, known as the Acti 9 iVLT, has a rated power of 40 VA and is designed for fixed mounting on a symmetrical 35 mm DIN rail.

Its compact design, with dimensions of 89 mm in height, 90 mm in width, and 60 mm in depth, allows for easy integration into confined spaces.

  • Nominal operating voltage: 230 V AC 50/60 Hz
  • Output voltage: 12/24 V, state 1 +/-5% under load
  • Output protection: Built-in short circuit protection
  • Nominal power: 40 VA
  • Mounting: Fixed on DIN rail
  • Standards: EN 60742, EN 61558-2-6, IEC 61558-2-6
  • Certifications: NF
  • Operating temperature: -20…55 °C
  • Color: White
  • Connection terminal: Terminal type 4 mm²

Product Details

EAN
3606480097829
Manufacturer
SCHNEIDER
Reference
SCHNEIDER A9A15220
GPSR Safety warning
No
GPSR Manufacturer information
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer
[email protected]
