Ruko-232101E-Macho de roscar para máquinas M DIN 376 HSS-Co 5 rectificado tipo B. Rosca M10

Ruko-232101E-Macho de roscar para máquinas M DIN 376 HSS-Co 5 rectificado tipo B. Rosca M10

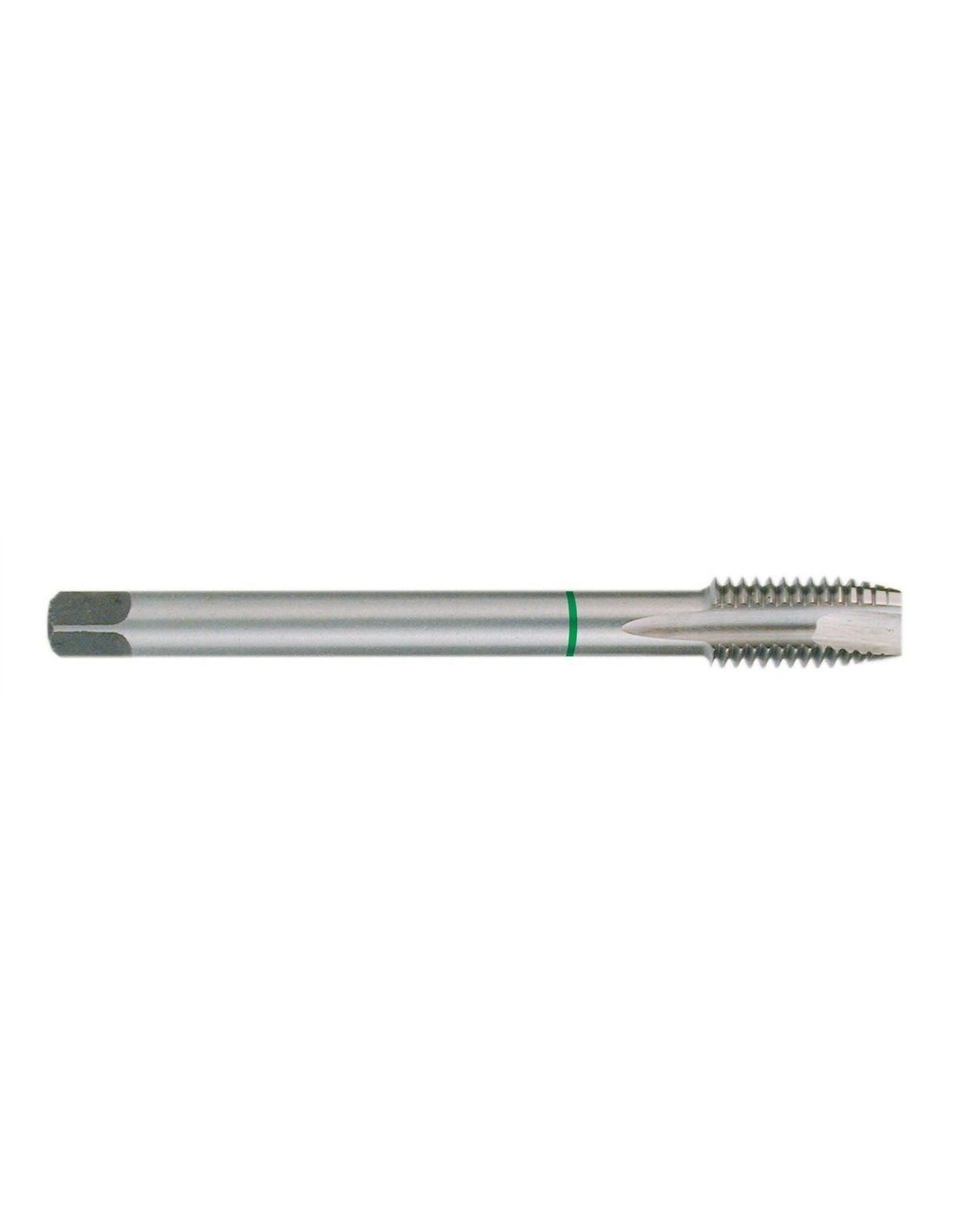

RUKO HSS-Co 5 M10 DIN 376 type B threading tap, high precision ground.

Brand: Ruko

Reference TUR 232101E

Available

€22.34

VAT included

Ruko-232101E Type B Machine Tap. Made of HSS-Co 5 high-speed steel, ideal for M10 threads in steels and non-ferrous metals. Bright finish, right-hand cutting edge. Packaged in an individual plastic box.

In stock 9 Items

Email address

Description

The Ruko-232101E tap is a high-precision tool designed for thread cutting in various industrial applications. Made of cobalt alloy high-speed steel, this tap offers exceptional heat resistance and extended durability, making it an ideal choice for demanding jobs. Its reinforced shank ensures greater stability during the tapping process, allowing for optimal results on through threads.

This tap is suitable for working with unalloyed and alloy steels with a tensile strength of up to 800 N/mm², as well as malleable cast iron and non-ferrous metals. The thread is cut in a single step, which simplifies its use and improves work efficiency.

Its design complies with DIN ISO 13 metric standards, with an ISO 2/6H tolerance, ensuring a precise and reliable fit.

Model: Ruko-232101E
Type: Machine tap
Material: HSS-Co 5 high-speed steel
Thread: Metric DIN ISO 13
Tolerance: ISO 2/6H
Cut: Right-hand
Surface: Bright
Applications: Non-alloy steel, alloy steel, malleable cast iron, non-ferrous metals
Shank: Reinforced
Presentation: Individual plastic box with hanger

Product Details

EAN	4007140095329
Manufacturer	Ruko
Reference	TUR 232101E
High	1,50
Width	5,00
Depth	15,00
Weight (kg)	0,0600

In stock 9 Items

Reviews (0)

No reviews
