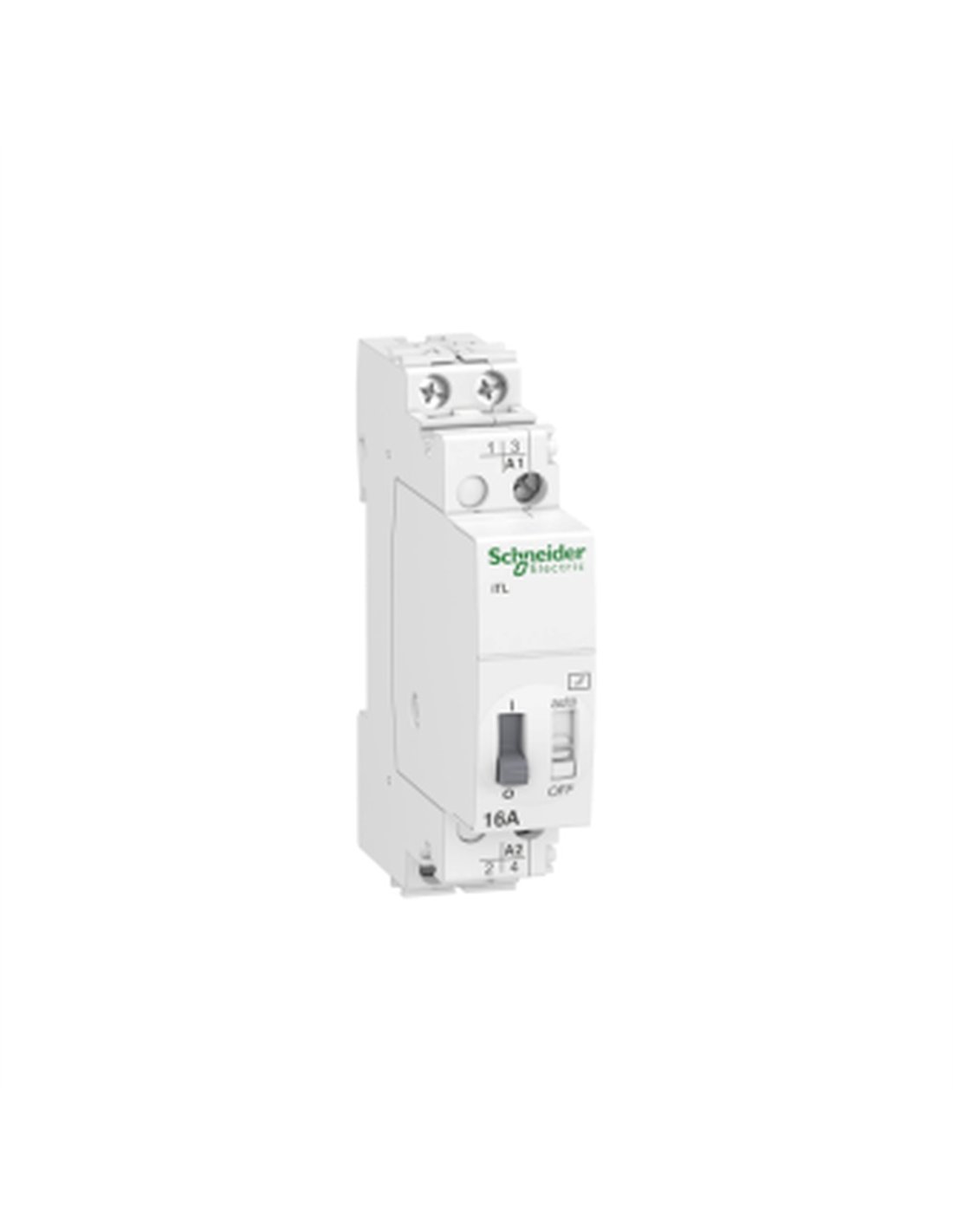

ITL 2P 16A 230VAC 110VDC remote switch with manual and remote control, IP20.

The Acti9 iTL+ is a high-quality remote switch designed for residential and small commercial applications. Part of Schneider Electric's ITL range, this device offers efficient and reliable control of electrical circuits, meeting the most demanding standards. With a rated current of 16 A and a control circuit voltage of 230–240 V AC 50/60 Hz and 110 V DC, the iTL is suitable for various electrical configurations.

This remote switch has two poles (2P) and a contact pole configuration of 2 NO, allowing for both manual and remote control. Its compact design, with dimensions of 84 mm high, 18 mm wide, and 60 mm deep, facilitates installation on DIN rails. Furthermore, its electrical durability is remarkable, reaching up to 200,000 cycles under AC-21 conditions.

• Main frequency: 50/60 Hz
• Control type: Manual and remote
• Coil disconnection with local signaling
• Minimum pulse duration: 50 ms...1 s
• Protection rating: IP20/IP40
• Operating temperature: -20…50 °C
• Relative humidity: 95% at 55 °C
• Connections: Tunnel-type terminals for cables from 0.5 to 4 mm²
• Standards: EN 669-1, EN 669-2-2
• Certifications: GOST, NF, CEBEC, KEMA, VDE, IMQ
