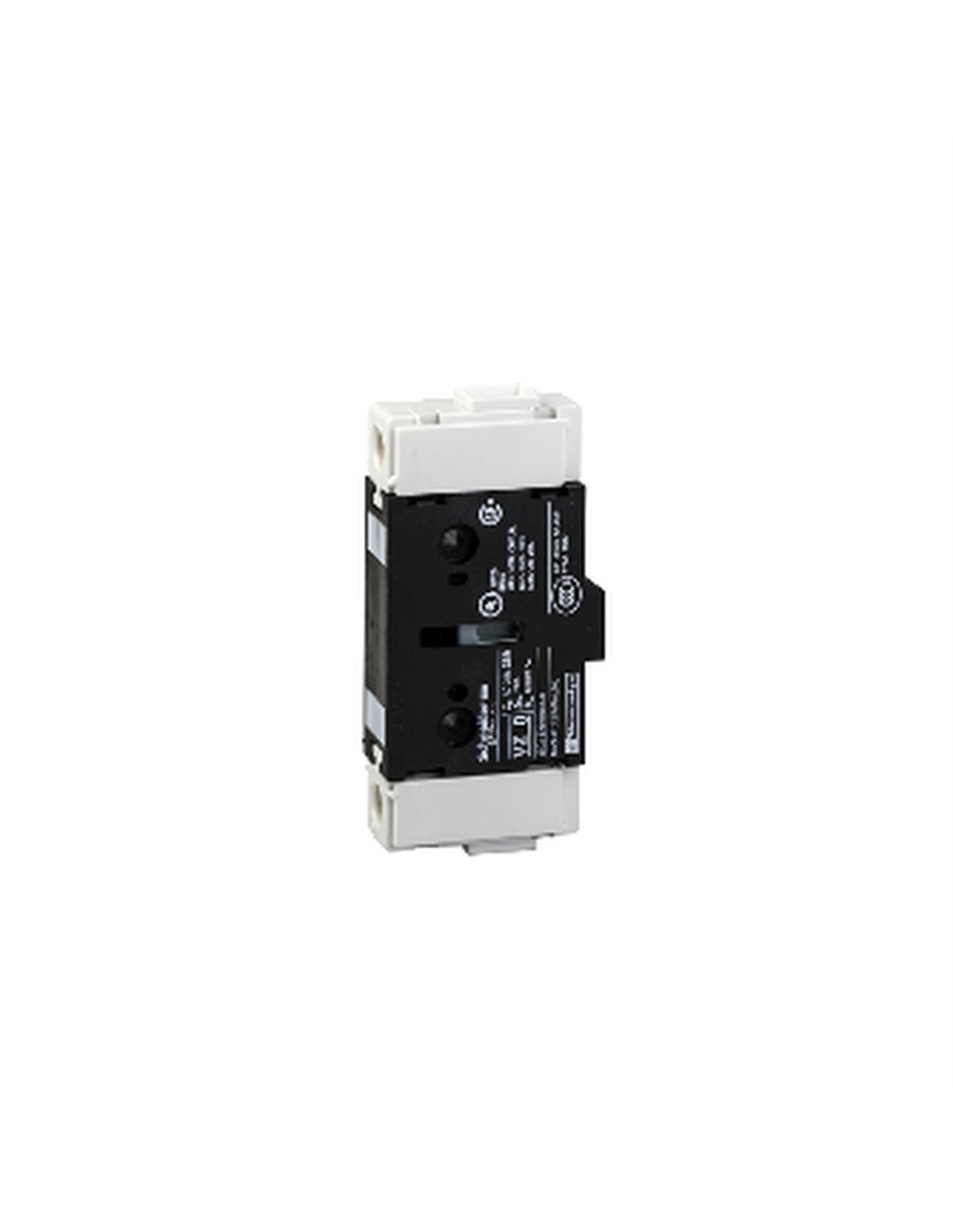

Additional pole ITH 63A SCHNEIDER TEYS 1P 690V AC 50/60Hz high performance

The VARIO ITH 63A POLO P/ from the TeSys range is an additional component designed to offer high performance in electrical applications. This device, known as VZ, is characterized by its robustness and reliability, making it ideal for use with TeSys VARIO disconnect switches. With a compact and efficient design, this pole has one normally open (NO) contact (1P), making it a versatile option for various network configurations.

The VARIO ITH 63A POLO P/ is compatible with AC and DC networks, operating at frequencies of 50/60 Hz. Its disconnecting capacity ensures optimal performance under demanding conditions.

• Performance level: High performance
• Conventional thermal current: 63 A
• Mechanical durability: 30,000 cycles
• Electrical durability: 100,000 cycles AC-21
• Connections: Screw terminals for cables up to 25 mm²
• Tightening torque: 4 Nm on screw terminals
• Protection rating: IP20
• Operating ambient temperature: -20…50 °C
• Fire resistance: 960 °C according to IEC 60695-2-1
• Product weight: 0.1 kg
