POLO DE POTENCIA P/ VARIO V02 ITH 12A
POLO DE POTENCIA P/ VARIO V02 ITH 12A

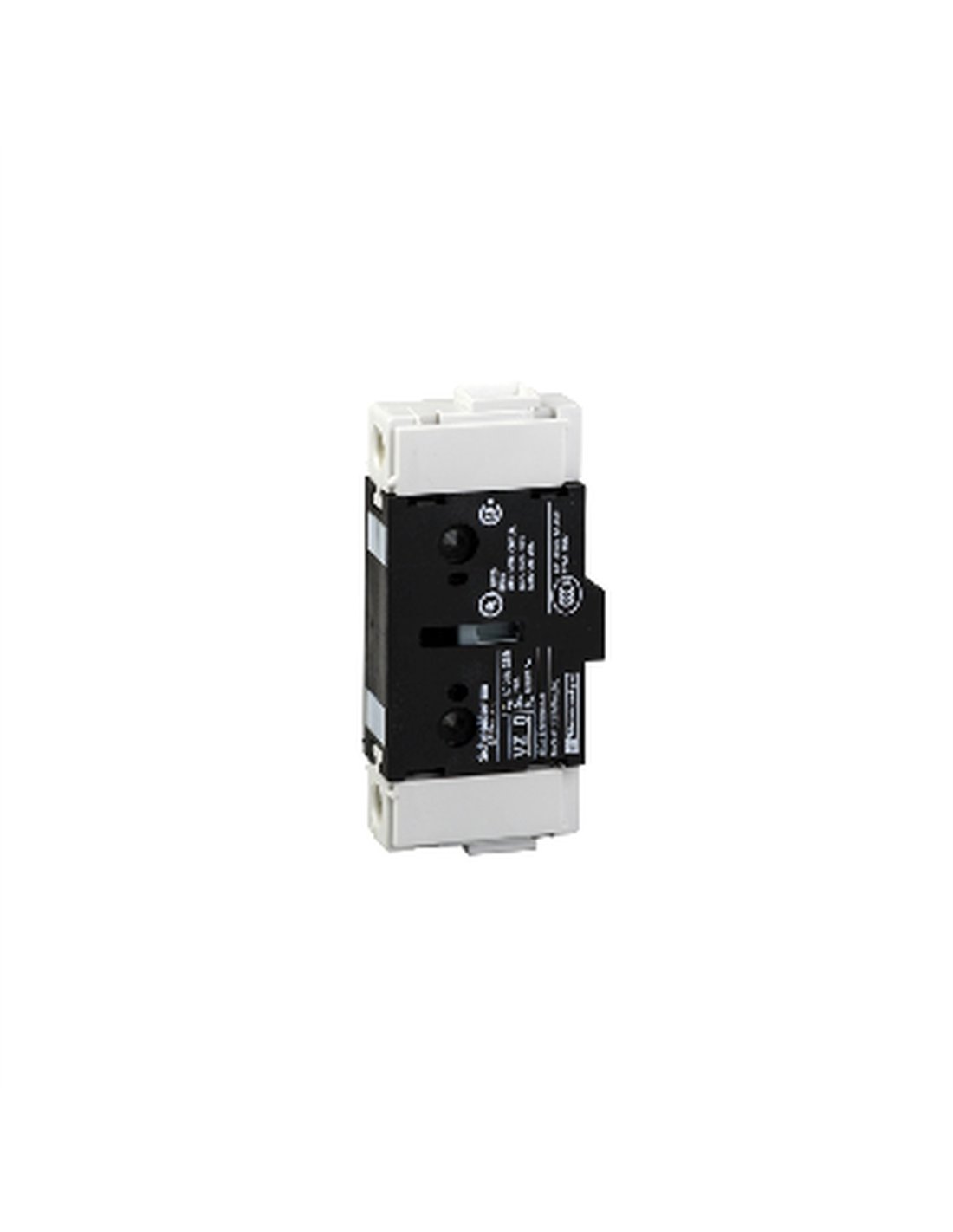

SCHNEIDER TE SYS 1P 690V AC 50/60Hz High Performance ITH 12A Power Pole

IMPO VZ02
Available
€9.49
VAT included
TeSys VZ power pole for Vario V02, with high performance and 1 pole (1 NO). Compatible with DC and AC (690 V AC, 50/60 Hz). Mechanical and electrical durability of 100,000 cycles. IP20 protection rating. Weight: 0.05 kg.
10 Items

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

Description

The TeSys VARIO V02 ITH 12A Power Pole is an add-on component designed to deliver high performance in both AC and DC applications. This device, known as VZ, features a single pole (1P) and a normally open (NO) contact, making it ideal for use with TeSys VARIO series disconnect switches. Its robustness and reliability make it a suitable option for various electrical installations.

Among its technical characteristics are:

  • Nominal operating voltage: 690 V AC 50/60 Hz
  • Conventional thermal current: 12 A
  • Mechanical durability: 100,000 cycles
  • Electrical durability: 100,000 cycles AC-21 and 30,000 cycles DC-1...5
  • Voltage peak resistance: 8 kV
  • Protection rating: IP20
  • Operating ambient temperature: -20…50 °C
  • Protection treatment: TC
  • Product weight: 0.05 kg
  • Dimensions: 74 mm (height) x 16 mm (width) x 35 mm (depth)

This power pole is compatible with the main module and is designed for easy installation and maintenance in demanding environments, complying with CSA, UL, and GL standards.

Product Details

Frequency
50/60 Hz
EAN
3389110448856
Manufacturer
SCHNEIDER
No. of poles
1P
Reference
SCHNEIDER VZ02
GPSR Safety warning
No
GPSR Manufacturer information
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer
[email protected]
