RECONECTADOR AUTOMATICO ARA P/iID 4POLOS
RECONECTADOR AUTOMATICO ARA P/iID 4POLOS

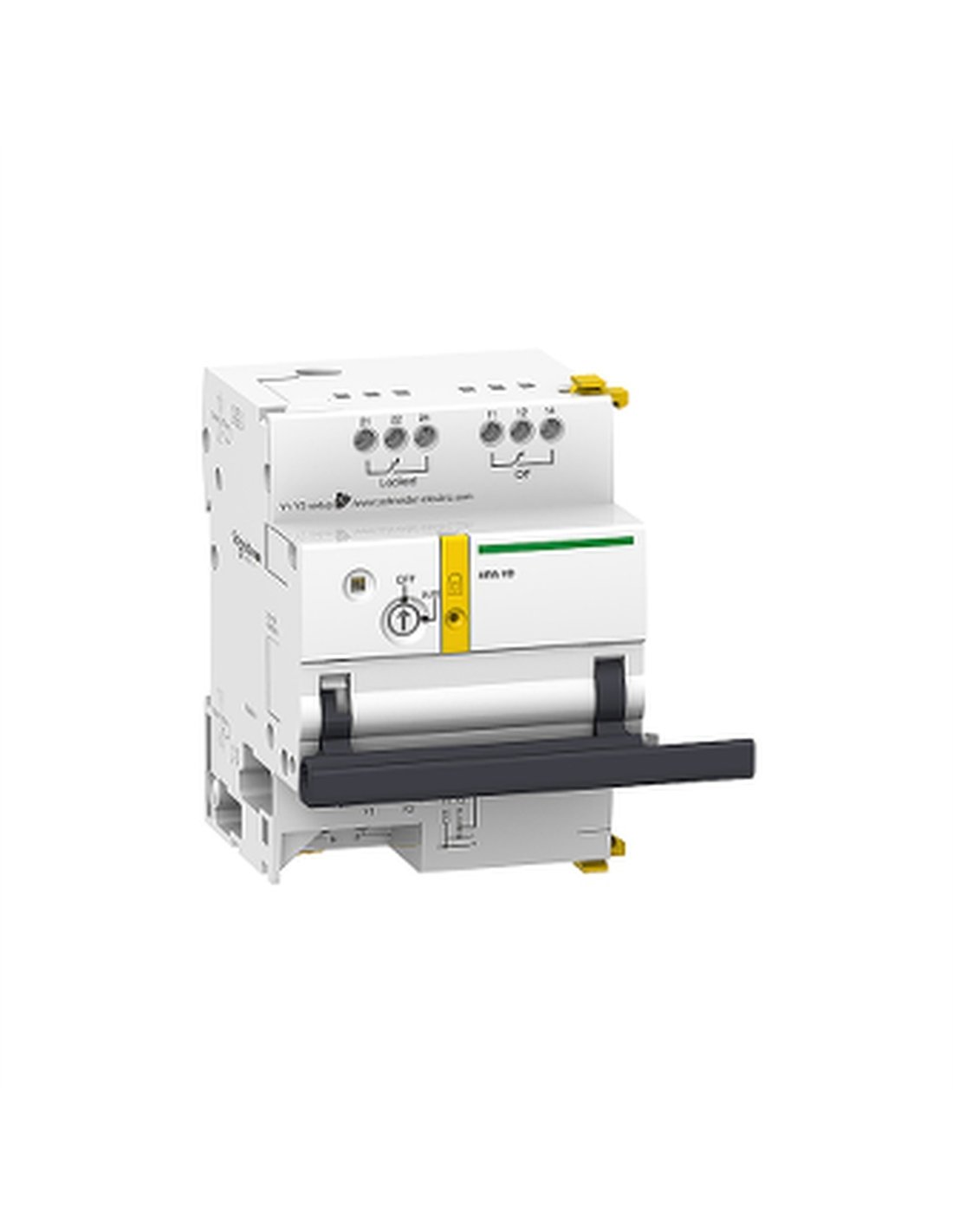

ARA IID 4-pole automatic recloser 230 V AC 1 A, IP20, 5000 cycles durability

IMPO A9C70344
Available
€310.39
VAT included
The ARA P/iID 4-pole automatic recloser from the Acti 9 range is an auxiliary device that allows automatic reconnection in 230V circuits. With LED signaling and DIN rail mounting, it offers high durability and efficiency.
10 Items

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

Description

The ARA P/iID 4-POLE AUTOMATIC RECLOSER from the Acti 9 range is an auxiliary device designed to optimize automatic reconnection in electrical systems. This model, belonging to the IID range, offers an efficient and reliable solution for managing electrical circuits, guaranteeing optimal performance in various applications.

The ARA iID features a signaling contact configuration that includes two voltage-free contacts, operating at a signaling circuit voltage of 24 V 10 mA AC/DC and 230 V 1 A AC.

Its design allows for continuous automation inhibition control at 230 V AC 50/60 Hz, with a response time of less than 500 ms, ensuring rapid recovery from interruptions. Among its technical features are: Nominal supply voltage: 230 V AC 50/60 Hz; Electrical durability: 5000 cycles; Protection rating: IP20 (IP40 with modular enclosure); Operating temperature: -25…60 °C; Power consumption: 2 W; Voltage spike resistance: 6 kV; DIN rail mounting, clip adjustable; LED indicators for operating status; Padlockable in the OFF position; Compatibility with residual current circuit breakers Acti 9 iID40

This device is ideal for applications requiring precise control and high reliability in the automatic reconnection of electrical circuits.

Product Details

EAN
3606480675683
Manufacturer
SCHNEIDER
Reference
SCHNEIDER A9C70344
GPSR Safety warning
No
GPSR Manufacturer information
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer
[email protected]
