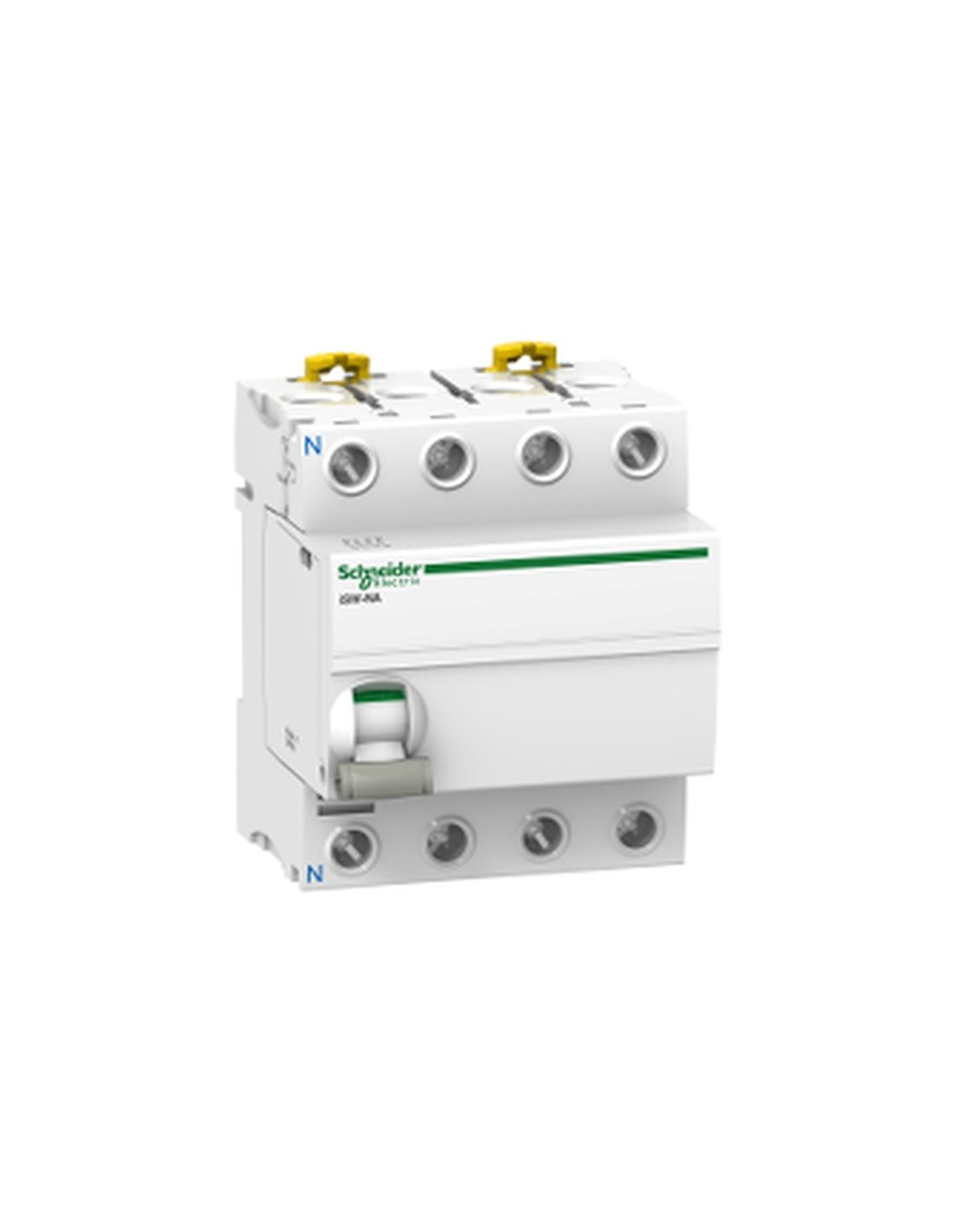

ISW-NA 80A 3P+N 400/415V AC disconnect switch, IP20, DIN rail mounting

The iSW-NA 4P 80A circuit breaker from the Acti 9 range is a disconnecting device designed to provide efficient isolation and control in electrical applications. This model, known as the Acti 9 iT60, features a 3-pole plus neutral configuration, with the neutral located on the left, facilitating its integration into electrical systems. Its AC-22A utilization category ensures optimal performance under load conditions, with a breaking capacity that meets safety standards.

With a rated current of 80 A and a rated voltage of 400/415 V AC, this disconnecting switch is ideal for small commercial and residential applications. Its short-circuit capacity of 5 kA and electrical durability of 10,000 cycles guarantee a long service life and reliable operation.

• Rated operating current: 80 A at 400/415 V AC 50/60 Hz
• Rated short-circuit capacity: 5 kA
• Rated insulation voltage: 500 V AC 50/60 Hz
• Mechanical durability: 20,000 cycles
• Protection rating: IP20
• Operating ambient temperature: -35…70 °C
• Relative humidity: 95% at 55 °C
• Control type: Remote tripping
• Mounting: DIN rail
• Weight: 0.3 kg
