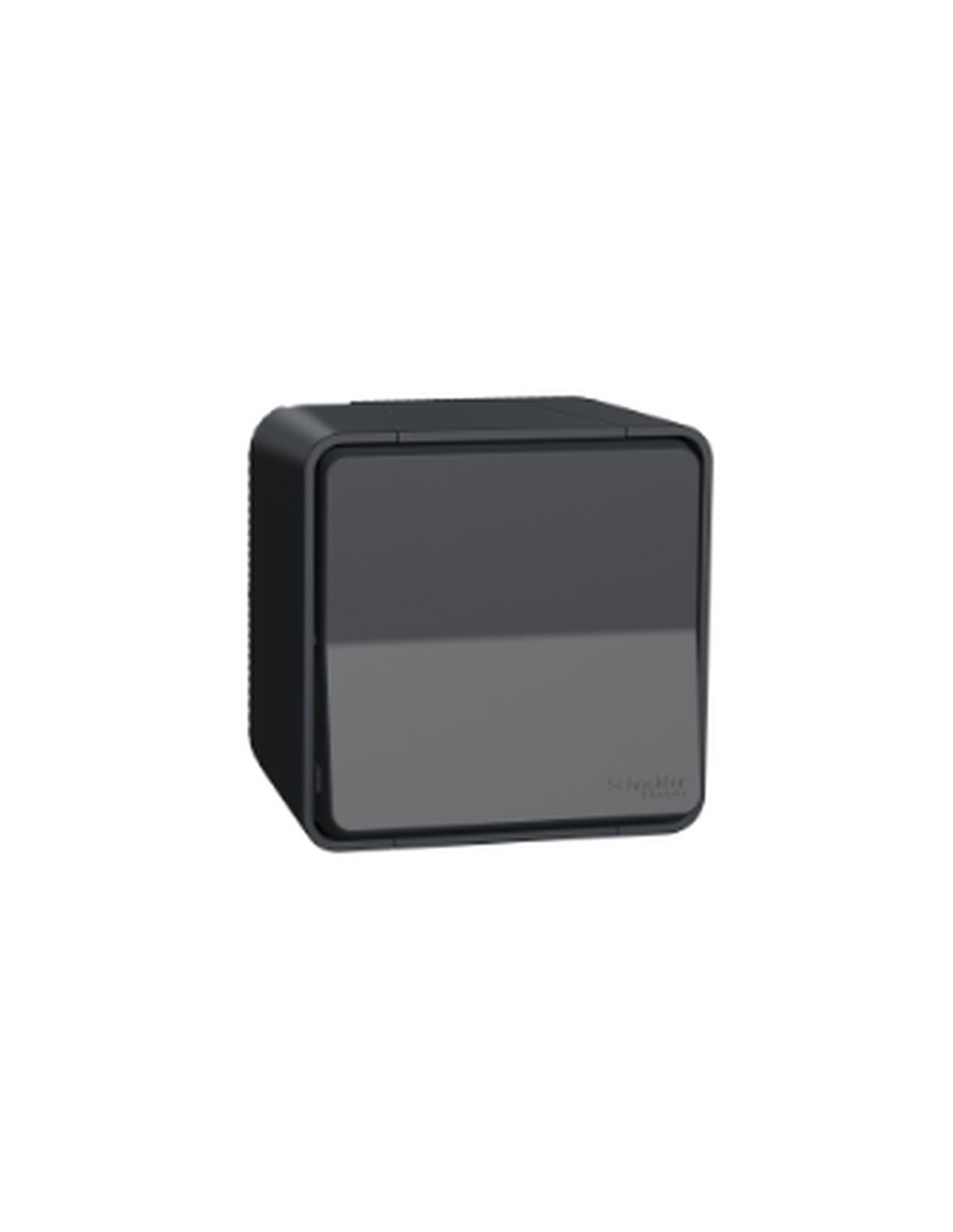

MUREVA grey IP55 10 AX 250 V AC disconnect switch, surface mounted

The Mureva Styl IP55 Surface-Mounted Switch in grey is a disconnect switch designed to offer a robust and efficient solution for both indoor and outdoor use. Its construction from high-quality materials, such as bronze and ABS, guarantees durability and resistance to adverse conditions. This device has an IP55 protection rating, making it ideal for environments where exposure to humidity and dust is a concern.

With a bidirectional design and a rocker actuator, this switch allows for easy operation and effective load control, capable of handling up to 10 AX and 100 W for energy-saving lamps with ballasts. Installation is simple, with surface mounting secured by screws and a connection capacity that accepts rigid and flexible cables up to 2.5 mm².

The IP55 Surface-Mounted Switch also stands out for its resistance to chemical agents, making it a versatile option for various applications.

• Range: Mureva Style
• Product Type: Disconnect Switch
• Switching Function: Bidirectional
• Rated Current: 10 AX
• Rated Voltage: 250 V AC
• Protection Rating: IP55
• Material: Bronze and ABS
• Chemical Resistance: High
• Operating Temperature: -5…40 °C
• Dimensions: 76 mm x 76 mm x 64 mm
