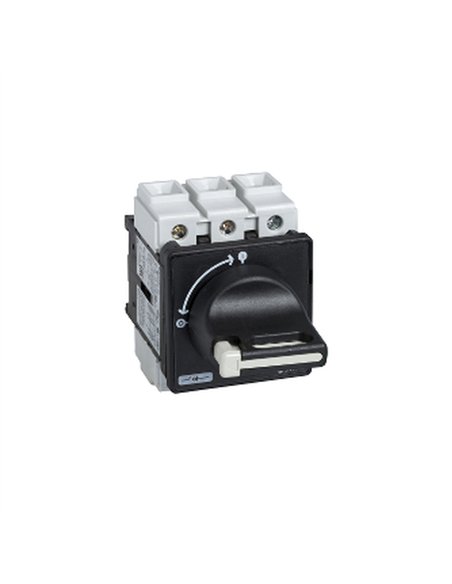

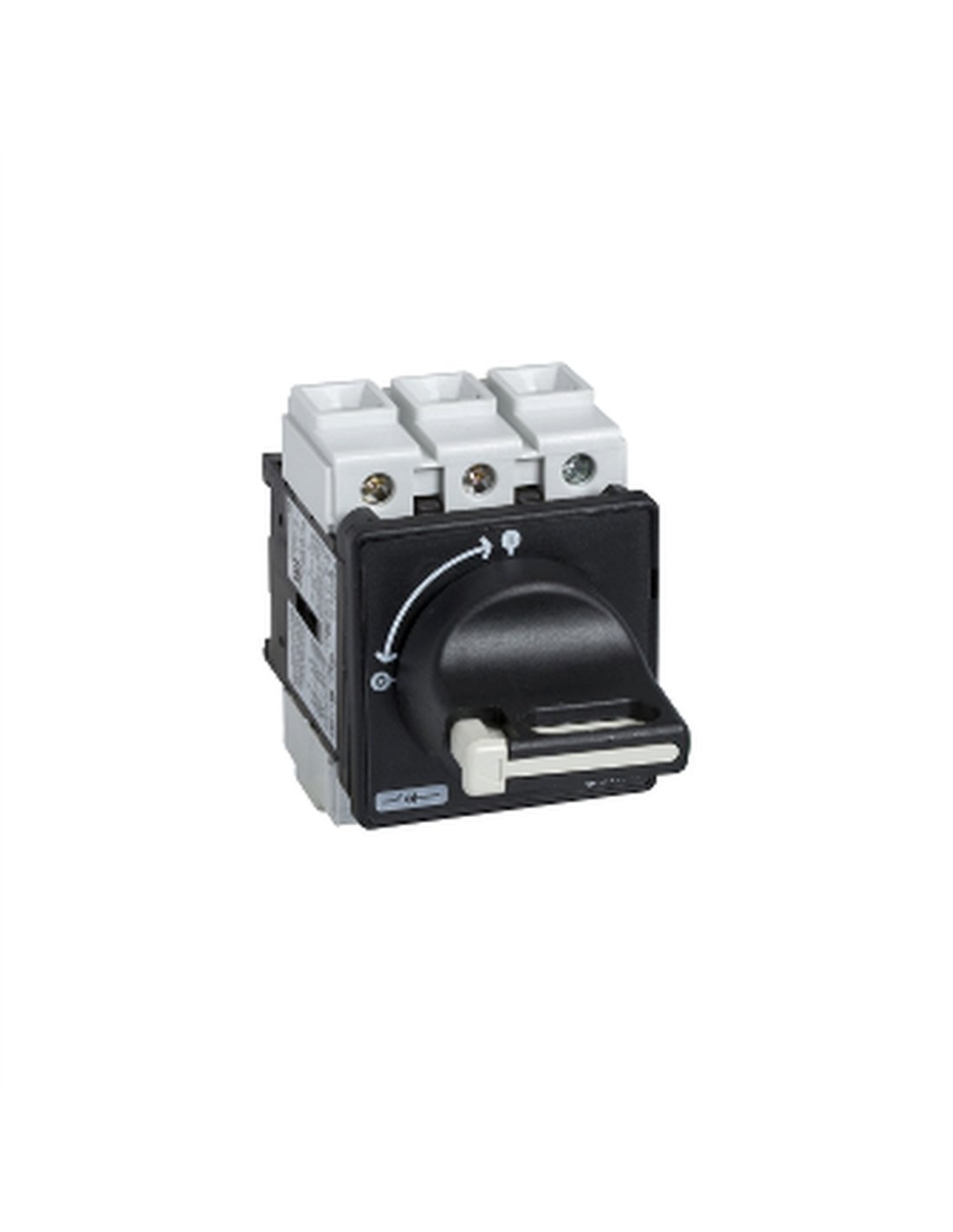

TEYS VARIO 25A 3P 690V AC high performance rotary switch disconnect

The TeSys VARIO 25A Trip Disconnect Switch is a high-quality device designed for preventive maintenance in industrial applications. This disconnect switch, part of the TeSys range, is characterized by its robustness and reliability, offering exceptional performance under diverse operating conditions.

The device features a toggle switch and a handle for easy operation, as well as a mounting bracket with a lever and a fixing system for secure attachment.

• Rated operating voltage: 690 V AC 50/60 Hz
• Rated operating power: up to 15 kW at 690 V
• Rated operating current: 14.5 A AC-23 Ue: 400 V
• Breaking capacity: 200 A at 400 V
• Mechanical durability: 100,000 cycles
• Protection rating: IP20 and IP65
• Operating ambient temperature: -20…50 °C
• Fire resistance: 960 °C according to IEC 60695-2-1
• Dimensions: 80 x 80 x 45 mm
• Weight: 0.215 kg

This disconnect switch is ideal for applications requiring safe and efficient control of electrical power, complying with international standards and certifications.
