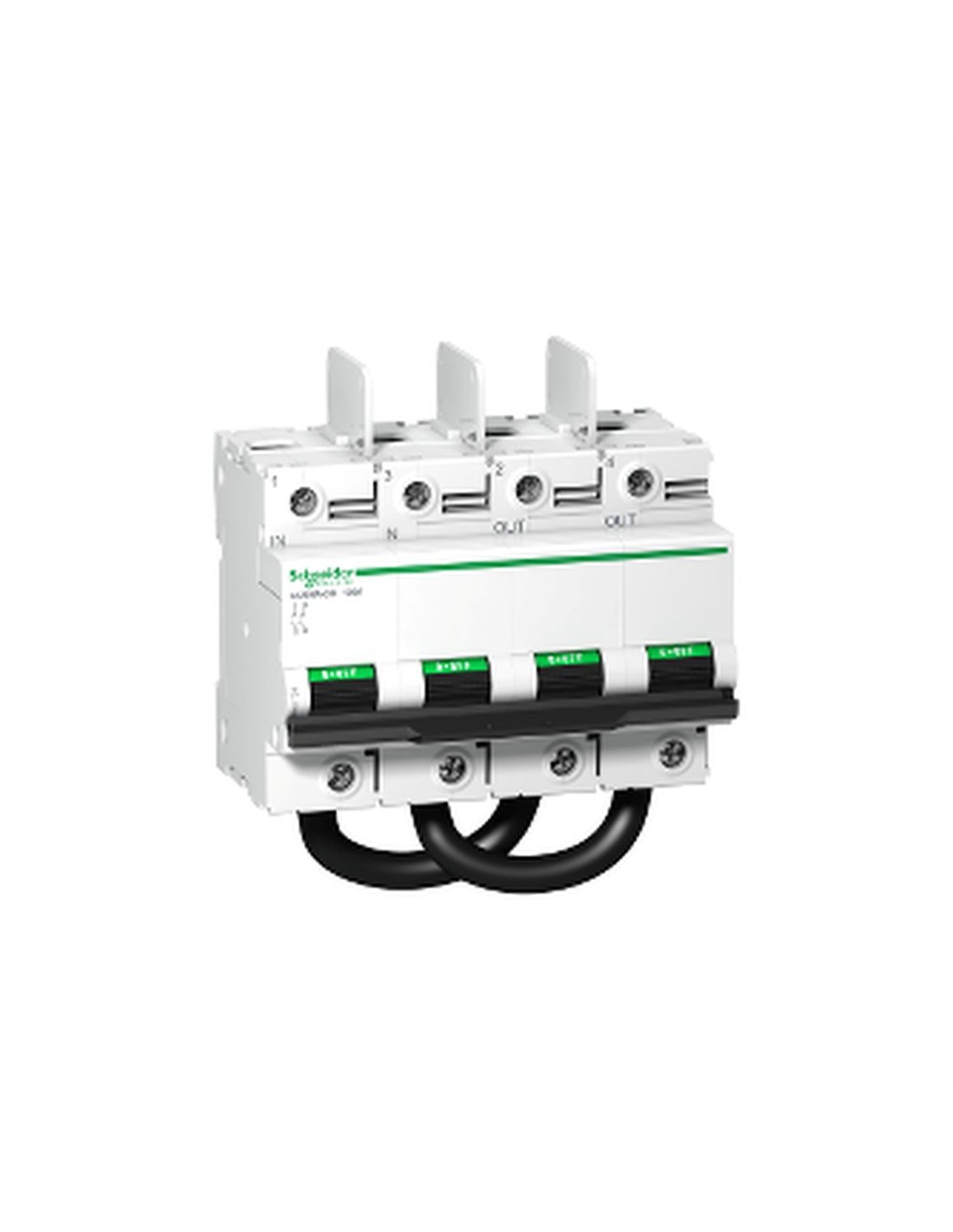

ACTI 9 100A 2P 1000V DC-21B disconnect switch with DIN rail mounting

The Acti 9 Dardo Plus C120N DC 100A disconnect switch is specifically designed for the protection of inverters in photovoltaic applications. This device is ideal for solar power systems, guaranteeing safe and efficient performance in DC power management.

With a rated operating current of 100 A and a rated insulation voltage of 1000 V, the C120N DC is capable of withstanding demanding conditions. Its robust design includes a 6 kV surge resistance, making it a reliable choice for high-demand environments. Furthermore, its mechanical durability of 20,000 cycles and electrical durability of 300 cycles ensure a long service life.

The device features a lever control and local indicators that show the on/off status. Its clip-on mounting is adjustable and DIN rail compatible, facilitating installation in various configurations.

• Number of poles: 2P
• Utilization category: DC-21B
• Operating temperature: -25…70 °C
• Storage temperature: -40…85 °C
• Connections: Pre-wired cable, bottom cable type
• Tightening torque: 3.5 Nm
• Contamination degree: 2
• Color: White
• Length of Stripped cable: 15 mm
• Compatibility code: C125
