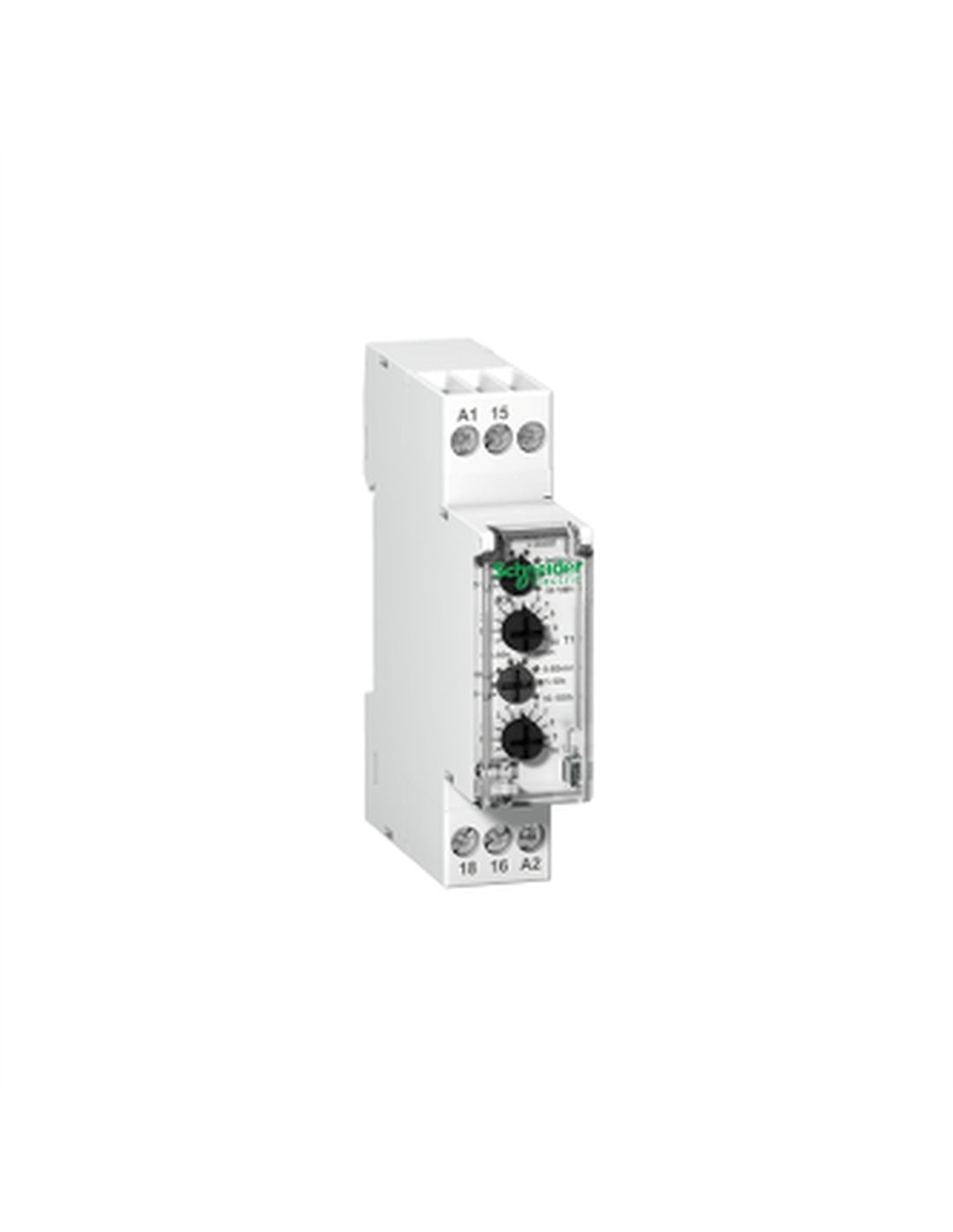

ACTI 9 IRT 8 A 24-240 V AC TIMER RELAY, range 0.1-360000 s, DIN mounting

The RTL TIMER is a time-delay relay from the Acti 9 range, designed for applications requiring precise intermittent timing control. This device, known as an IRT, offers an efficient and reliable solution for managing electrical circuits in residential and small commercial environments.

With a rated operating current of 8 A at 250 V AC and 8 A DC, the IRTL adapts to a variety of electrical needs. Its timing range spans from 0.1 to 360,000 seconds, allowing exceptional configuration flexibility. Adjustment is made via a rotary knob, facilitating customization of the relay's operating time.

The timer features local indicators via a flashing LED to show the delay time. Its compact design, with dimensions of 93 mm in height, 18 mm in width, and 72 mm in depth, allows for fixed mounting on a symmetrical 35 mm DIN rail.

• Rated operating current: 8 A at 250 V AC and DC
• Timing range: 0.1...360000 s
• Adjustment type: Rotary control
• Electrical durability: 100,000 AC-1 cycles
• Protection rating: IP20
• Operating temperature: -5…55 °C
• Connections: Tunnel-type terminals for flexible and rigid cables
• Weight: 0.065 kg
• Color: White
• Market segment: Residential and small businesses
