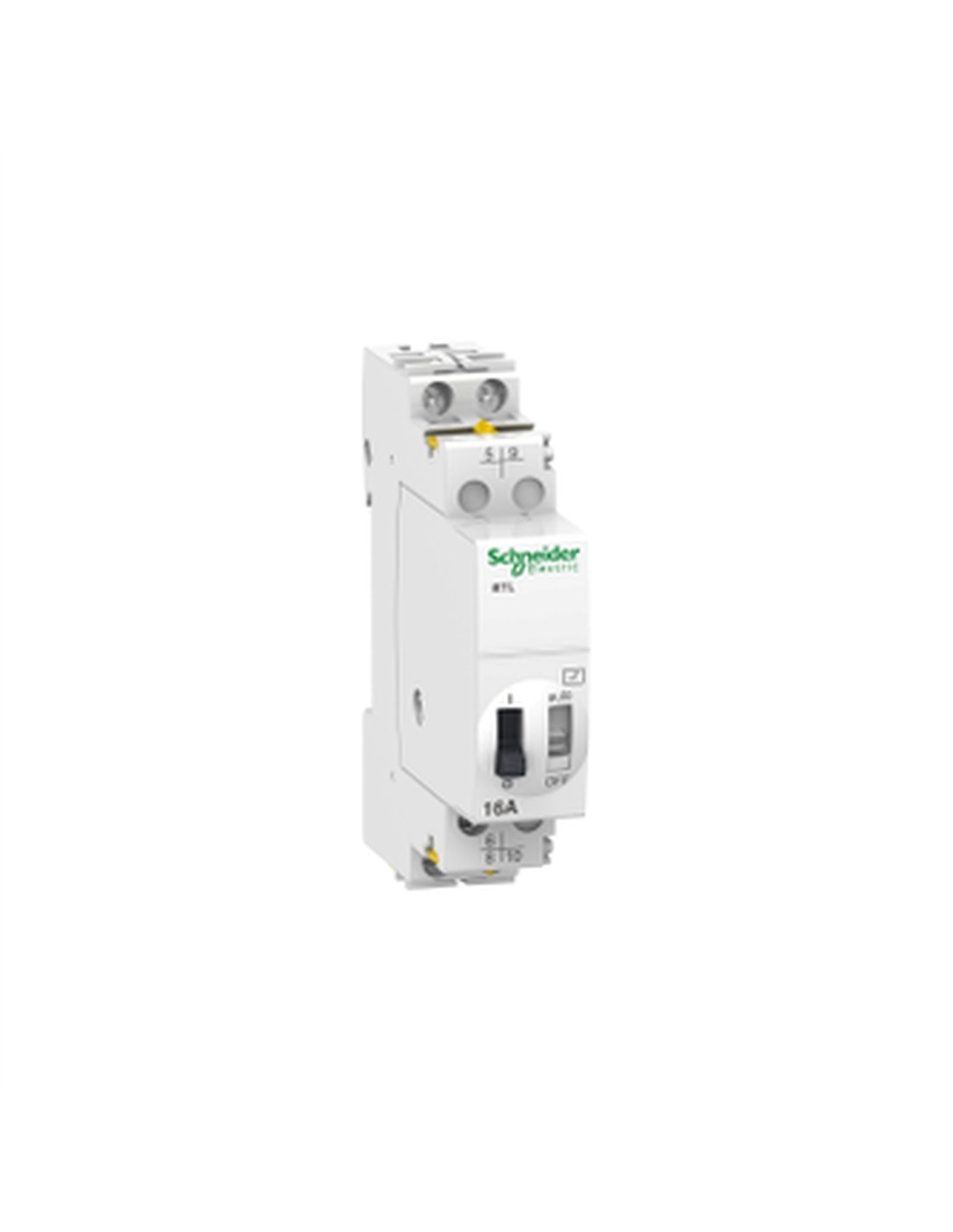

ITL 16A 2P pulse relay expansion unit with remote control, 24VAC/12VDC, IP20

The iETL 2P 16A 24VAC 12VDC is an expansion for pulse relays from the ITL range, specifically designed for remote control in residential and small business applications. This device belongs to the renowned Acti 9 range, offering an efficient and reliable solution for managing electrical circuits. With a 2-pole configuration, including one normally open (NO) and one normally closed (NC) contact, the iETL allows a nominal current of up to 16 A in 415 V AC networks. Its compact design, with dimensions of 60 mm high, 18 mm wide, and 84 mm deep, facilitates its installation on symmetrical 35 mm DIN rails. Key technical features include: Mains frequency: 50/60 Hz; Control type: Lever and remote control; Switching frequency: 5 operations/minute; Minimum pulse duration: 50 ms; Input power supply: 19 VA

This product complies with EN 669-2-2 and EN 669-1 standards and has quality certifications such as GOST, CEBEC, KEMA, IMQ, VDE, and NF, ensuring its reliability and performance under various operating conditions.
