REL. FASE ORDEN Y PRESENCIA 208..480VAC

Phase order / presence relay 208-480V AC

REL. FASE ORDEN Y PRESENCIA 208..480VAC

Phase order / presence relay 208-480V AC

Phase order / presence relay 208-480V AC

Reference IMPO RM17TG00

Available

€131.41

VAT included

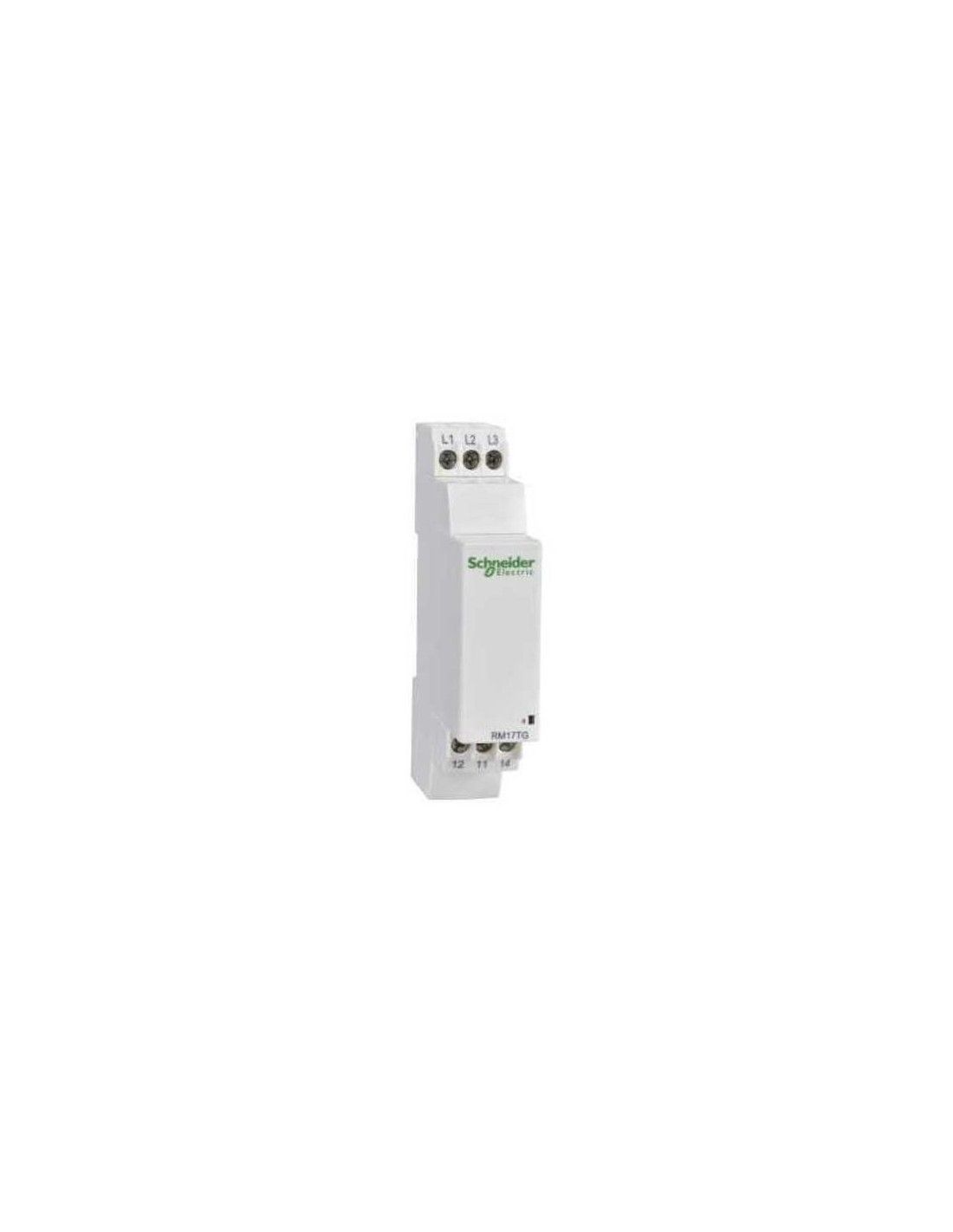

Modular three-phase power supply control relay belonging to the Zelio Control range. This product shows a voltage measurement range from 208 to 480V AC. With regard to voltage, this relay has maximum switching voltage values of 250V AC/DC, supply voltage limits that are set between 183 and 528V AC, and a detection threshold voltage of less than the 100V AC. On the other hand, regarding current values, this model boasts a minimum switching current of 10mA and a nominal output current of 5A. The frequency is set at 50/60Hz. The casing of this relay is made from self-extinguishing plastic that supports an operating temperature of -20°C to 50°C.

In stock 3 Items

Email address

Product Details

EAN	3389119405065
Manufacturer	Schneider
Reference	SCHNEIDER RM17TG00
Nominal voltage (V)	208/480
Rated current (A)	5 A

In stock 3 Items

Reviews (0)

No reviews

GPSR

Fabricante	Schneider Electric España, S.A.
Dirección postal	Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona
Contacto electrónico	[email protected]
Teléfono	+34 930289900
Referencia	IMPO RM17TG00
EAN	3389119405065
