PULSADOR CON PILOTO LUMINOSO VERDE 1C 16A
PULSADOR CON PILOTO LUMINOSO VERDE 1C 16A

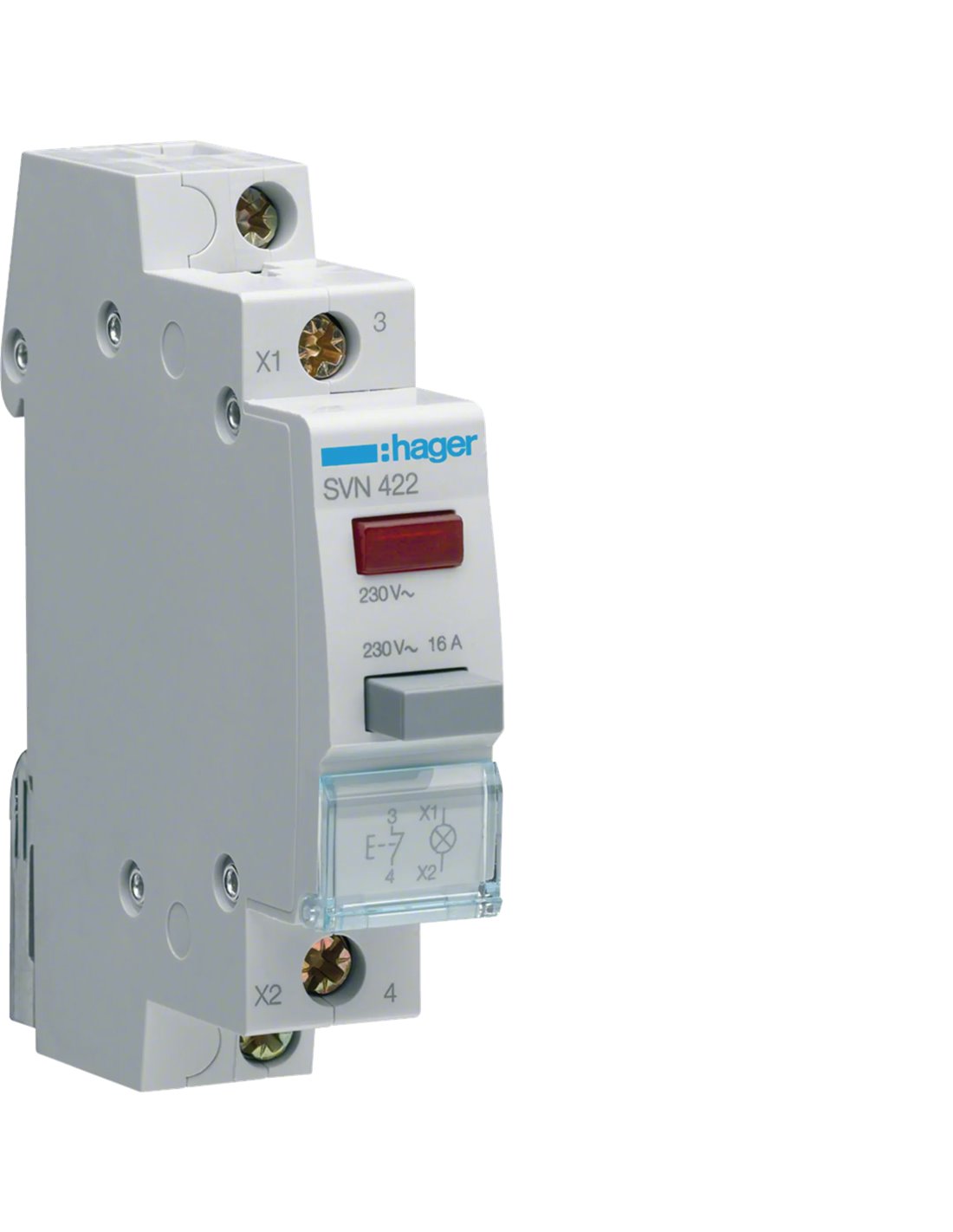

Push button with red LED indicator light (1.2W 16A 250V) IP20 8,3x1,75x6,6cm grey

HAGER SVN422
Out of stock
€55.41
VAT included

The push button with red LED indicator light is a functional accessory with a timeless design, ideal for various electrical applications. Its robust construction and technical features guarantee reliable performance in domestic and industrial environments.


Technical characteristics:
  • Operating voltage: 250V
  • Current: 16A
  • Maximum power consumption: 1.2W
  • Connection: rigid cable 0.75/10mm² and flexible cable 0.75/6mm²
  • Operating temperature: -20 to 50°C
  • Protection level: IP20
  • Dimensions: 8.3x1.75x6.6cm
  • Colour: Grey/Red
  • Material: Plastic

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

Description

The pushbutton with red LED indicator light is a high-quality and functional accessory, designed to offer optimum performance in various applications. With a working voltage of 250V and a NC contact, this pushbutton is ideal for environments where efficient control of the electric current is required. Its compact and modern design fits into any space, guaranteeing both aesthetics and functionality.

  • Dimensions: 8.3 x 1.75 x 6.6 cm
  • Colour: Grey with red indicator light
  • Maximum power consumption: 1.2W
  • Nominal current: 16A
  • Operating voltage: 250V
  • Connection: Rigid cable 0.75/10mm² and flexible cable 0.75/6mm²
  • Operating temperature: -20 to 50°C
  • Protection level: IP20
  • Frequency: 50/60 Hz
  • Material: Plastic
  • Brand: HAGER
  • Reference: 230/250/4000
  • Weight: 0.079 kg

Product Details

Frequency
50
60
High
8,3cm
Width
1,75cm
Colour
Grey
Red
Material
Plástico
Measures
8,3x1,75x6,6cm
Weight (kg)
0,079
Maximum power (W)
1,2
Depth
6,6cm
Protection
IP20
Reference
HAGER SVN422
Nominal voltage (V)
230V
250V
4000
Type of lamp
LED
Type of light
Roja
GPSR Safety warning
No
GPSR Manufacturer information
HAGER / France / 132 Boulevard d'Europe, 67215 Obernai, France / [email protected] / +33 388495050
GPSR EU responsible person
HAGER / France / 132 Boulevard d'Europe, 67215 Obernai, France / [email protected] / +33 388495050
GPSR e-mail manufacturer
[email protected]
