DINUY MI EL3 004
Out of stock
€60.00
VAT included

The modular staircase timer is an efficient device designed for electrical installations with 3 or 4 wires. Its DIN rail mounting makes it easy to integrate into electrical systems, while its compact and functional design allows for versatile use in different environments.

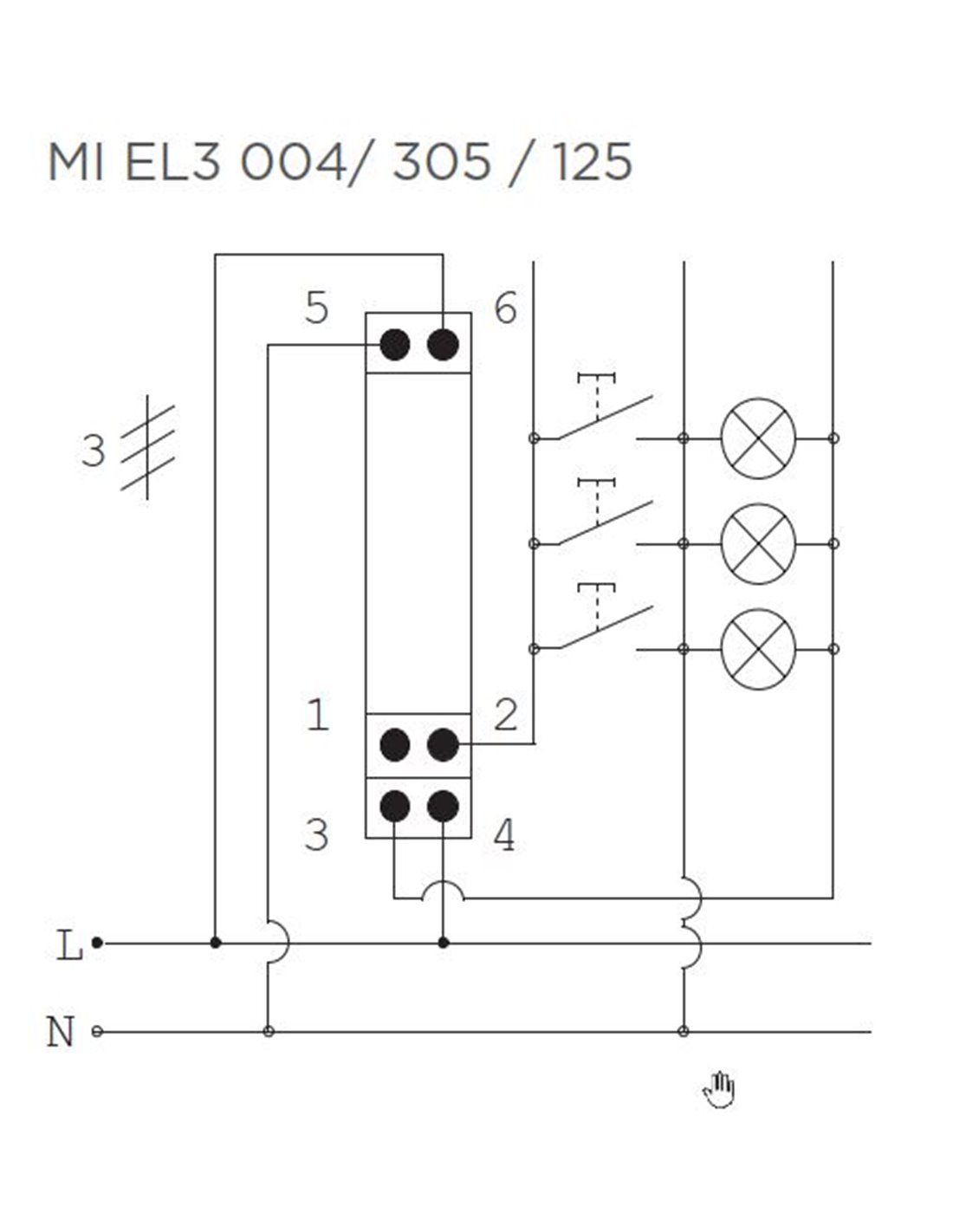

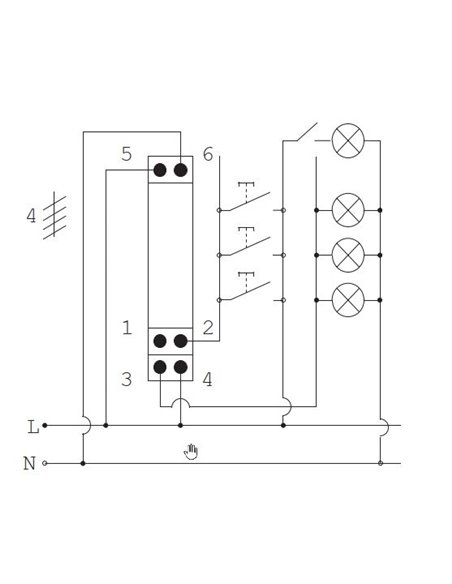

  • Model: 3- or 4-wire installation

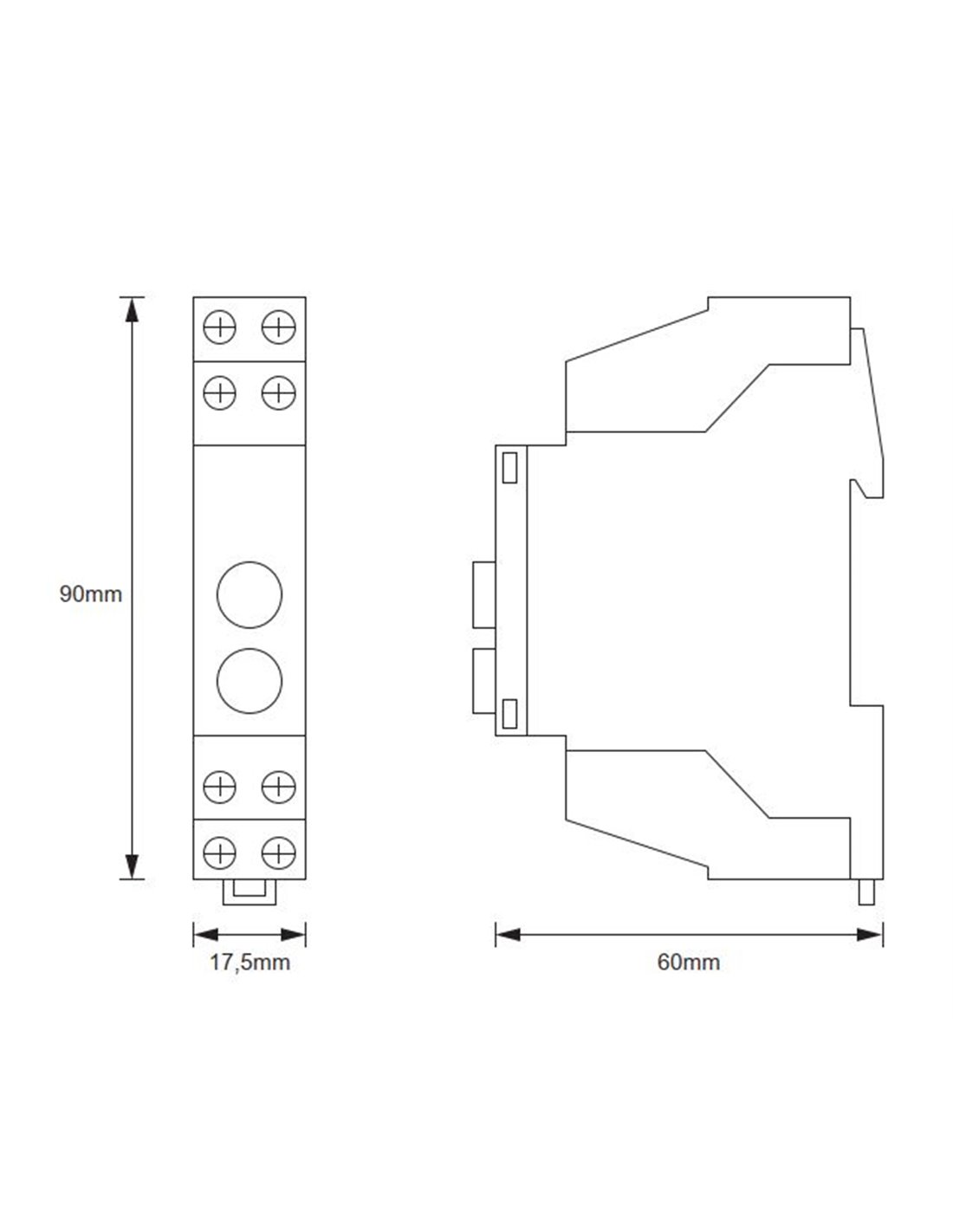

  • Dimensions: 9.05x1.75x5.3 cm
  • Fixation: DIN rail
  • Switch: Manual two-position (automatic or permanent on)
  • Resettable: At any time during the timing
  • IP: IP20
  • Colour: Grey
  • Capacity: 16A 230V
  • Material: Plastic
  • Consumption: 0.08 A

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

Description

The modular staircase timer is a device designed to facilitate lighting control in various spaces. With a capacity of 16A and a voltage of 230V, this model is ideal for installations that require efficient energy management. Its compact and functional design allows easy integration into electrical systems, guaranteeing optimal performance.

  • Model for installation with 3 or 4 wires.
  • Dimensions: 9.05 x 1.75 x 5.3 cm.
  • DIN rail fixing, ensuring a safe and tidy installation.
  • Two-position manual switch: automatic on or permanent on.
  • Resettable at any time during the timing, offering flexibility in use.
  • IP20 rating, suitable for indoor environments.
  • Grey colour, which adapts to different decorations and styles.
  • Made of plastic, guaranteeing durability and resistance.
  • Compatible with 230V voltages and 0.08A current.
  • Brand: DINUY.

Product Details

Timer
Yes
Frequency
50
High
9,05cm
Rated current (A)
16
Width
1,75cm
Colour
Grey
Sensitivity
100
Material
Plástico
Measures
9,05x1,75x5,3cm
Weight (kg)
0,08
Power (W)
400
2400
3000
Depth
5,3cm
Protection
IP20
Reference
DINUY MI EL3 004
Adjustable
Yes
Nominal voltage (V)
230V
Current type
AC
GPSR Safety warning
No
GPSR Manufacturer information
Dinuy S. A. / Spain / Auzolan Kalea, 2, 20303 Irun, Gipuzkoa / [email protected] / +34 943627988
GPSR EU responsible person
Dinuy S. A. / Spain / Auzolan Kalea, 2, 20303 Irun, Gipuzkoa / [email protected] / +34 943627988
GPSR e-mail manufacturer
[email protected]
