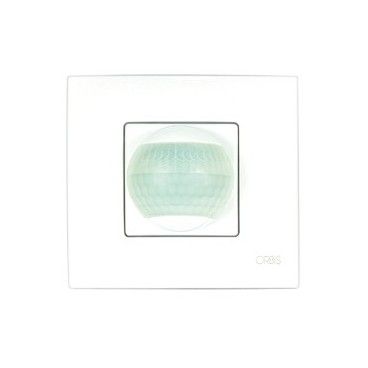

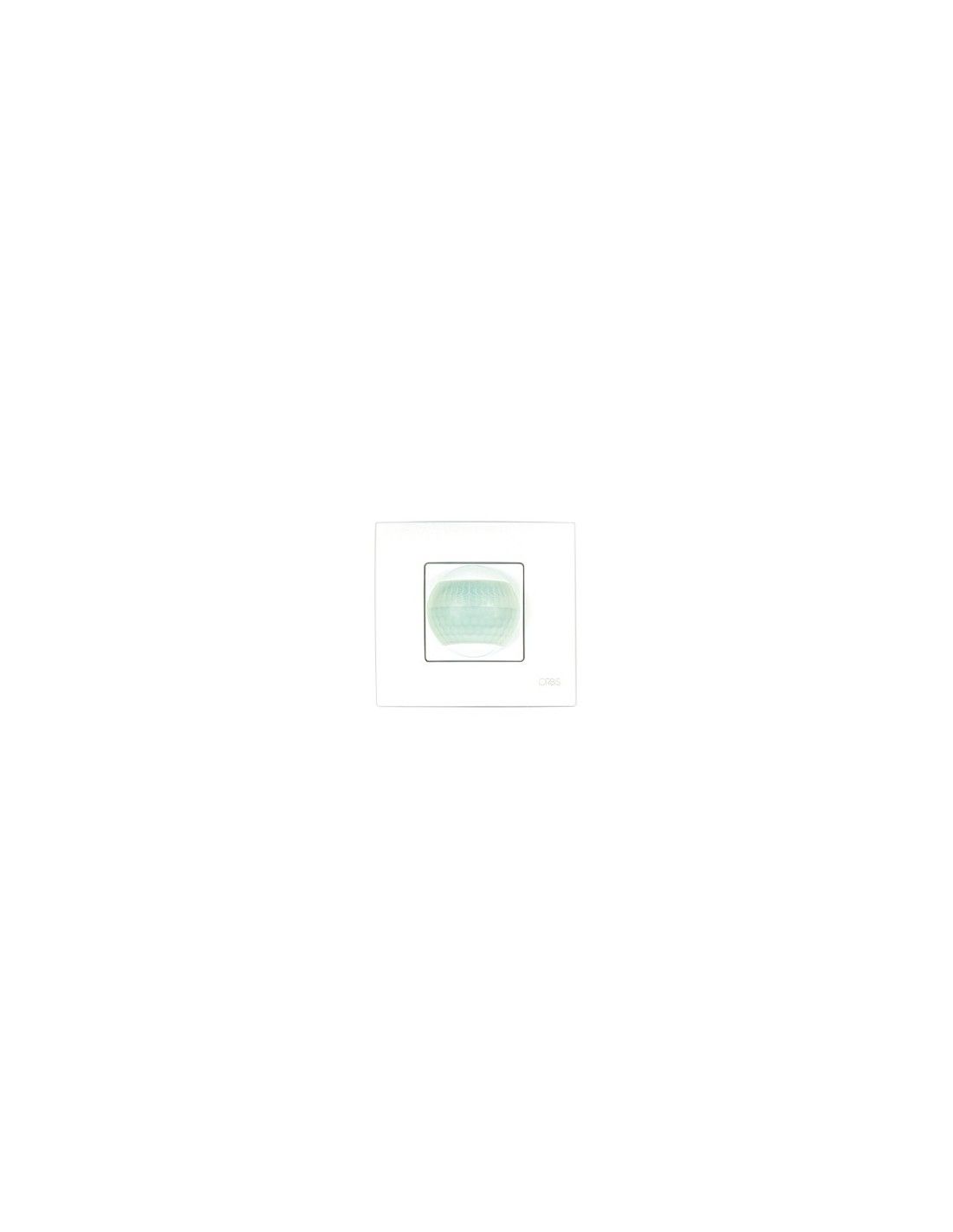

Motion detector for universal box 200º Orbis Orbimat OB132612

Motion Detector, for installation in mechanism box of 65x65 mm

In just a few minutes we can replace the manual switch without the need to perform works.

Allows you to push further so that it can operate as a timer ladder.

A manual control hidden in three positions: auto, on or off permanently.

Relay, step-by-zero for better switching of loads type LED, fluorescence or low power consumption.

LED status: waiting/spotting or light conditions top.

Terminals quick connection.

Equipped with temperature compensation.

Parameters adjustable: timing and sensitivity to light.

Regulation staggered timing.

Pulse function: 1 s ON/4 s OFF.

Power Supply:230 Va.c., 50-60 Hz

Power break:6 To 230 Va.c.

Timing: 1s to 20 min.

Light sensitivity:adjustable from 5-2.000 lux

Temp. operating:0 ºC to +40 ºC

Degree of protection:IP 20 according to en 60529

Angle of detection:200 °

Field of detection:Adjustable from 0 to 6 m at 20 ° c

Installation height:1.5 m

Maximum loads

Incandescent lamps:1300 W

Fluorescent:1300 VA

Halogen low-voltage:1300 VA

Halogens (230V AC):1300 W

Lamps low power consumption:1300 VA

Leds:500 VA
