Coaxial cable for TV T100plus white copper 100m Televes 2141

• Drivers manufactured in copper
• Euroclear Ace
• Sheet antimigratoria that prevents the migration of the additives d cover and humidity to the interior of the cable, thus avoiding deterioration of its characteristics

• Outer covering of PVC in white color
• Characteristic impedance of 75 ohm

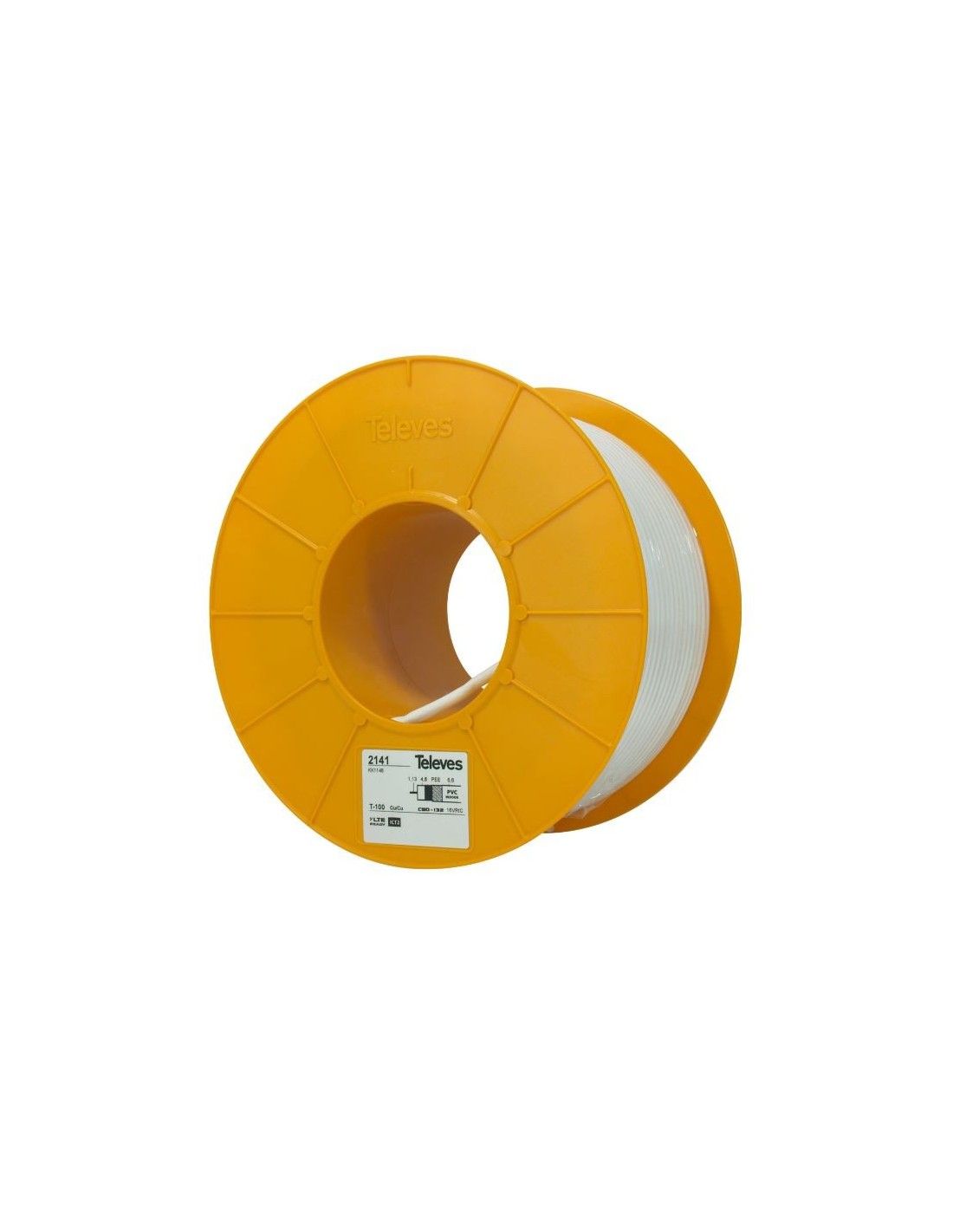

• Coil of plastic 100m

Cable coaxial double-layer Class B

Offer 2 layers of shield and its constructive qualities make it a Class B, in compliance according to the norm en 50117:

• 5 - 30 MHz => TI < 15 mΩ/m
• 5 - 1000 MHz => SA > 75 dB
• At 1000 - 2000 MHz => SA > 65 dB
• To 2000 - 3000 MHz => SA > 55 dB

Where, the transfer impedance (TI) defines the effectiveness of the shielding at low frequencies, and the attenuation of shielding (SA) is defined between 30 and 3000MHz.
