UNI. AVANZ C10 3P 8-32A 24V DC
UNI. AVANZ C10 3P 8-32A 24V DC

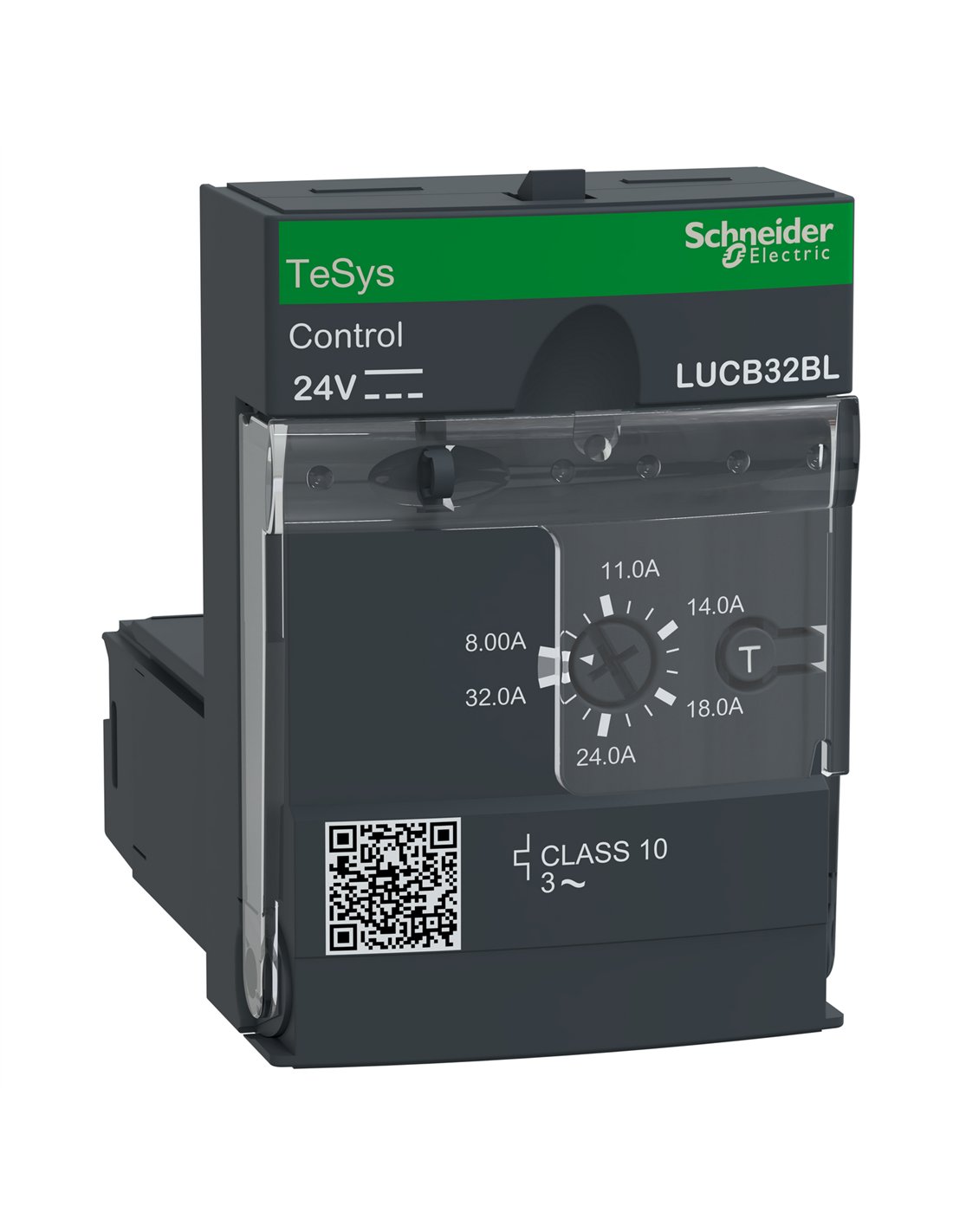

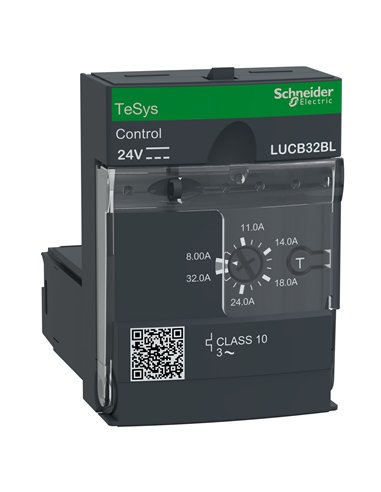

LUCB Advanced Control Unit - 8-32 A - 24 V DC - Class 10 protection for motors

IMPO LUCB32BL
Available
€183.59
VAT included
The LUCB advanced control unit is a diagnostic device for TeSys U systems, designed for three-phase motors up to 15 kW. It offers comprehensive protection against overloads, short circuits, and phase failures, operating at 24 V DC. Its design complies with various international regulations and sustainability standards.
10 Items

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

Description

The LUCB advanced control unit is an essential component in three-phase motor control systems, designed to be integrated into the LUB320, LUB380 and LUB380 power bases. This device allows the management of motors up to 15 kW at 400 V, offering a robust and efficient solution for various industrial applications.

  • Adjustable rated current: 8-32 A.
  • Overload trip class: Class 10.
  • Short circuit protection: up to 13 x Irmax.
  • Overcurrent: 14.2 x Ir.
  • Protection against phase loss and insulation failure.
  • Local and remote thermal protection alarm.
  • Motor control with 24 V DC voltage.
  • Certifications: IEC, UL, CSA, CCC, EAC, Marine.
  • Compliant with Green Premium (RoHS/REACh).
  • Operating temperature range: -25 to 70 °C.

Product Details

EAN
3389110364118
Reference
IMPO LUCB32BL
GPSR Safety warning
No
GPSR Manufacturer information
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer
[email protected]
