trafo nucleo abierto 250/5A 3VA cl.3
trafo nucleo abierto 250/5A 3VA cl.3

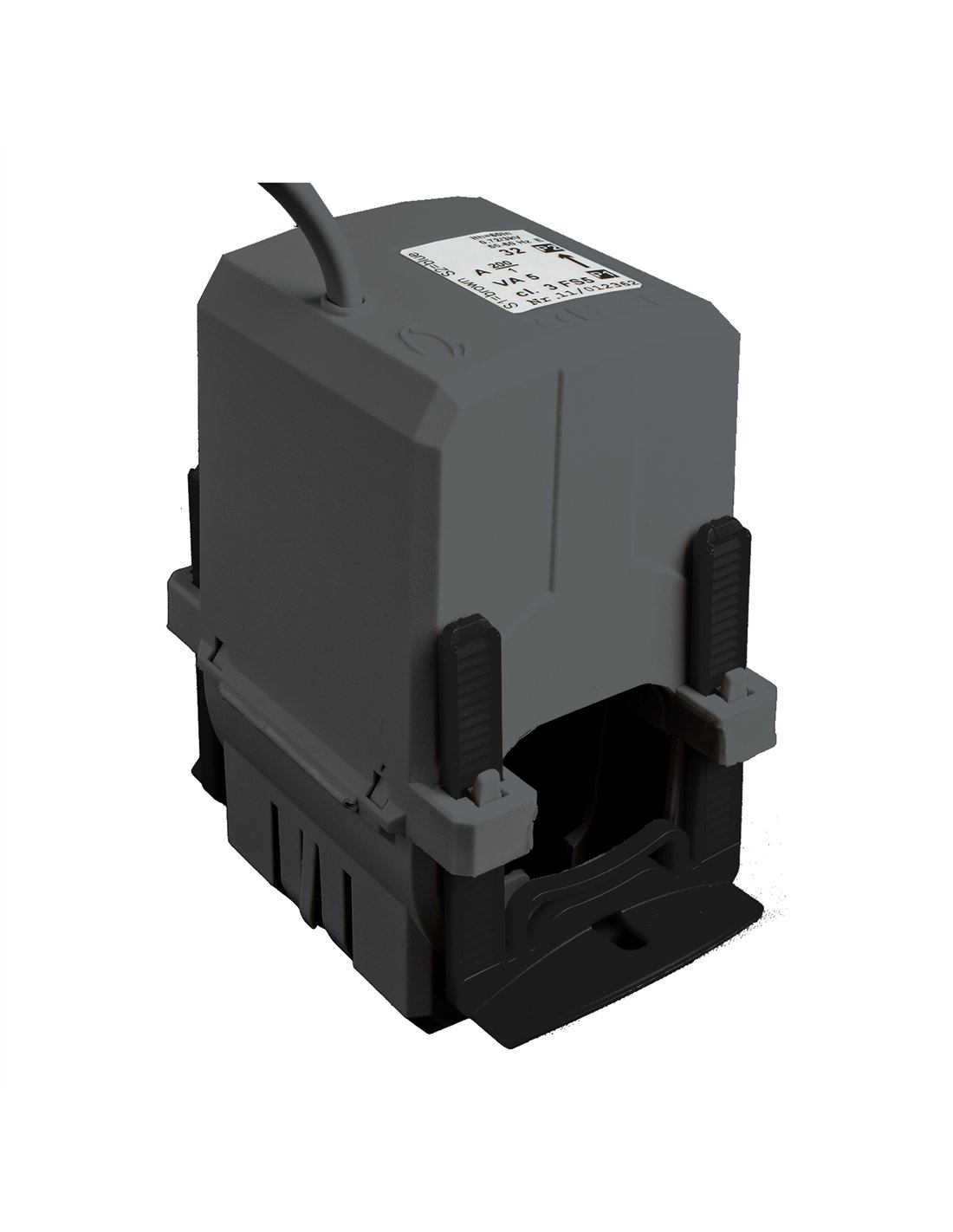

POWERLOGIC 250/5A 3VA class 3 current transformer with simplified installation

IMPO METSECT5HG025
Out of stock
€166.94
VAT included
Open-core current transformer, designed for diverse applications with a compact size that accommodates different conductors. Its tropicalized rating allows for use in extreme environmental conditions, while its high accuracy exceeds the nominal value. It facilitates installation in retrofit projects.

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

Description

The 250/5A 3VA Class 3 open-core current transformer is a device designed for diverse applications in industrial environments. Its compact design allows for use with different conductor sizes, facilitating integration into existing electrical systems. This transformer is classified as tropicalized, making it suitable for extreme environmental conditions and ensuring reliable performance across a wide temperature range.

  • Range: PowerLogic
  • Product Type: Current Transformer
  • Secondary Current: 5 A
  • Accuracy Class: Class 3 at 3 VA
  • Rated Current: 250 A
  • Transformer Type: Standard for cable, split core
  • Turns Ratio: 250/5
  • Conventional Thermal Current: 300 A
  • Permissible Current: 15000 A for 1 s
  • Rated Operating Voltage: <720 V 50 Hz
  • Rated Insulation Voltage: 3 kV 50 Hz for 1 minute
  • Mounting Mode: With clip
  • Dimensions: 59.2 mm (width) x 96.4 mm (height) x 89.2 mm (depth)
  • Electrical insulation class: Class E
  • Operating temperature: -5…50 °C
  • Standards: DIN EN 60044-1, DIN EN 61869-1, DIN EN 61869-2, VDE 0414

Product Details

EAN
3606489608286
Reference
IMPO METSECT5HG025
GPSR Safety warning
No
GPSR Manufacturer information
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer
[email protected]
