trafo nucleo abierto 200/5A 1,5VA cl.1

trafo nucleo abierto 200/5A 1,5VA cl.1

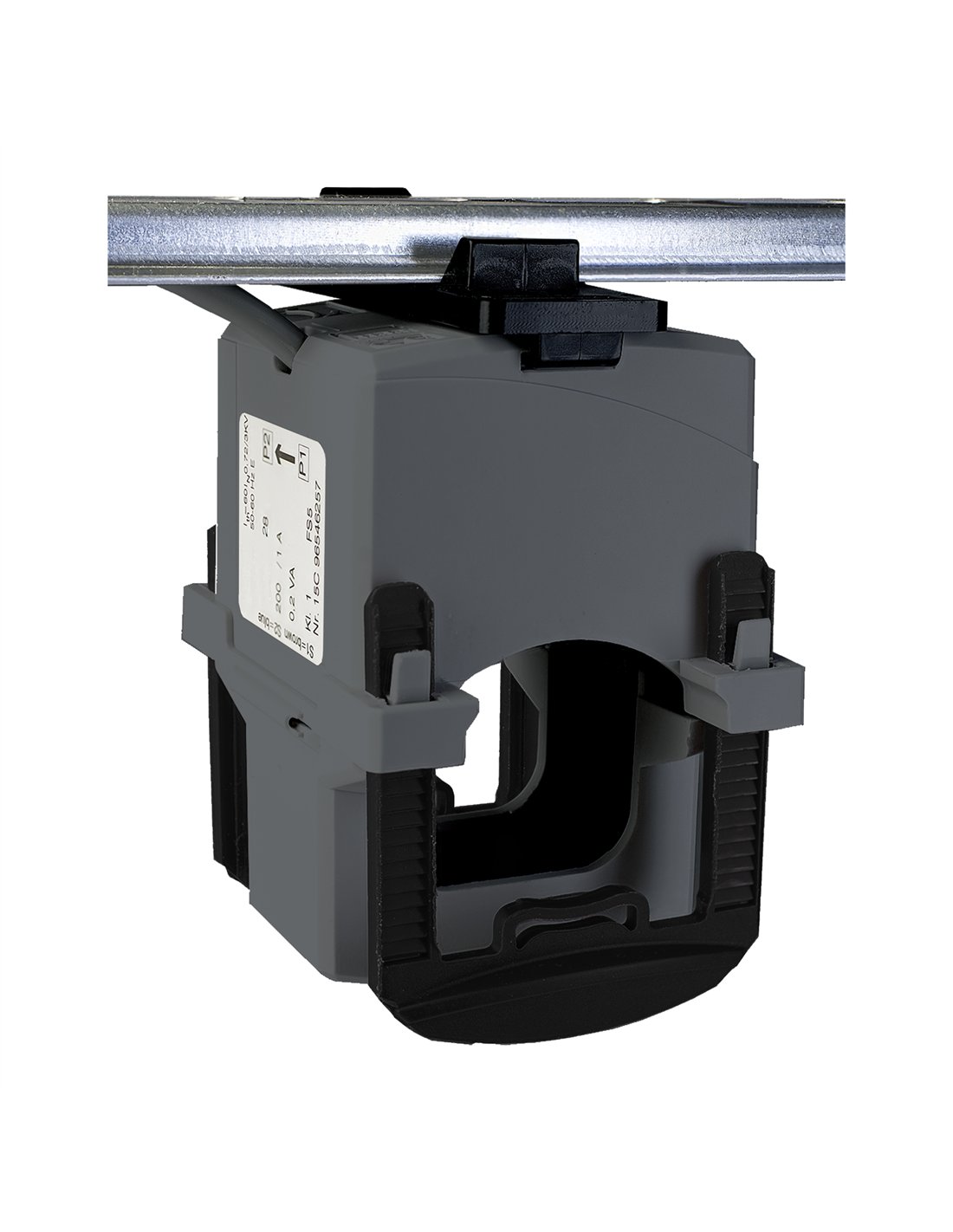

POWERLOGIC 200/5A 1.5VA Class 1 Current Transformer with Simplified Installation

Reference IMPO METSECT5HA020

Available

€159.79

VAT included

Split-core current transformer, designed for diverse applications with a compact size that accommodates different conductors. Its tropicalized rating allows for use in extreme environmental conditions, and its accuracy exceeds the nominal rating, facilitating simplified installation in retrofit projects.

In stock 9 Items

Email address

Description

The 200/5A 1.5VA Class 1 open-core current transformer is a device designed for diverse applications in industrial environments. Its split-core construction allows for quick and easy installation, making it a versatile option for electrical system upgrades. This transformer is rated for operation in extreme environmental conditions, ensuring reliable performance in a wide range of situations.

Product Type: Current Transformer
Rated Current: 200 A
Secondary Current: 5 A
Accuracy Class: Class 1 at 1.5 VA
Turns Ratio: 200/5
Conventional Thermal Air Current: 240 A
Permissible Current: 12000 A for 1 s
Rated Operating Voltage: <720 V 50 Hz
Rated Insulation Voltage: 3 kV 50 Hz for 1 minute
Mounting Method: Clip-on
External Dimensions: 49 mm (width) x 80.1 mm (height) x 59 mm (depth)
Electrical insulation class: Class E
Operating temperature: -5…50 °C
Standards: DIN EN 60044-1, DIN EN 61869-1, DIN EN 61869-2, VDE 0414

Product Details

EAN: 3606489608156
Reference: IMPO METSECT5HA020
GPSR Safety warning: No
GPSR Manufacturer information: Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person: Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer: [email protected]

In stock 9 Items
