TC 400 5 PARA MONTAJE EN BARRAS 32X65
TC 400 5 PARA MONTAJE EN BARRAS 32X65

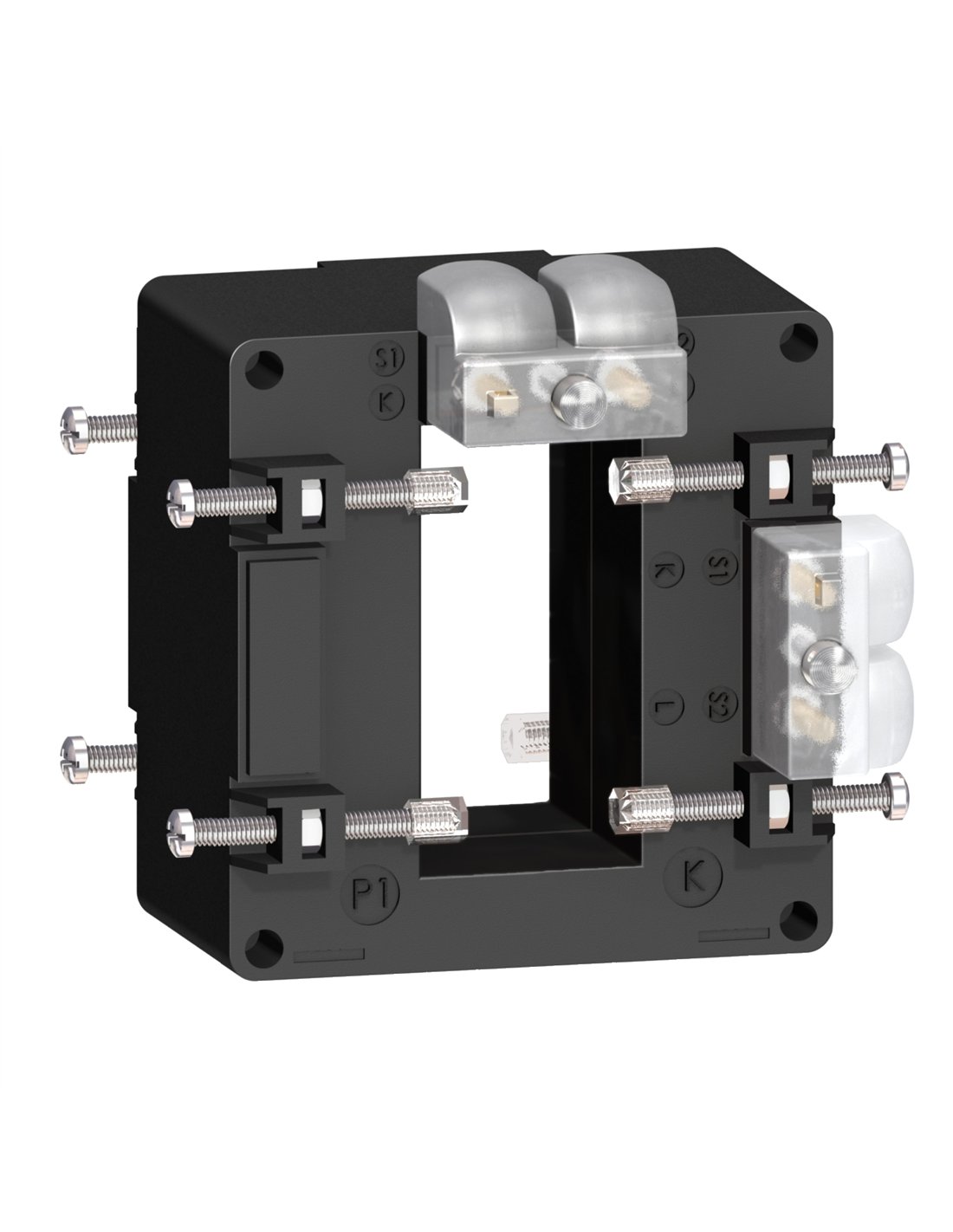

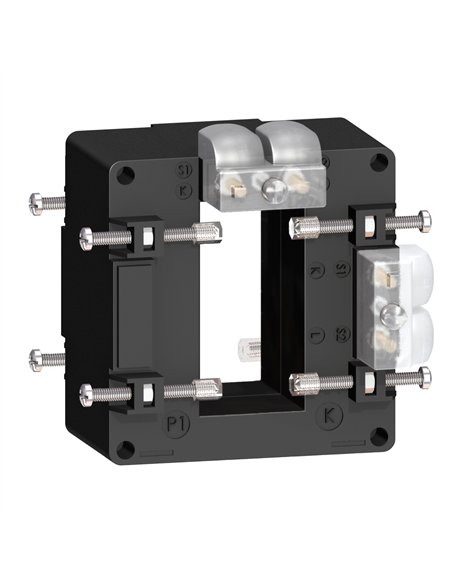

POWERLOGIC 400/5A current transformer, class 0.5, IP20, compact size 32x65 mm

IMPO METSECT5DA040
Available
€54.24
VAT included
The 400/5A double-busbar 32x65 current transformer is a solid-core device designed for a variety of applications. Its compact size allows it to accommodate different conductors, while its tropicalized rating makes it ideal for extreme environmental conditions, ensuring high accuracy and versatility in assembly.
8 Items

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

Description

The 400/5A double busbar 32x65 current transformer is a device designed for diverse applications, complying with IEC standards. Its solid core and compact size make it suitable for different conductor configurations, ensuring optimal performance in demanding environments.

  • Rated current: 400 A
  • Secondary current: 5 A
  • Accuracy class: Class 0.5 at 4 VA and Class 1 at 8 VA
  • Turns ratio: 400/5
  • Operating temperature: -25 to 60 °C
  • Protection rating: IP20
  • Rated operating voltage: <720 V AC 50/60 Hz
  • Rated insulation voltage: 3 kV
  • Conventional thermal current in air: 24 kA
  • Mounting method: Insulated locking screw
  • Dimensions: 90 mm (width) x 94 mm (height) x 90 mm (depth)
  • Weight: 0.531 kg
  • Certifications: EAC, CE

Product Details

EAN
3303431123636
Protection
IP20
Reference
IMPO METSECT5DA040
GPSR Safety warning
No
GPSR Manufacturer information
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer
[email protected]
