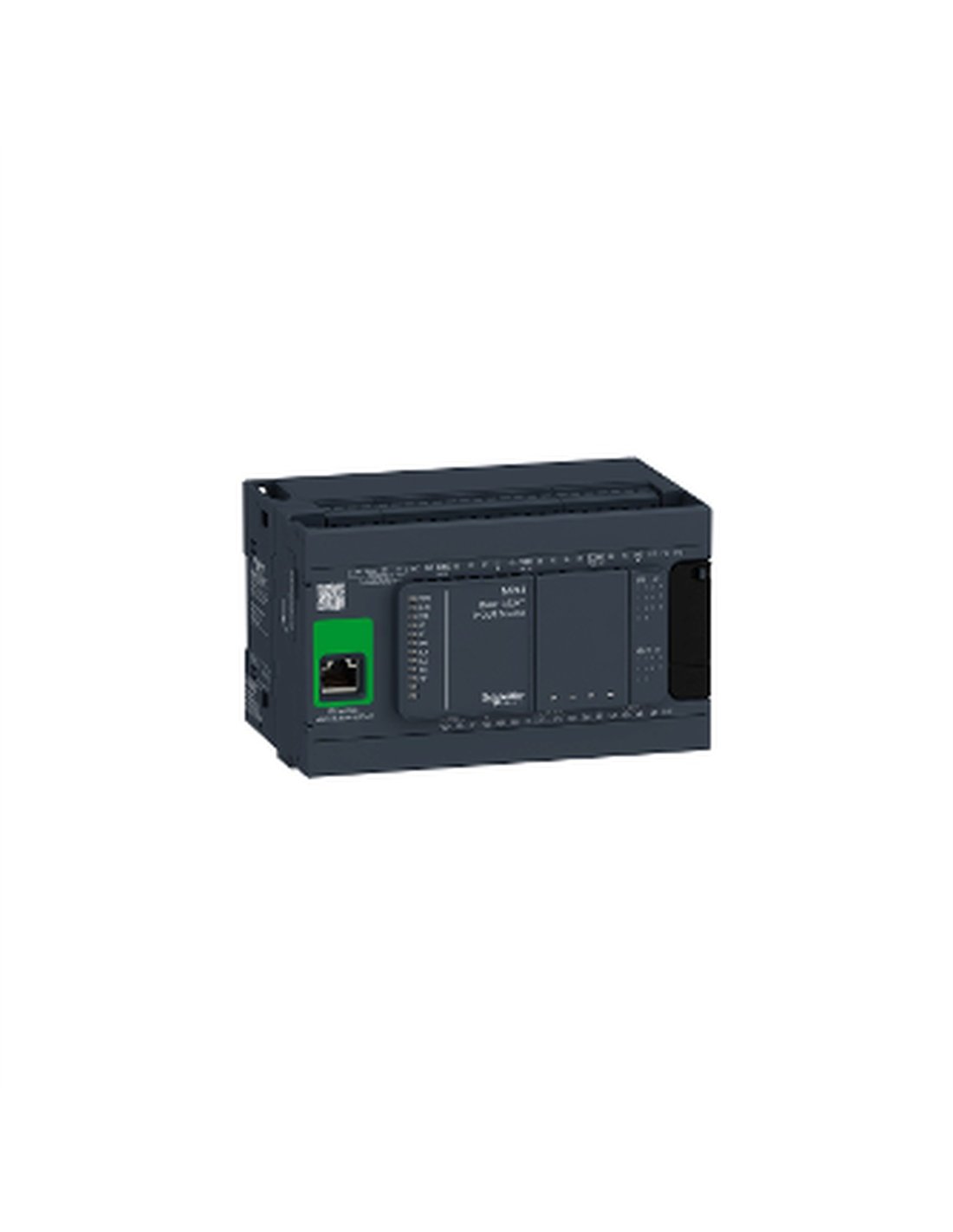

MODICON M241 Programmable Logic Controller, 24 V DC, 24 Digital I/O, 10 Fast Outputs

The Modicon M241 series DC 14E/10S PNP Ethernet CPU is a programmable logic controller (PLC) designed for robust and efficient performance in industrial applications. With a rated supply voltage of 24 V DC, this device features 14 discrete inputs and 10 outputs, including 4 fast outputs, making it a versatile solution for process control and automation. Its design complies with IEC 61131-2, ensuring compatibility and reliability in demanding environments. The CPU offers 8 MB of program memory and 64 MB of system memory, enabling efficient data and task management. Furthermore, its Ethernet interface and serial communication ports facilitate integration into industrial networks, supporting protocols such as Modbus TCP and Ethernet/IP. With a response time of up to 2 µs for fast inputs and a maximum output frequency of 100 kHz, this PLC ensures precise and rapid process control.

• Supply voltage: 24 V DC
• Number of digital I/O: 24
• Discrete outputs: 10 transistors, 4 fast outputs
• Response time: 50 µs for inputs, 2 µs for fast inputs
• Memory capacity: 8 MB (program), 64 MB (system)
• Communication protocols: Modbus TCP, Ethernet/IP
• Operating temperature: -10 to 50 °C
• Protection degree: IP20
• Vibration resistance: 3 gn at 8.4 to 150 Hz
• Certifications: cULus, IACS E10, RCM
