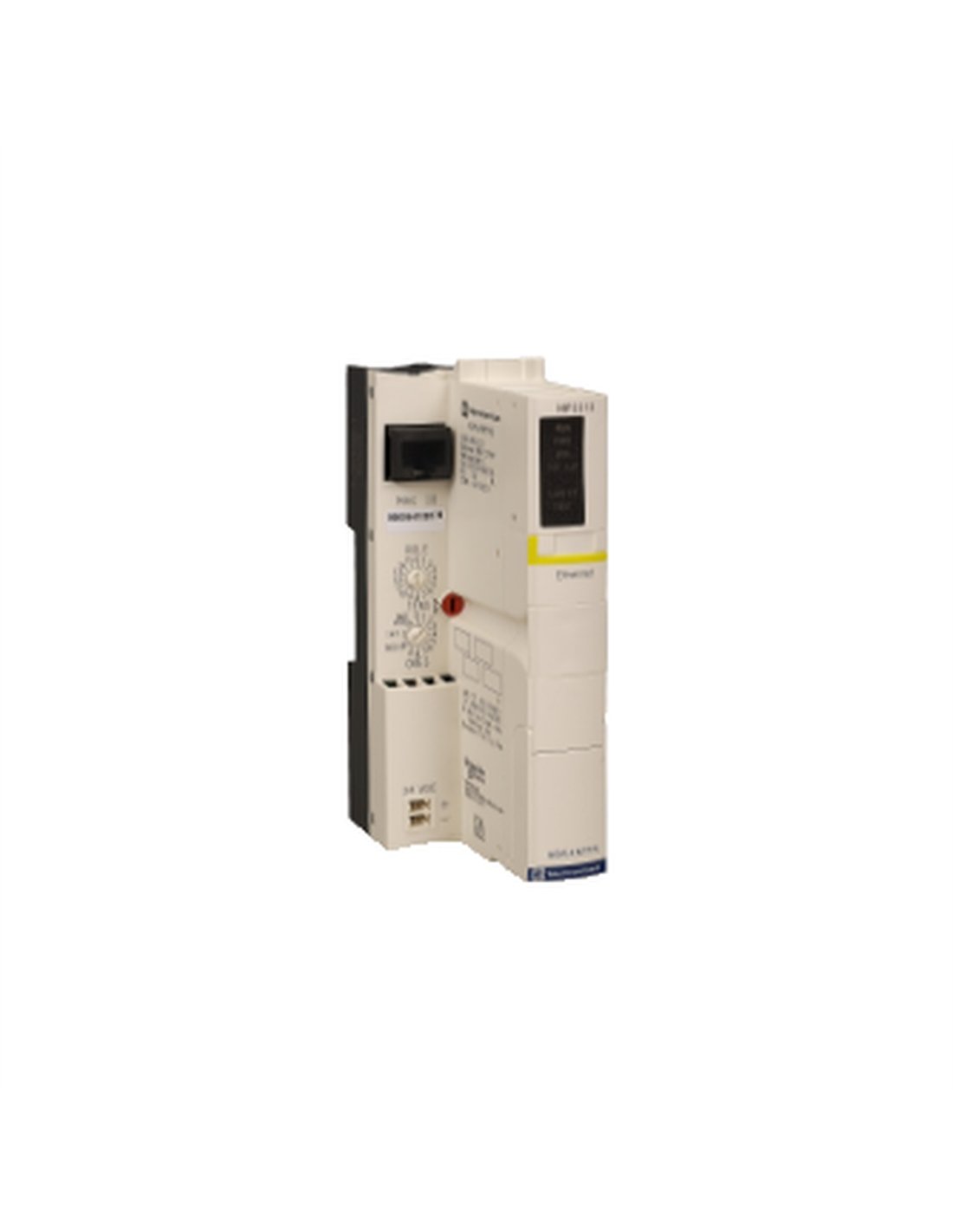

MODICON 10BASE-T Standard Network Interface Module, 1 Port, 24 V DC, IP20

The STB,Com,Eth MB TCP/IP 1 Port standard network interface module is part of the Modicon STB range of distributed I/O solutions, designed to provide robust and efficient connectivity in industrial environments. Operating under the Transparent Ready concept, this device allows the integration of up to 256 devices per segment, with a 10BASE-T Ethernet port guaranteeing a transmission speed of 10 Mbit/s. Its ability to support a bus of up to 3000 m with a fiber optic connection makes it a versatile option for various applications.

The module features an industrial LAN structure and can manage up to 32 addressable I/O modules per island. It also includes SNMP communication and Modbus TCP/IP messaging, facilitating configuration and diagnostics via its built-in web interface.

• Ethernet Port: 10BASE-T
• Number of segments: 1 primary, maximum 6 extensions
• Transmission speed: 10 Mbit/s
• Operating temperature: 0…60 °C
• Protection rating: IP20
• Electromagnetic compatibility: IEC 61131-2
• Dimensions: 70 mm (depth) x 128.3 mm (height) x 40.5 mm (width)
• Weight: 0.13 kg
• Certifications: CSA, UL, ATEX Cat 3G
• Status LEDs: Indicators for status, error, and power
