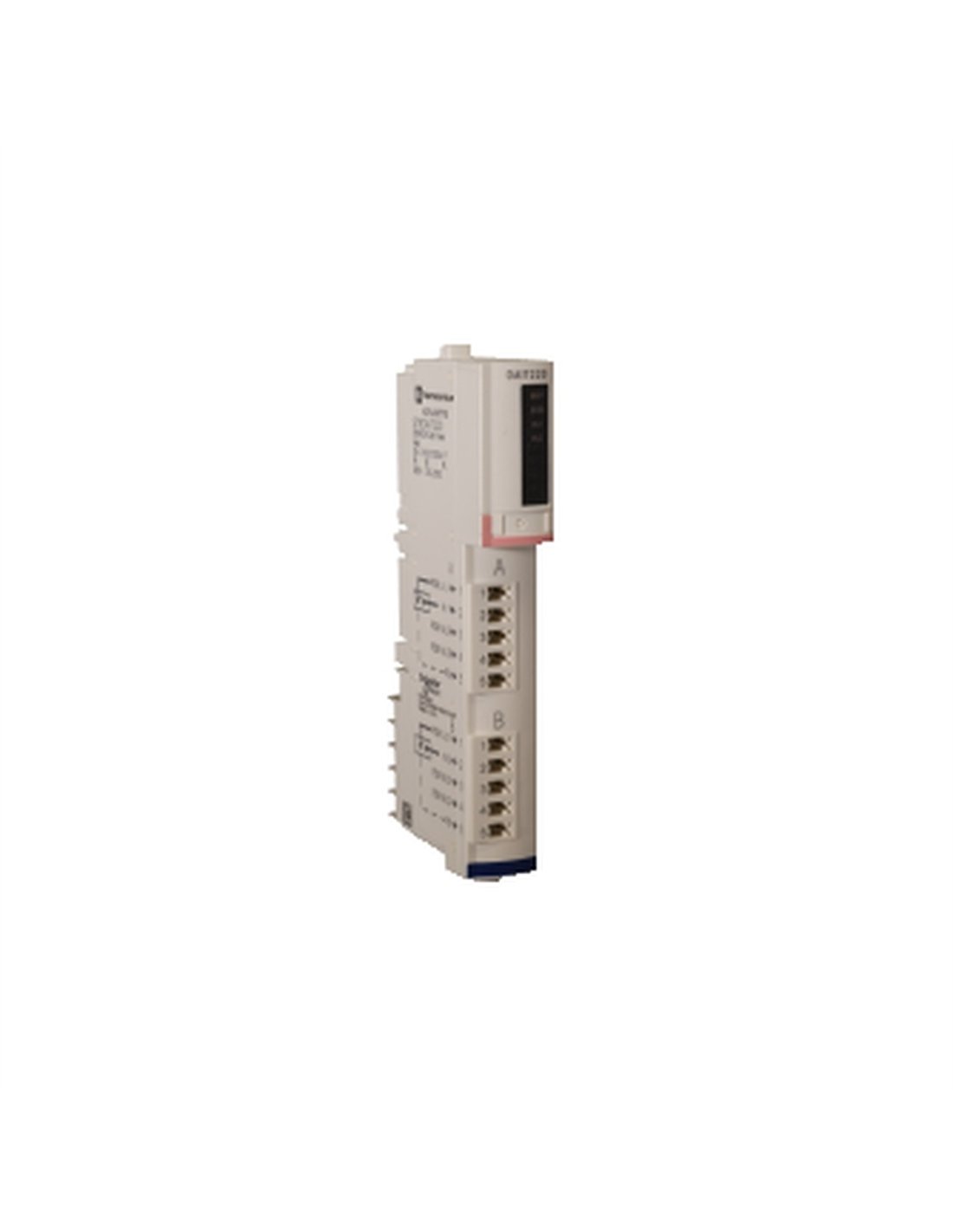

SCHNEIDER STB Standard Digital Input Kit, 2 inputs, 230 V AC, IP20, 65.1 mm depth

The STB,Std,02 ED,230vAC Kit_STBXTS is a distributed I/O solution from the Modicon STB range, designed for industrial applications requiring standard digital inputs. This kit includes essential components such as the STBXTS1110 module, a 5-pin screw connector, the STBDAI7220 module, the STBXTS2110 spring clamp connector, and the STBXBA2000 base. With a total of 2 digital inputs, this system operates at 230 V AC, guaranteeing reliable performance in demanding environments. Key technical features include: Supported voltage: 265 V, with an absolute maximum of 400 V for 20 ms. Mains frequency: 50/60 Hz, with frequency limits of 47 to 63 Hz. Guaranteed current: <= 2 mA (state 0) and>= 4 mA (state 1). Response time: 1.5 ms for both off-to-on and on-to-off. Power supply protection with integrated 10 A fuse. Isolation between channels and logic bus: 1780 V for 1 minute. Compatibility with power distribution modules. STBPDT2100/2105 and STBXBA2000 I/O base.

Operating temperature: 0 to 60 °C and storage temperature: -40 to 85 °C.

Protection rating: IP20 according to IEC 61131-2 class 1.

Product weight: 0.122 kg.
