STB,Std,04 EA 16bits,4-20mA Kit_STBXTS
STB,Std,04 EA 16bits,4-20mA Kit_STBXTS

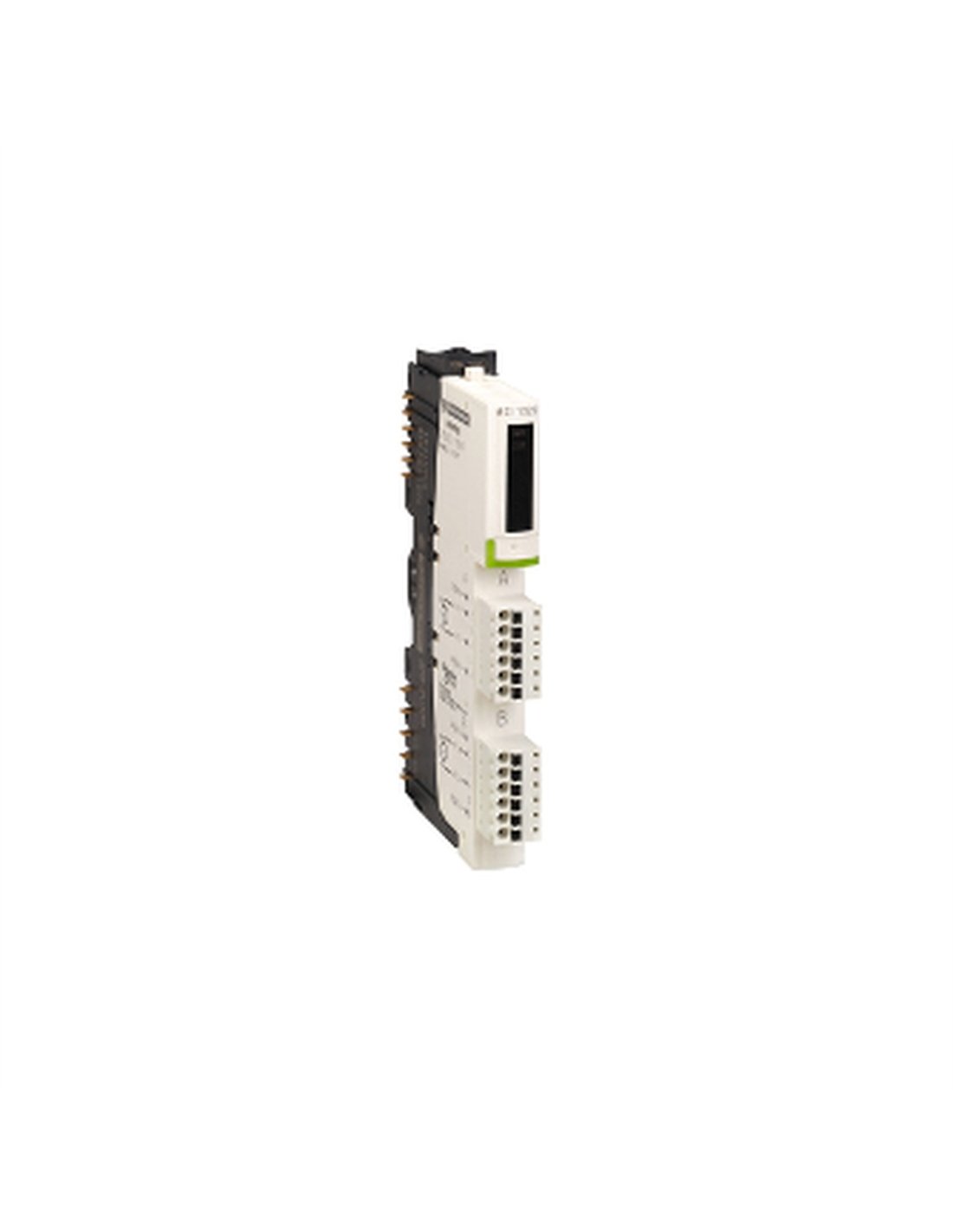

MODICON 4-Channel Analog Input Kit 4-20 mA, 15-bit, IP20, 24 V DC

IMPO STBACI0320K
Available
€597.85
VAT included
The Modicon STB standard analog input kit, consisting of modules and connectors, allows for 4-20 mA current measurement with 15-bit resolution. Ideal for industrial applications, it offers high accuracy and short-circuit protection. Compatible with the STBXBA2000 base.
8 Items

Description

The STB,Std,04 EA 16bit,4-20mA Kit_STBXTS is a standard analog input solution from the Modicon STB range, designed for industrial applications requiring precise and reliable control. This kit includes essential components such as the STBACI0320 module, which allows the connection of up to four analog inputs with a 15-bit resolution. Its ability to handle current signals from 0 to 20 mA and from 4 to 20 mA makes it a versatile option for various applications.

The kit consists of:

  • STBXTS2100: 6-terminal spring clamp connector
  • STBXTS1100: 6-terminal screw connector
  • STBXBA2000 base
  • STBACI0320 module

Technical features include:

  • 10 ms update time
  • Integral linearity of +/- 0.05% EC
  • Short circuit protection
  • 1780 V isolation between channels and logic bus
  • Operating temperature range of -25 to 70 °C
  • IP20 protection rating
  • Current consumption of 95 mA at 5 V DC for logic bus
  • Certifications: CSA, UL, NF, ATEX Cat 3G
  • Vibration resistance of +/-0.35 mm at 10-58 Hz
  • Dimensions: 128.3 mm (width) x 18.4 mm (height) x 70 mm (depth)

This kit is ideal for industrial environments that require a high level of accuracy and reliability in analog data acquisition.

Product Details

EAN
3595863948288
Manufacturer
SCHNEIDER
Reference
SCHNEIDER STBACI0320K
GPSR Safety warning
No
GPSR Manufacturer information
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer
[email protected]
