Nebulization Kit

Nebulization kit.

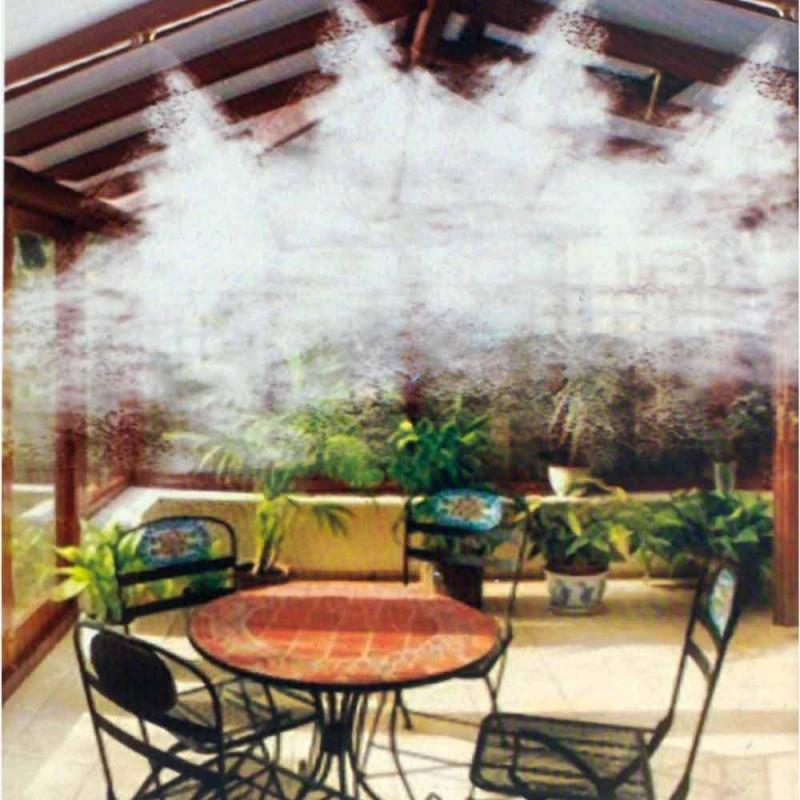

- Air conditioning by spray water, easy to install. Lower the temperature to 11ºC. Achieve a cooling curtain that will insulate external heat from refrigerated air. Its effectiveness is based on the characteristics of water evaporation. Intended for outdoor use and optimal operation occurs with a water pressure between 3.5 and 12 bar (50 to 200 psi).

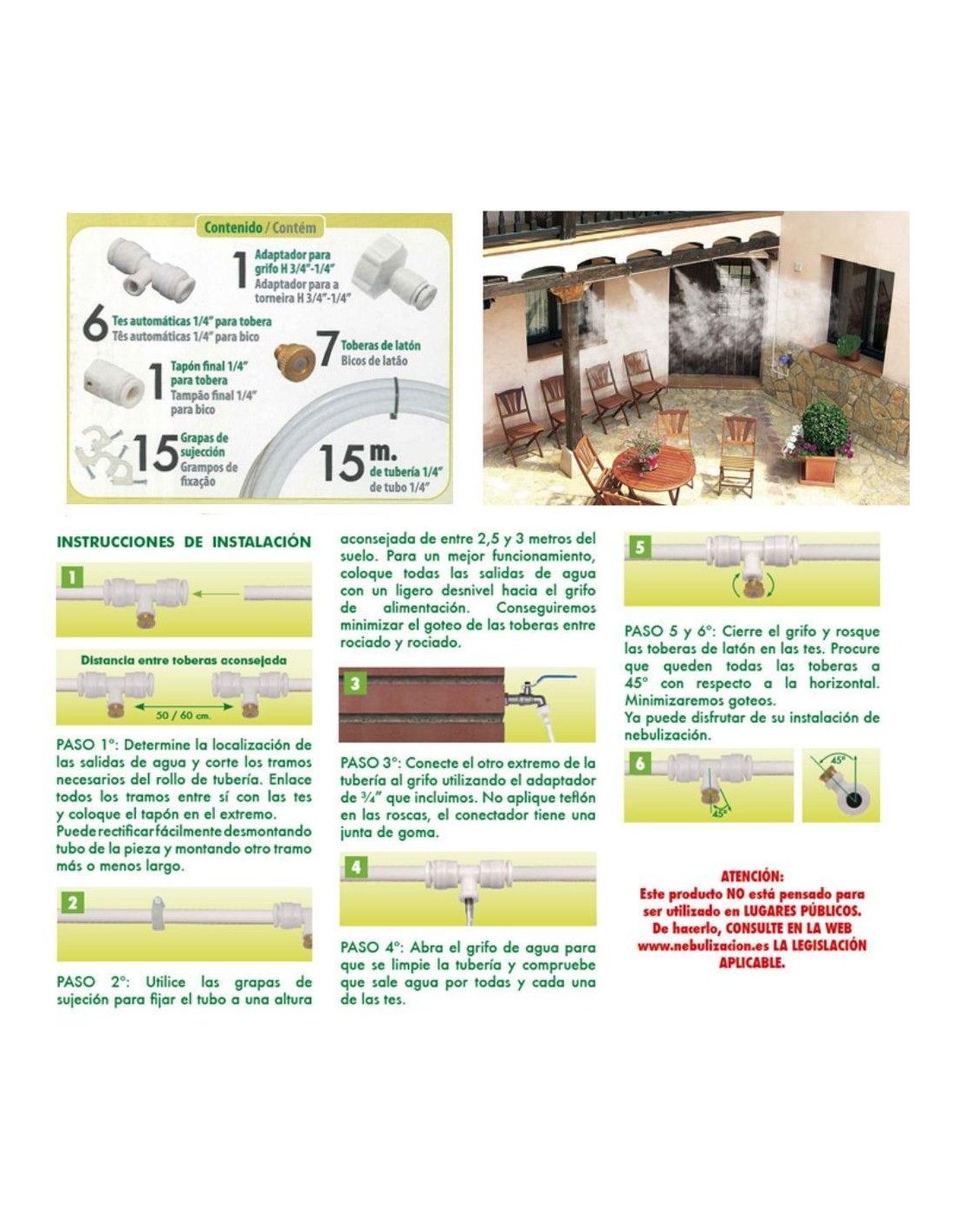

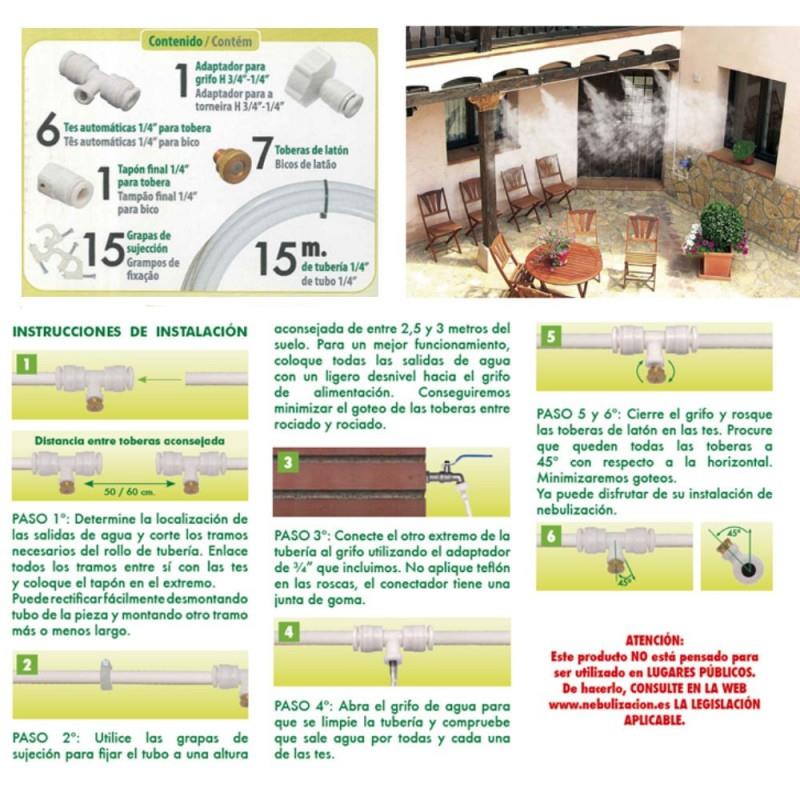

- For a better effect you should place the line of nebulization nozzles surrounding the area to be cooled. You will get a cooling curtain that will insulate the external heat from the refrigerated interior. First of all, mark the desired location for each nozzle and cut the tubing to length. We suggest a distance between the tees of between 50 and 60 cm. The maximum size of the installation depends on the pressure and flow provided by your water network.
- For a direct installation of the network, it is possible to install more than 70 nozzles but it will be testing how we can determine exactly how many we can install without reducing the quality of the spray. Expansion: you can expand the installation at will with the accessories that we put at your disposal. Filtration: to be reliable and durable, the nebulization system requires that the supply water does not contain impurities.
- If necessary, install a filtering system to prolong the useful life of this product. Maintenance: at the end of the season we recommend that you follow these instructions: Drain the water from the pipe. To do this, disconnect the tubing from the tap. Remove the misting nozzles and install them when the system needs to be used again. You can install the specific plugs as protection.

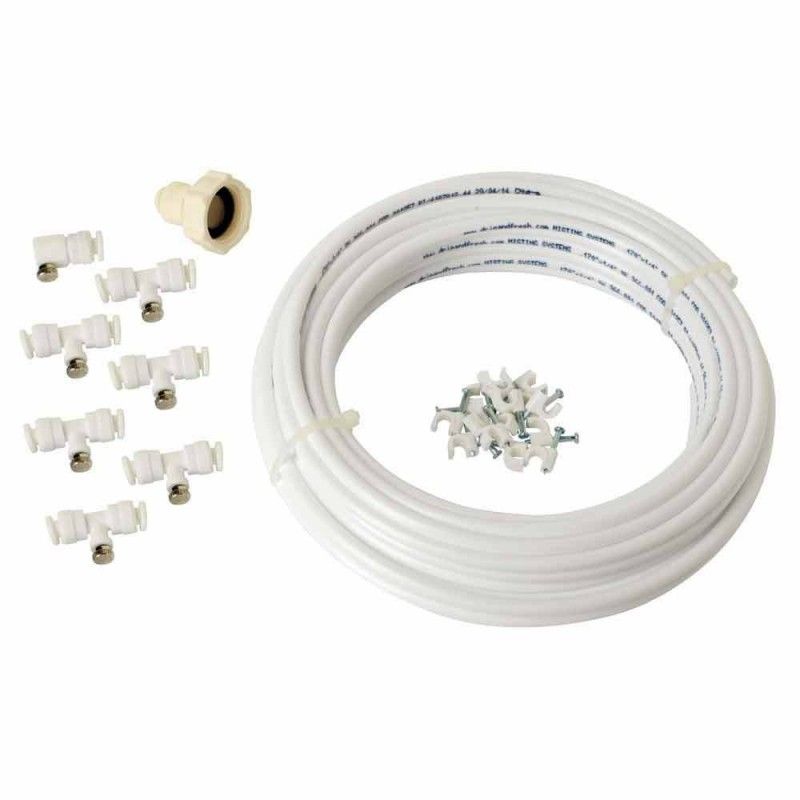

- If the nebulization nozzles become clogged, submerge them in a 12% hydrochloric acid solution (what is commercially known as strong water is generally 24% hydrochloric acid), 12%, for 30 minutes. Then rinse them with plenty of clean water. Content: 1 adapter for 3/4-1/4 tap, 6 1/4 automatic tees for nozzle, 7 brass nozzles, 1 1/4 end cap for nozzle, 15 clamps, 15 meters of 1/4 pipe .
