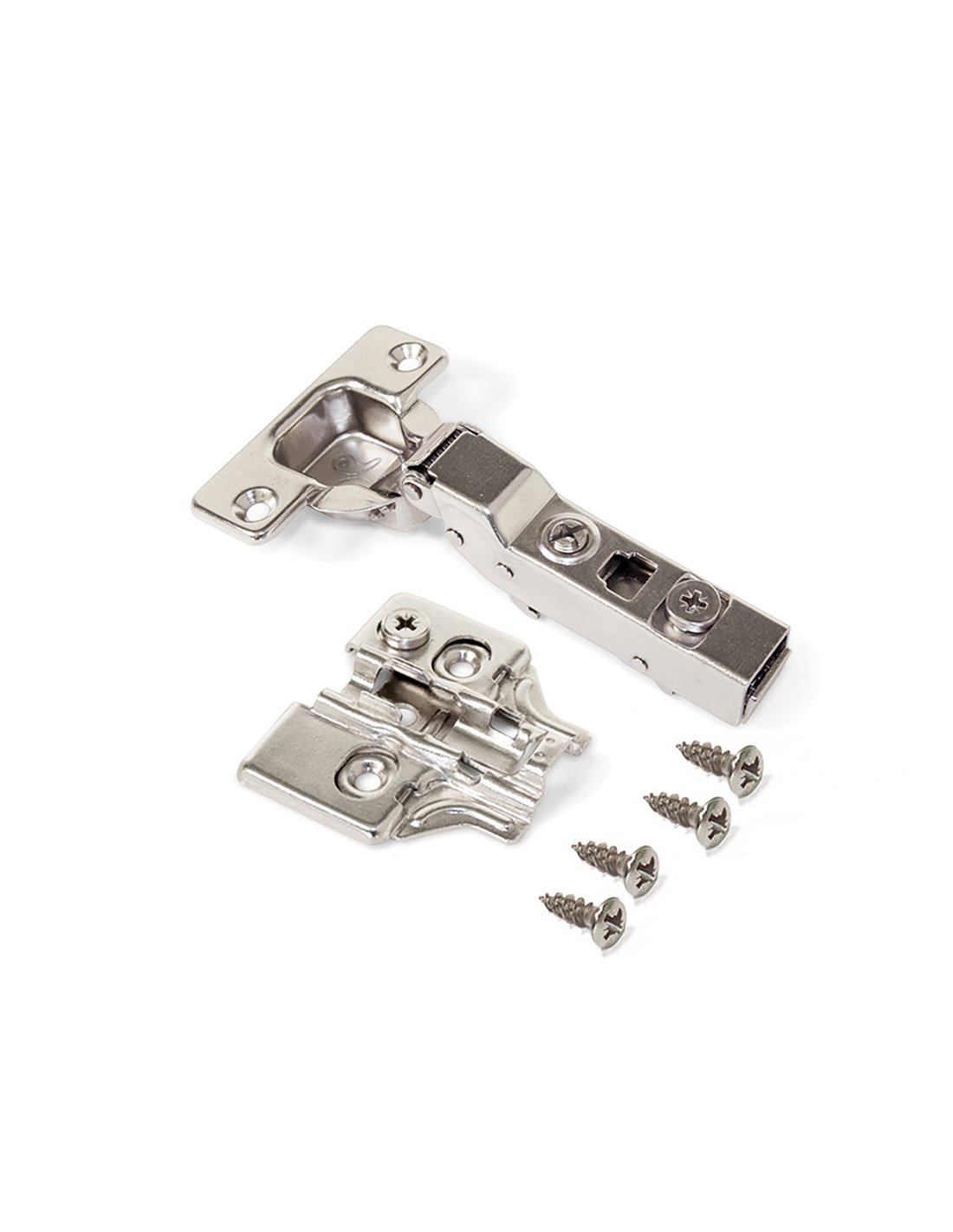

Emuca Lot of 20 X91N elbow hinges with supplements for screwing, Height 0, Steel, Nickel-plated

EMUCA 1011107
Available
€28.19
VAT included
  • X91N elbow hinge.
  • Screw fixing.
  • Cup with diameter of 35 mm.
  • 105º opening.
  • It is recommended to use the X91 and li>
  • Three-dimensionally adjustable.

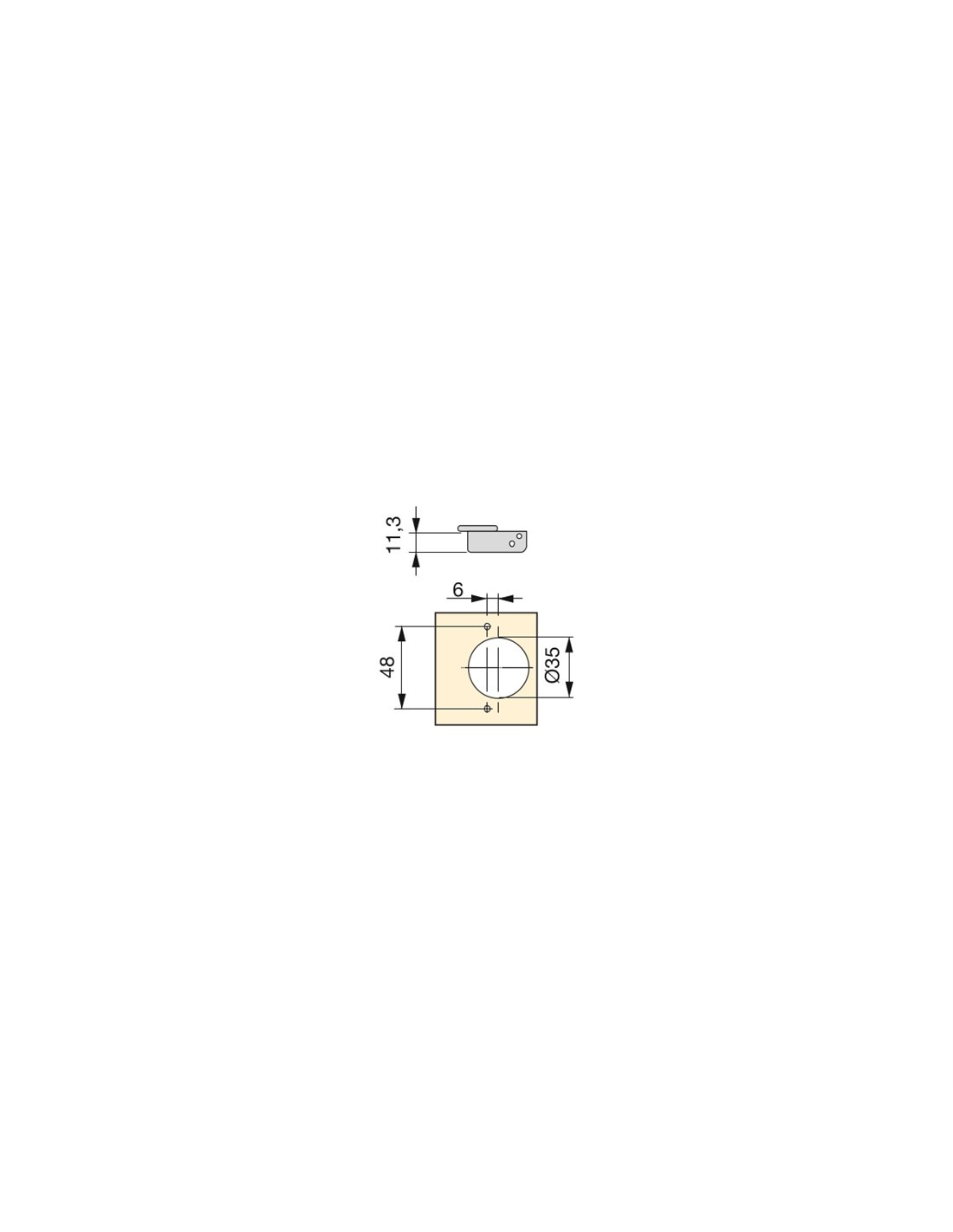

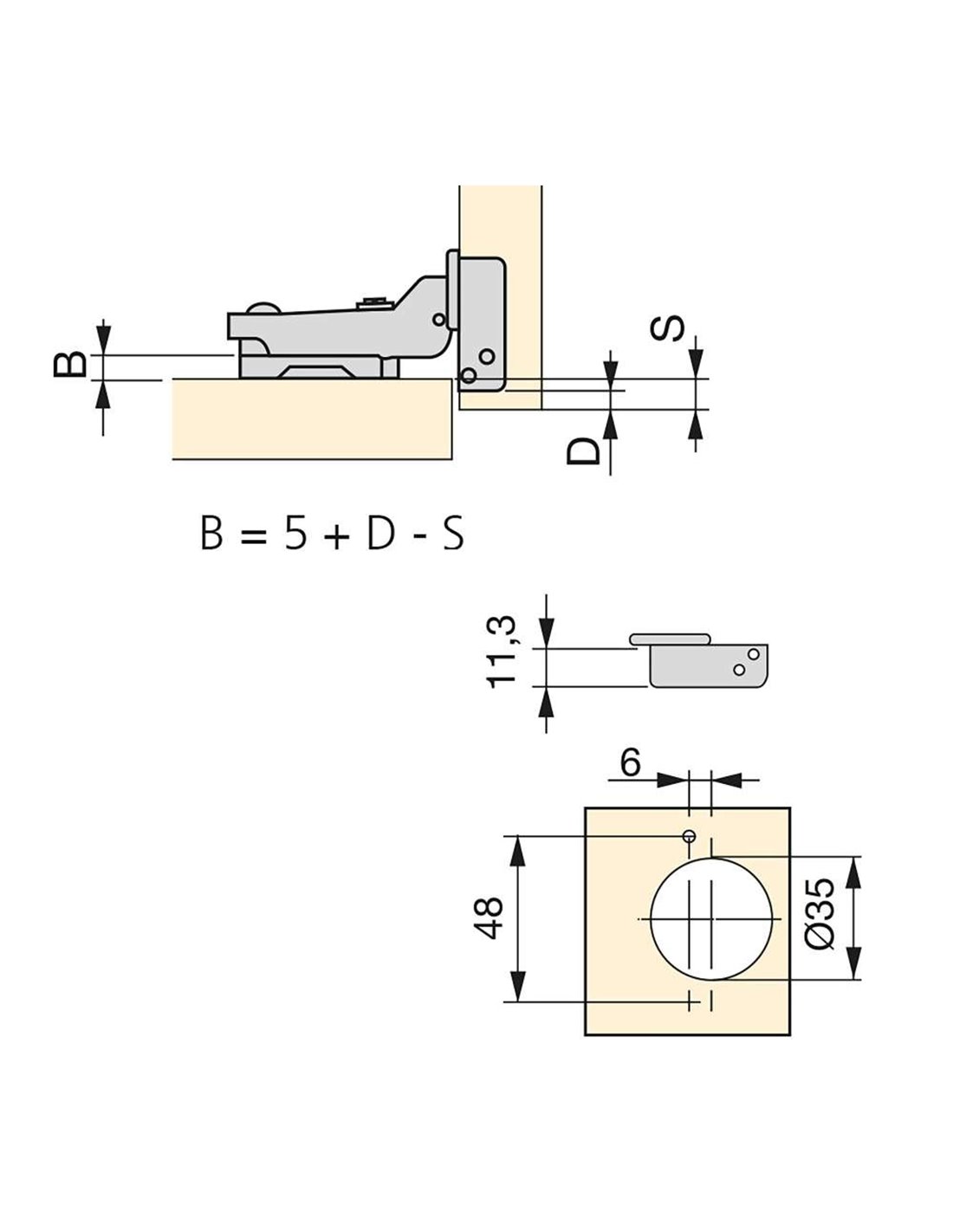

  • Drilling range of cup D = 3 ~ 7 mm.
  • Depth regulation by eccentric.
  • Spring both in closing and in opening.
  • Supplement/li>
  • Includes the screws necessary for assembly.
  • Made of nickel-plated steel.
7 Items

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

Description

Hinges for doors designed to equip your kitchen, cabinets, home, bathroom and office furniture with high quality at the best price. The main characteristic of the X91N hinges is that they are the same as the X91 but without a damping device, that is, they come with the traditional door closing spring. These hinges are used in conjunction with the X91 hinges on the same door to reduce the soft effect and overall cost. They are available in straight, elbow and super elbow versions with a door opening of 105º. For installation, they require a previous drill with a diameter of 35 mm for the bowl. And its fixation to the board is done using included screws. They are also distinguished by their easy installation thanks to the automatic clip mounting system from the hinge to the insert. In addition, both have an eccentric screw for quick and comfortable adjustment.

Product Details

High
10
Width
15
Colour
Niquelado
EAN
8432393003016
Manufacturer
EMUCA
Format
20 JG
Material
Steel
Measures
Codo
Weight (kg)
2
35
Depth
27
Reference
EMUCA 1011107
Safety warning
No
GPSR Safety warning
No
GPSR Manufacturer information
EMUCA / Spain / Camí Vell de Xirivella, 23, 46950 Xirivella, Valencia, España / [email protected] / +34 963136906
GPSR EU responsible person
EMUCA / Spain / Camí Vell de Xirivella, 23, 46950 Xirivella, Valencia, España / [email protected] / +34 963136906
GPSR e-mail manufacturer
[email protected]
