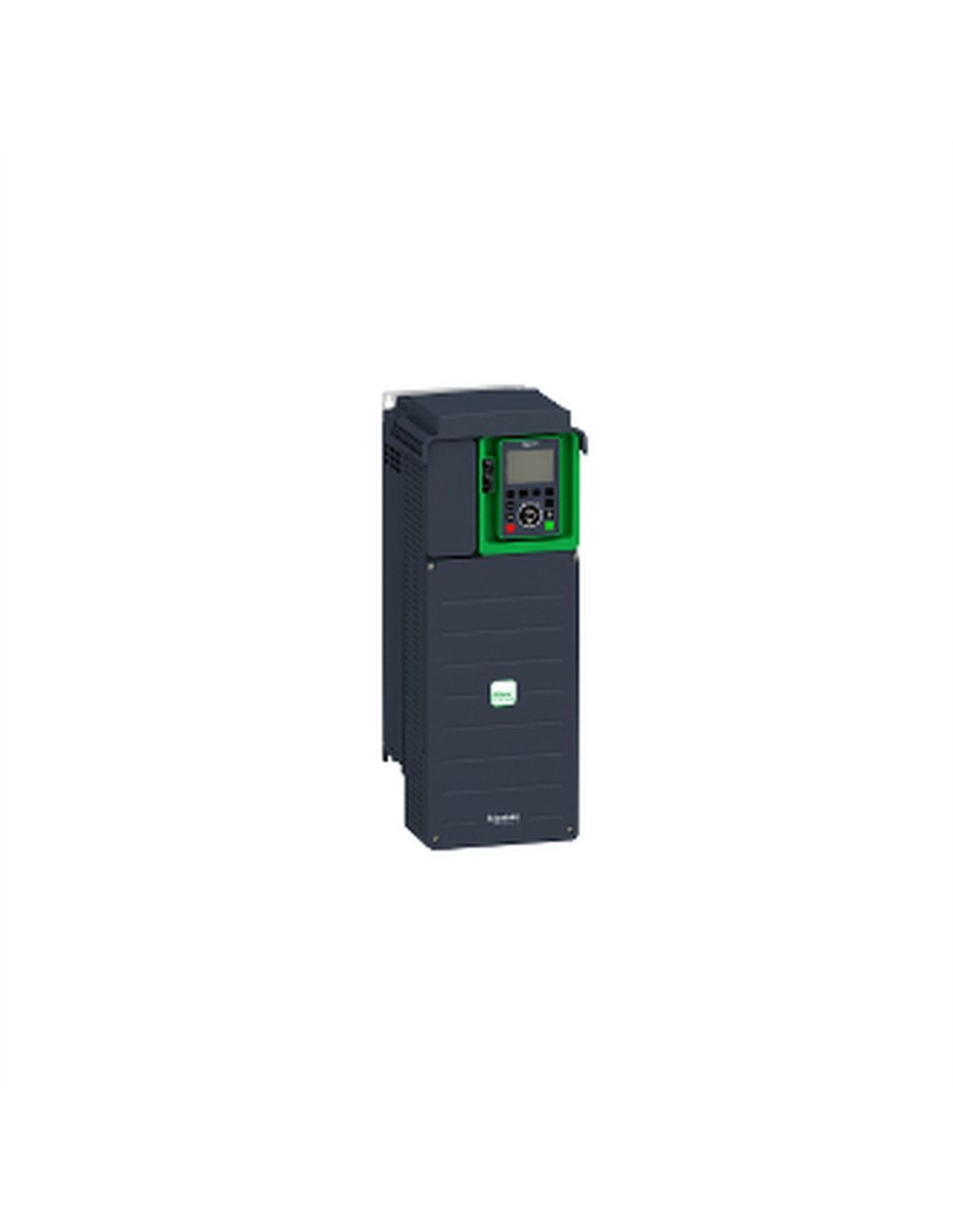

ALTIVAR 630 18.5 kW 400/480V IP21 variable speed drive for asynchronous and synchronous motors

IMPO ATV630D18N4
Available
€2,490.06
VAT included
The Altivar 630 18.5 kW variable frequency drive is designed for synchronous and asynchronous motors. With an IP21 protection rating, it supports voltages from 380 to 480 V. Ideal for industrial process and utility applications, it features multiple communication protocols.
6 Items

Order now and receive it...

11-05-2026  with  MRW

between 11-05-2026 and 12-05-2026  with  Correos

Description

The Altivar 630 18.5 kW 400/480V TRI is a variable frequency drive (VFD) from the Altivar Process ATV600 range, specifically designed for process and utility applications. This device, known as the ATV630, is ideal for synchronous and asynchronous motors, offering an efficient and versatile speed control solution for various industries.

With a rated output power of 18.5 kW and a supply voltage range of 380 to 480 V, the ATV630 adapts to different electrical configurations. Its IP21 protection rating ensures safe operation in industrial environments, while its forced cooling guarantees optimal performance even under demanding conditions.

Technical features include:

  • Line current: 33.4 A at 380 V and 28.9 A at 480 V.
  • Supply frequency: 50…60 Hz.
  • Communication protocol: Modbus TCP and Ethernet.
  • Clamping capacity: 50 m (C2) and 150 m (C3) according to EN/IEC 61800-3.
  • Output frequency range: 0.1…500 Hz.
  • Safety function: STO (Safe Torque Off) SIL 3.
  • Operating temperature: -15…60 °C.
  • Mounting Wall-mounted, with dimensions of 211 mm x 546 mm x 232 mm and a weight of 14.2 kg. Vibration and shock resistance according to IEC 60068. Certifications: UL, CE, ATEX, among others.

Product Details

EAN
3606480701399
Manufacturer
SCHNEIDER
Reference
SCHNEIDER ATV630D18N4
GPSR Safety warning
No
GPSR Manufacturer information
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer
[email protected]
