Perfil Linergy LGYE 2.500A, l2.000mm
Perfil Linergy LGYE 2.500A, l2.000mm
Perfil Linergy LGYE 2.500A, l2.000mm
Perfil Linergy LGYE 2.500A, l2.000mm

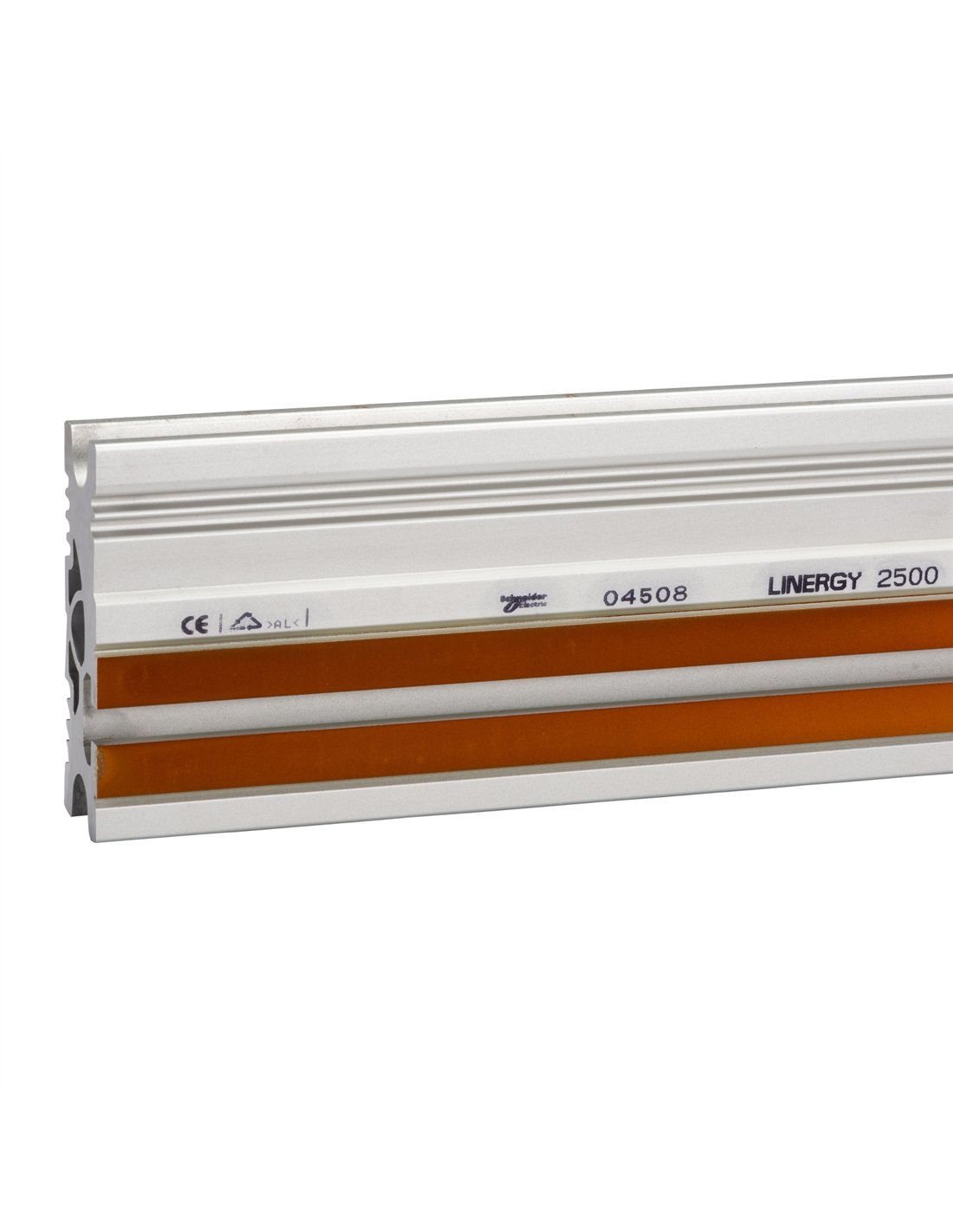

Linergy LGYE 2500A busbar profile, 2000mm length, horizontal installation, IP31

IMPO LVS04566
Out of stock
€527.58
VAT included
The Linergy LGYE 2,500A x 2,000mm profile is designed for the horizontal installation of busbars. Its structure guarantees optimal performance, supporting up to 4,000A under demanding operating conditions. This component is compatible with various cabinet configurations, ensuring versatility and efficiency in electrical systems.

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

Description

The Linergy LGYE 2,500A and 2,000mm profile is an advanced solution for electrical distribution systems, designed for horizontal installations. This busbar profile stands out for its ability to withstand high currents, guaranteeing optimal performance in various industrial applications.

  • Range: Linergy
  • Product type: Busbar profile
  • Rated operating current: 2500 A
  • Permissible temporary current: up to 100 kA (1 s) for 4 supports
  • Rated insulation voltage: 1000 V
  • Peak voltage withstand: 12 kV (pollution degree: 3)

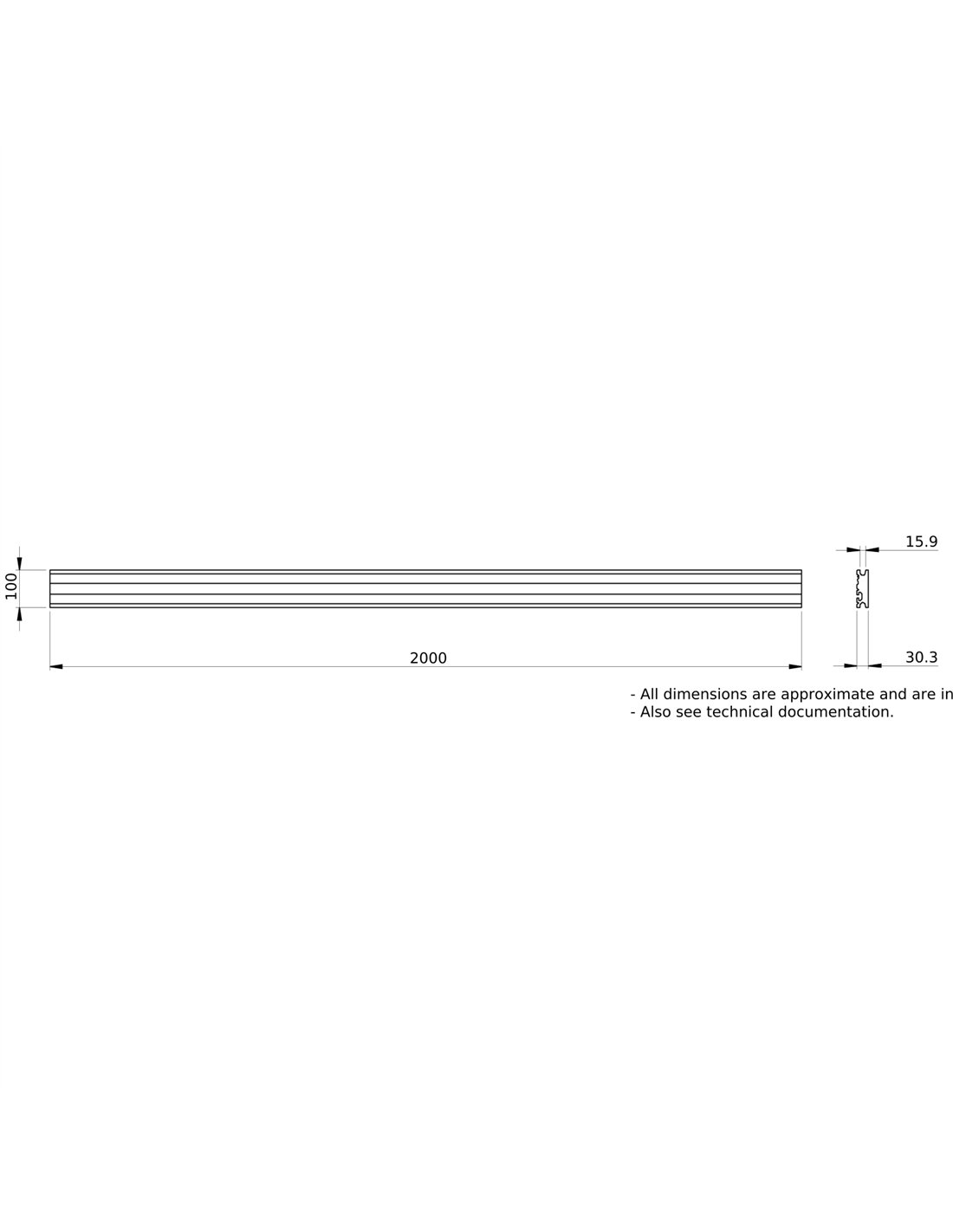

  • Profile length: 2000 mm
  • Width: 100 mm
  • Depth: 31 mm
  • Weight: 9.25 kg
  • Standards: IEC 61439-1, IEC 61439-2
  • Certifications: ASTA

Product Details

EAN
3606481870605
Reference
IMPO LVS04566
GPSR Safety warning
No
GPSR Manufacturer information
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer
[email protected]
