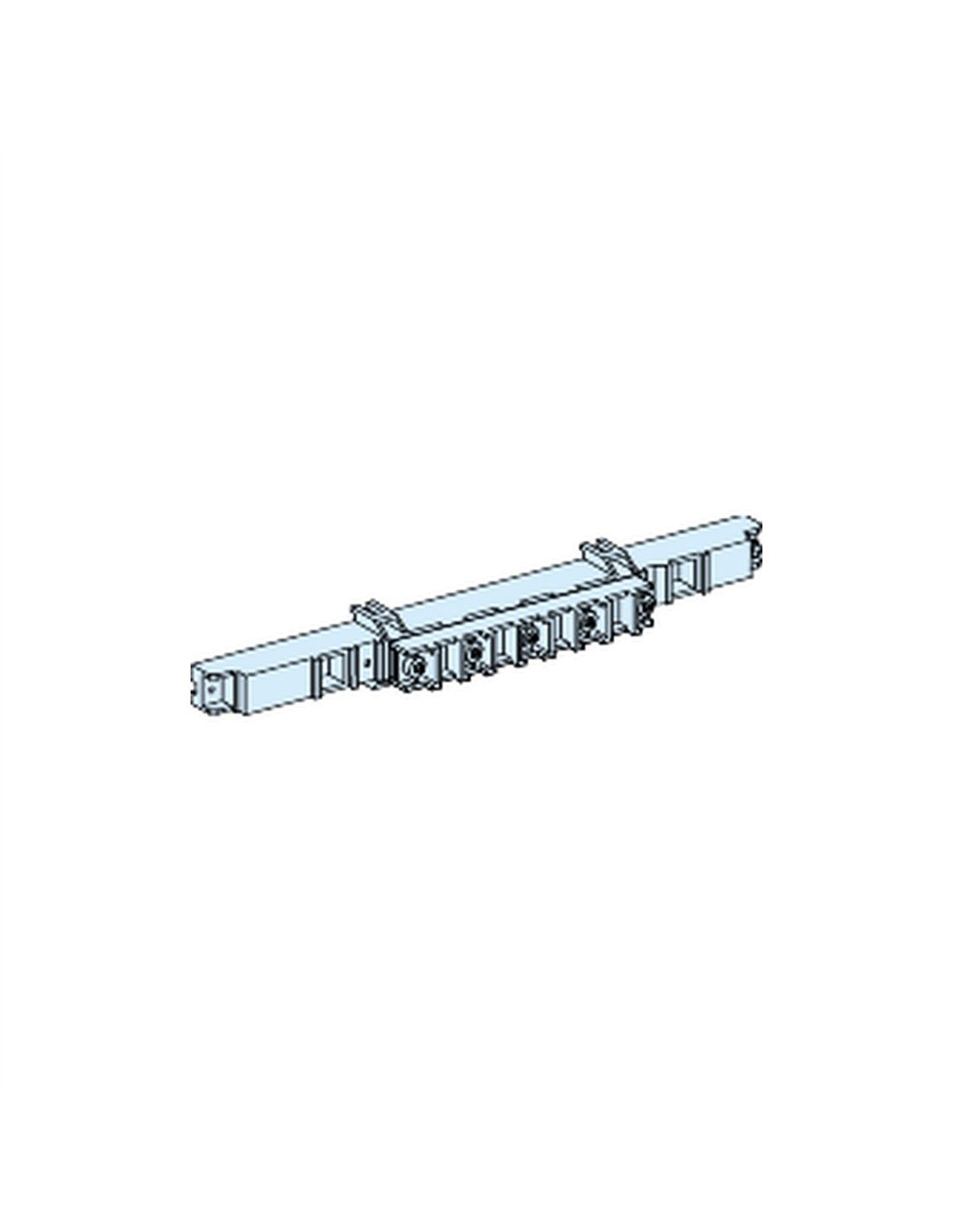

LINERGY 630A busbar support, 32 x 8 mm section, for Prisma P and G cabinets

IMPO LGY4193
Available
€97.72
VAT included
The Linergy 630A busbar support, with a 32 x 8 mm cross-section, is designed for Prisma P and G enclosures. Its robustness and compatibility ensure an efficient and safe electrical connection, complying with IEC 61439-1 and IEC 61439-2 standards, making it suitable for demanding industrial environments.
100 Items

Order now and receive it...

01-05-2026  with  MRW

between 01-05-2026 and 04-05-2026  with  Correos

Description

The Linergy range 630A busbar support is designed to offer a robust and efficient solution in electrical distribution. This component is compatible with Linergy BS busbars and integrates seamlessly into Prisma P and Prisma G enclosures, ensuring a safe and reliable installation.

  • Range: Linergy
  • Product Type: Busbar Support
  • Product Name: Linergy BS
  • Compatibility: Linergy BS busbar, Prisma P and G enclosures
  • Permissible Current: 630 A
  • Busbar Section: 32 x 8 mm
  • Permissible Temporary Current [Icw]: 15 kA at 450 mm between fixing centers
  • Permissible Temporary Current [Icw]: 20 kA at 300 mm between fixing centers
  • Permissible Temporary Current [Icw]: 25 kA at 225 mm between fixing centers
  • Permissible temporary current [Icw]: 30 kA at 225 mm between fixing centers
  • Permissible temporary current [Icw]: 35 kA at 175 mm between fixing centers
  • Quantity per set: 1
  • Standards: IEC 61439-1, IEC 61439-2
  • Product certifications: ASEFA

Product Details

EAN
3606485432397
Reference
IMPO LGY4193
