Linergy BS Escalonado 400A,4 Polos
Linergy BS Escalonado 400A,4 Polos

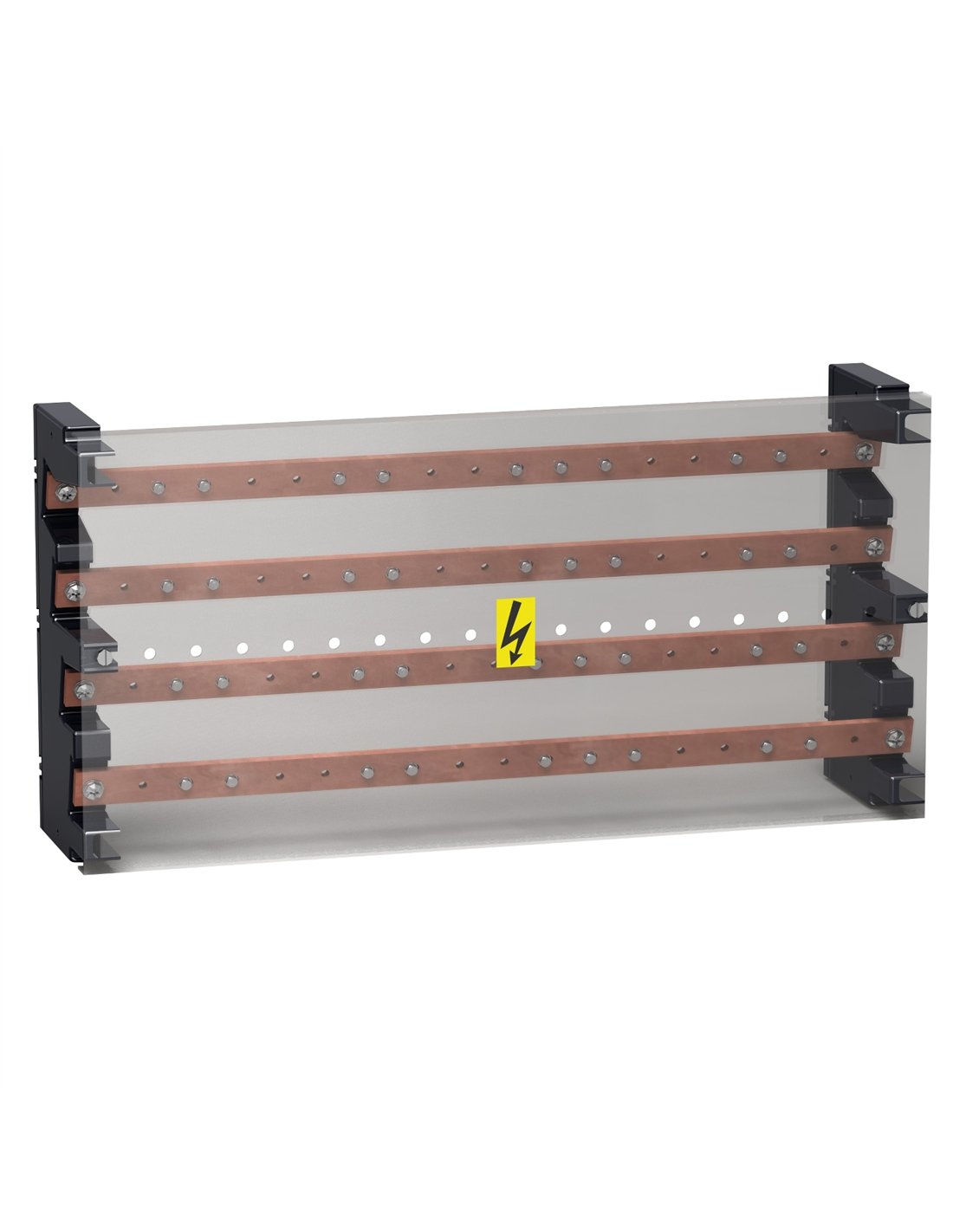

LINERGY BS 4P 400A stepped distribution unit with 32 x 5 mm busbar and 52 connections

IMPO LVS04054
Available
€418.09
VAT included
The Linergy BS 4-pole, 400 A stepped distribution block is designed to optimize electrical management. With 32 x 5 mm copper busbars and a capacity of up to 4000 A, it offers efficient and safe connections in a variety of industrial applications.
100 Items

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

Description

The Linergy BS stepped distribution unit is a distribution block designed to offer an efficient solution in electrical systems. With a rated current of 400 A and a 4-pole configuration, this device is suitable for various industrial and commercial applications, guaranteeing optimal and safe performance.

  • Range: Linergy
  • Product type: 400 A multi-level distribution board
  • Compatibility: Spacial and PrismaSeT cabinets
  • Protection rating: IPxx B
  • Rated operating voltage: 440 V AC
  • Rated insulation voltage: 750 V AC
  • Peak voltage withstand: 8 kV
  • Permissible temporary inrush current: 20 kA for 1 s
  • Bus bar cross-section: 32 x 5 mm
  • Dimensions: 235 mm (height) x 470 mm (width) x 115 mm (depth)
  • Weight: 4.2 kg
  • Standards: IEC 61439-1 and IEC 61439-2
  • Certification: ASTA

Product Details

EAN
3606481870933
Reference
IMPO LVS04054
GPSR Safety warning
No
GPSR Manufacturer information
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer
[email protected]
100 Items

Reviews (0)

No reviews
