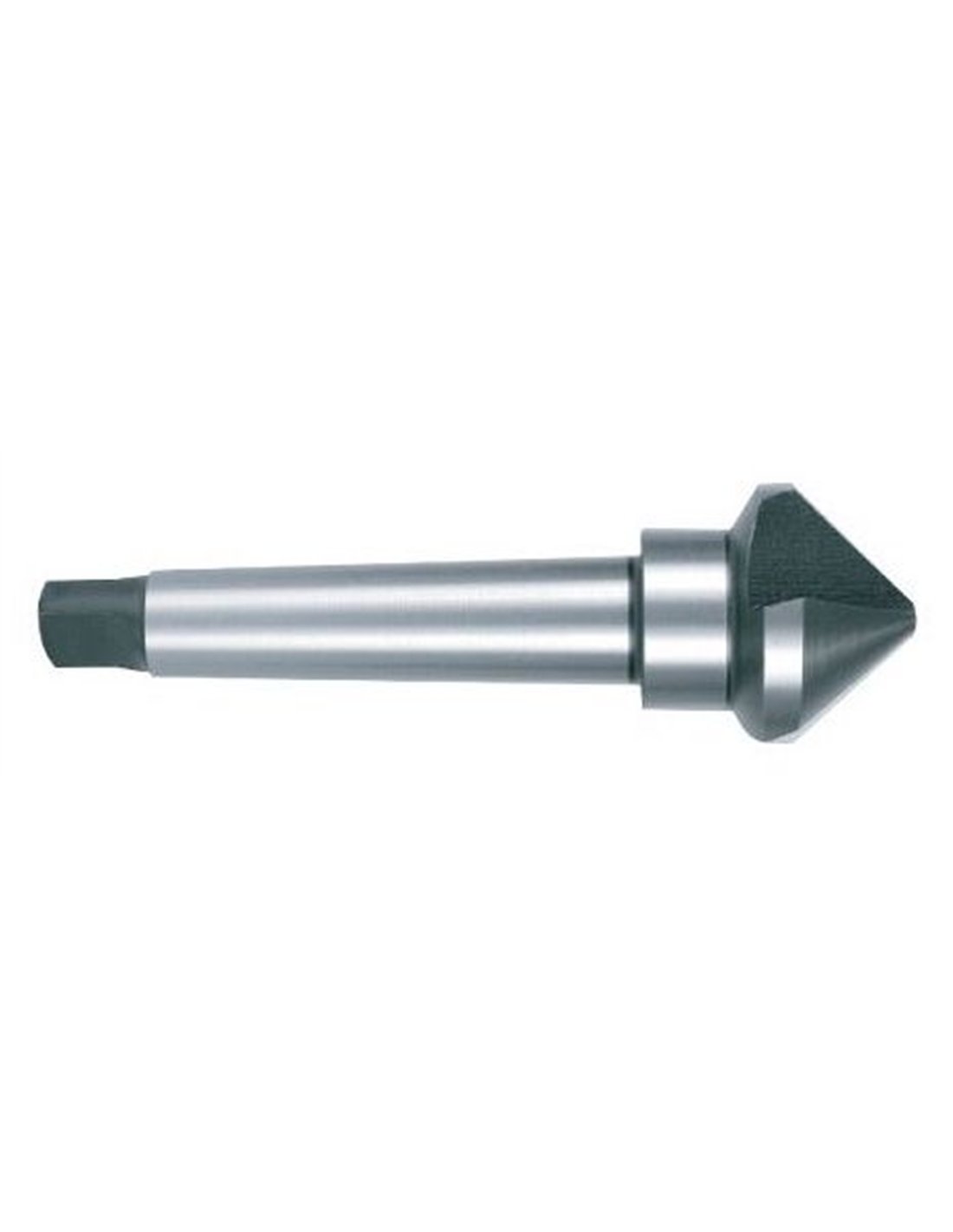

RUKO HSS 90º conical countersink Ø max. 63 mm DIN 335 form C

The Ruko-102140 is a high-precision tapered countersink, designed according to DIN 335, with a 90° countersinking angle and a maximum diameter of 63 mm. This tool features a split-point cutting edge compliant with DIN 1412 C, allowing for a more efficient and precise start. Its 118° cutting angle and 20/30° taper angle ensure optimal performance in a variety of applications.

CBN (Cubic Boron Nitride) grinding and the ingenious chip flute design minimize noise, vibration, and burr formation, guaranteeing a clean and professional finish. This countersink is ideal for working with non-ferrous metals, steel, thermoplastics, and hard plastics, as well as sheet metal up to 4 mm thick.

• Cutting point with split point DIN 1412 C
• Cutting angle: 118º
• Cone angle: 20/30º
• Right-hand cutting
• CBN ground for efficient cutting
• Optimized chip ejection channel design
• Suitable for non-ferrous metals, steel, and hard plastics
• Metal cutting capacity up to 4 mm thick
• Morse taper shank
• 3 cutting edges
