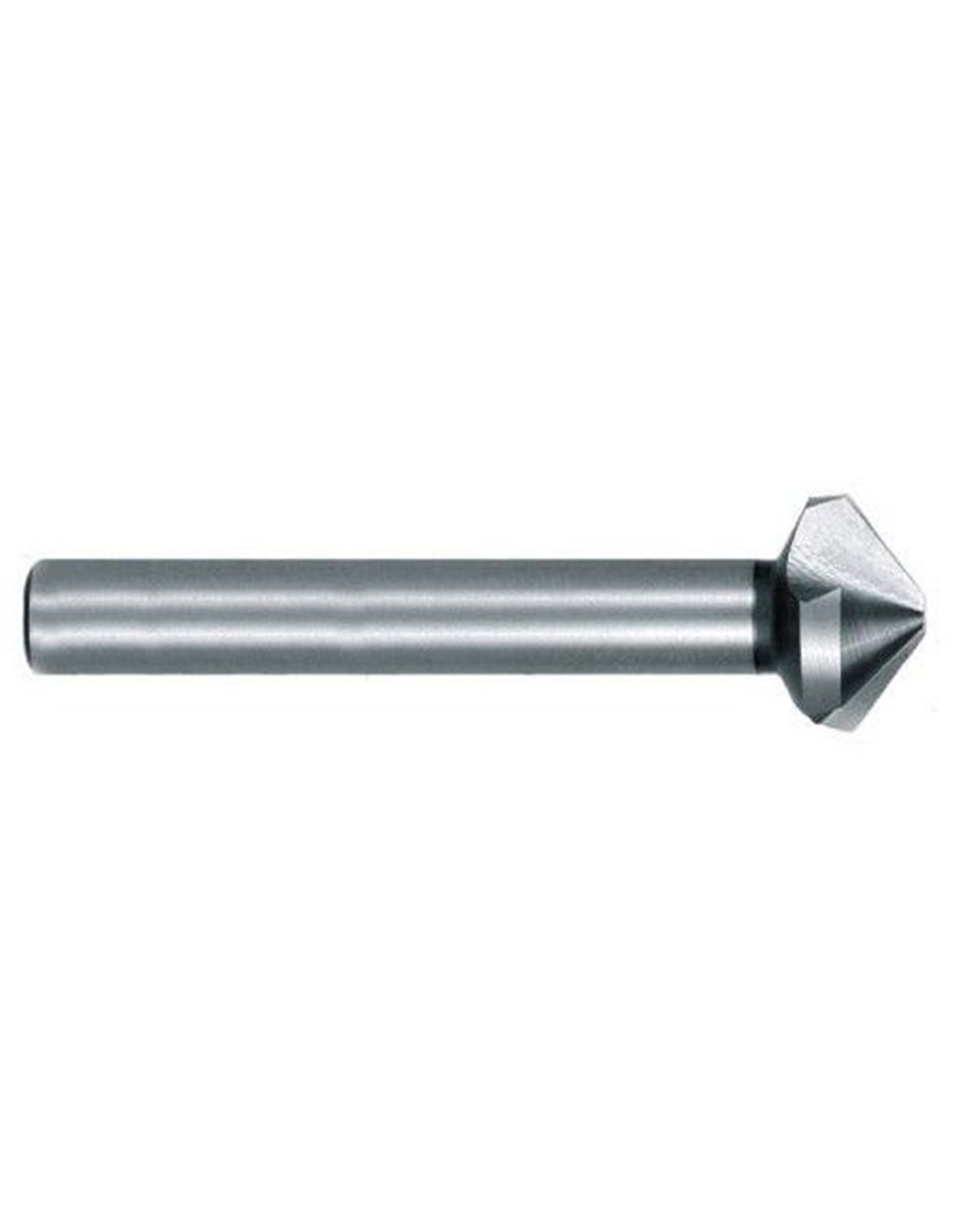

RUKO carbide K20 conical countersink Ø max. 8.3 mm DIN 335 form C 90º

The Ruko-102262 tapered countersink is a high-precision tool designed to deliver exceptional performance when countersinking various materials. Made of K20 carbide, this countersink features a split point cutting edge according to DIN 1412 C, allowing for a more efficient and precise start. Its 118° cutting angle and 20/30° taper angle ensure an optimal finish in every application.

The innovative CBN grinding design, along with the chip evacuation channels, minimizes noise and vibration, guaranteeing a clean, burr-free cut. This countersink is ideal for working with non-ferrous metals, steel, thermoplastics, and hard plastics, as well as sheet metal up to 4 mm thick.

• Material: K20 Carbide
• Cutting point: Split point DIN 1412 C
• Cutting angle: 118º
• Cone angle: 20/30º
• Cutting direction: Right-hand
• Countersink angle: 90º
• Shank: Cylindrical
• Cutting edges: 3
• Case: Plastic translucent with hanger
• Applications: Non-ferrous metals, steel, thermoplastics and hard plastics
