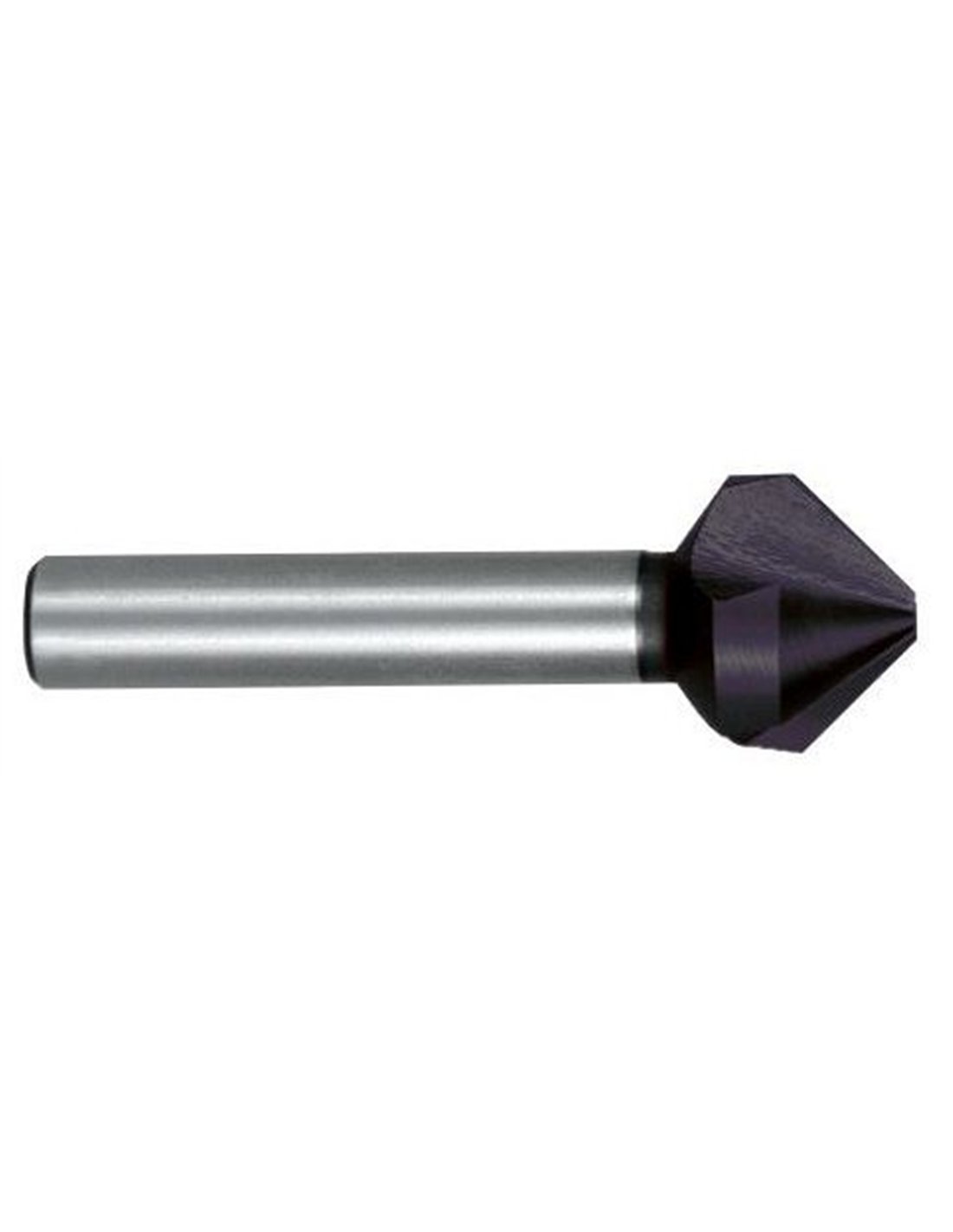

RUKO HSS-TiAIN conical countersink Ø max. 25 mm, DIN 335 form C 90º

The Ruko-102123F tapered countersink is a high-precision tool designed to deliver exceptional performance when machining a variety of materials. Made of high-speed steel (HSS) with a special black titanium nitride coating, this countersink allows for superior quality cuts without the need for coolant. Its innovative design includes a split-point cutting edge according to DIN 1412 C, which optimizes material penetration, while the 118° cutting angle and 20/30° taper angle ensure a clean and precise finish. Thanks to CBN grinding and chip evacuation channels, noise, vibration, and burrs are minimized during the cutting process.

This countersink is ideal for working with non-ferrous metals, steel, thermoplastics, and hard plastics, as well as sheet metal up to 4 mm thick.

• Material: HSS-TiAIN
• Cutting point: Split point DIN 1412 C
• Cutting angle: 118º
• Cone angle: 20/30º
• Cutting direction: Right-hand
• Grinding: CBN
• Flute design: Optimized for chip evacuation
• Compatible materials: Non-ferrous metals, steel, thermoplastics, hard plastics
• Maximum sheet thickness: 4 mm
• Case: Translucent plastic with hanger
