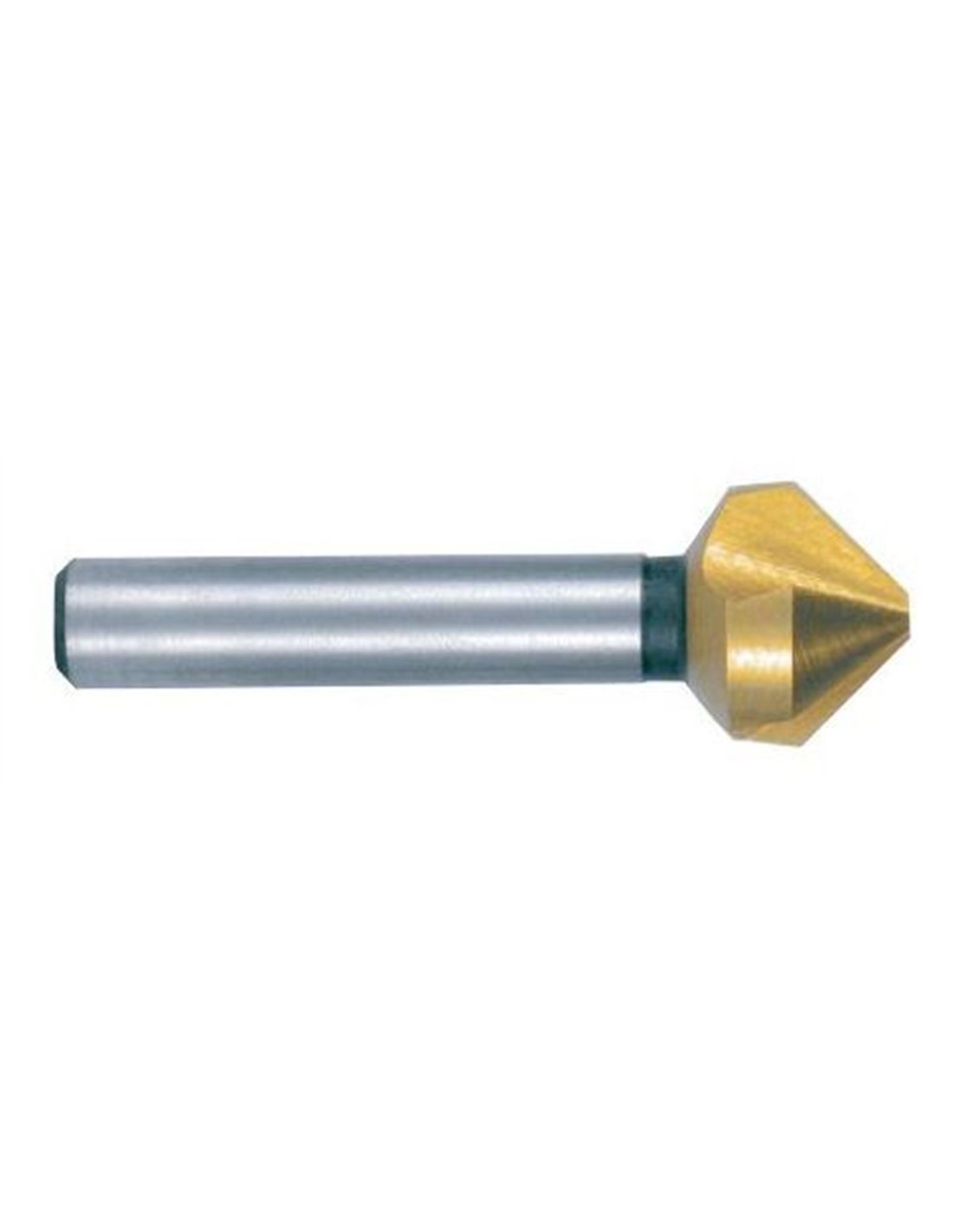

RUKO HSS-TiN 90º conical countersink Ø max. 31 mm DIN 335 form C

The Ruko-102125T DIN 335 Form C 90° HSS-TiN Countersink is a high-precision tool designed to deliver exceptional performance when countersinking various materials. Made of high-speed steel (HSS) and coated with titanium nitride (TiN), this countersink ensures superior durability and wear resistance. Its DIN 1412 C split point and 118° cutting angle allow for efficient cutting starts, while the 20/30° taper angle ensures a clean, professional finish.

The innovative CBN grinding design and chip evacuation channels optimize the cutting process, minimizing noise, vibration, and burr formation. This countersink is suitable for working with non-ferrous metals, steel, thermoplastics, and hard plastics, as well as sheet metal up to 4 mm thick.

• Material: HSS-TiN
• Cutting point: Split point DIN 1412 C
• Cutting angle: 118º
• Cone angle: 20/30º
• Cutting direction: Right-hand
• Chip flute design: Optimized
• Applications: Non-ferrous metals, steel, thermoplastics, hard plastics
• Maximum sheet thickness: 4 mm
• Case: Translucent plastic with hanger
• Handle: Cylindrical
