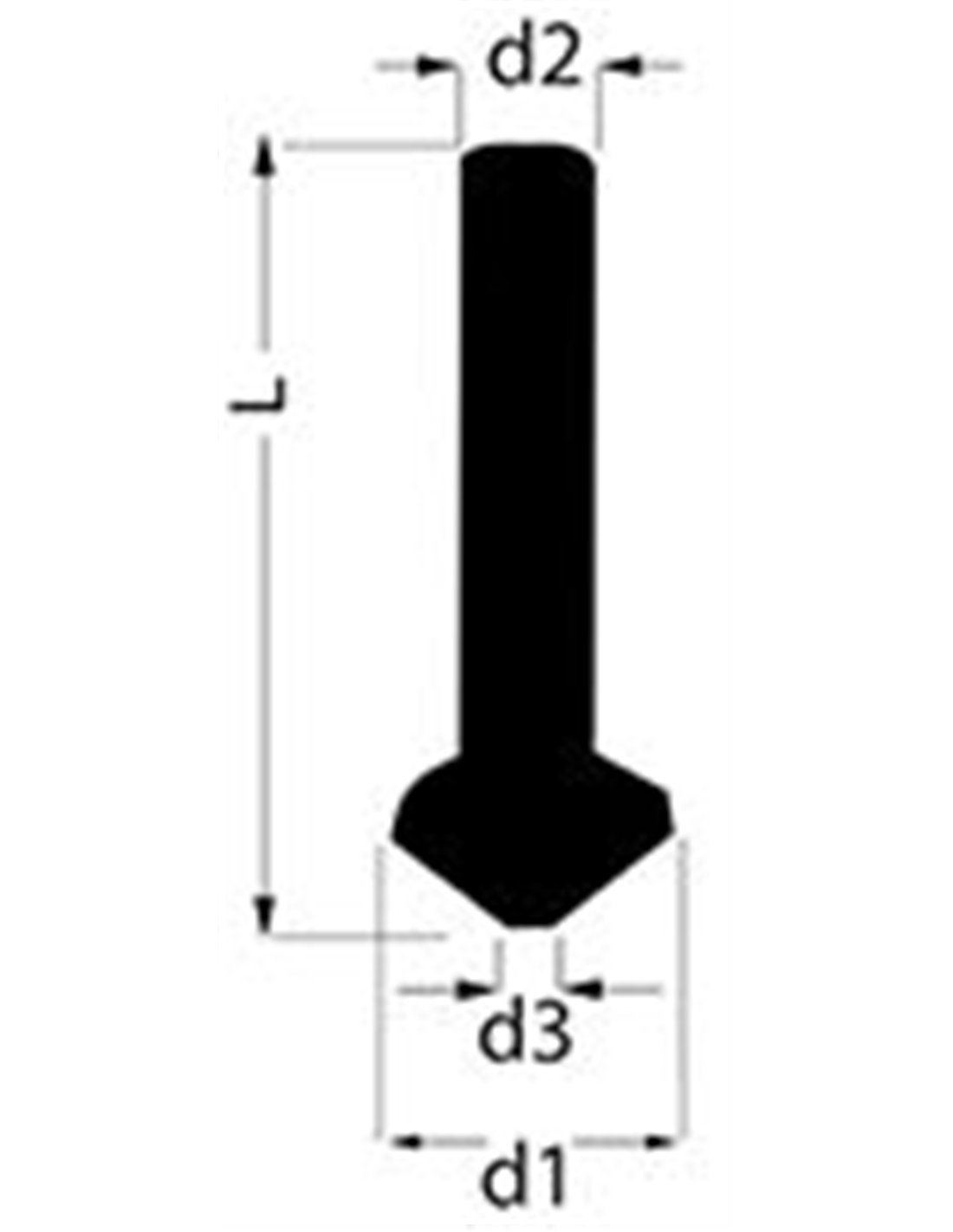

RUKO HSS 90º conical countersink Ø max. 16.5 mm DIN 335 form C

The Ruko-102119-1 tapered countersink is a high-precision tool designed to deliver efficient and clean cuts in a variety of materials. Featuring a cutting point incorporating DIN 1412 C split point technology and a 118° cutting angle, this countersink ensures superior performance. Its 20/30° taper angle and right-hand cutting design allow for smooth and controlled penetration into the material, minimizing the risk of vibration and noise during use.

CBN grinding and optimized chip evacuation channels ensure burr-free cutting, making it an ideal choice for working with non-ferrous metals, steel, thermoplastics and hard plastics, as well as sheet metal up to 4 mm thick.

• Cutting point with split point DIN 1412 C
• Cutting angle: 118º
• Cone angle: 20/30º
• Right-hand cutting
• CBN ground for optimal cutting
• Chip ejection channel design
• Suitable for non-ferrous metals, steel, and hard plastics
• Metal cutting capacity up to 4 mm thick
• Countersink angle: 90º
• Cylindrical shank with 3 cutting edges
