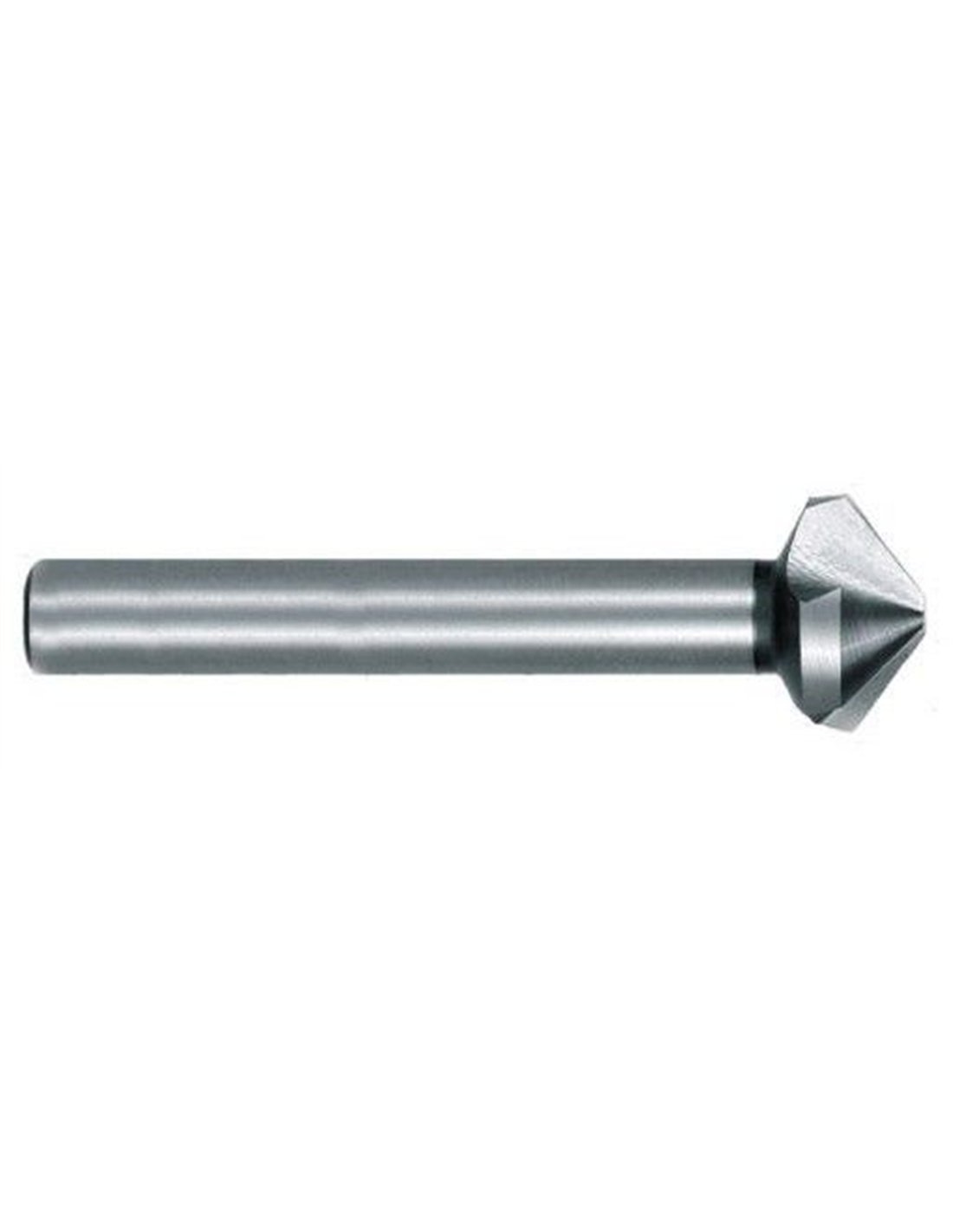

RUKO HSS 90º conical countersink Ø max. 16.5 mm shank 8 mm DIN 335

The Ruko-102119 is a high-precision countersink, designed according to DIN 335, offering a 90° countersinking angle and an 8 mm shank. This tool is ideal for countersinking a wide variety of materials, including steel, cast iron, light metals, and non-ferrous metals. Its innovative design and high-speed steel (HSS) construction guarantee exceptional performance and a long service life.

The DIN 1412 C split point and 118° cutting angle allow for a smooth and efficient start, while the 20/30° taper angle ensures a clean cut.

• Cutting point with split point DIN 1412 C
• Cutting angle: 118º
• Cone angle: 20/30º
• Right-hand cutting
• CBN grinding for a clean cut
• Chip evacuation channel design
• Suitable for non-ferrous metals, steel, and hard plastics
• Cutting capacity in sheet metal up to 4 mm thick
• Translucent plastic case with hanger included
• Cylindrical shank with 3 cutting edges
